F400 K1 A2 (F400) - Honda Tiller, Made in Japan (SN: F400-2100001 - F400-9999999) WHEEL + FENDER Parts Diagram

Tiller, Made in Japan

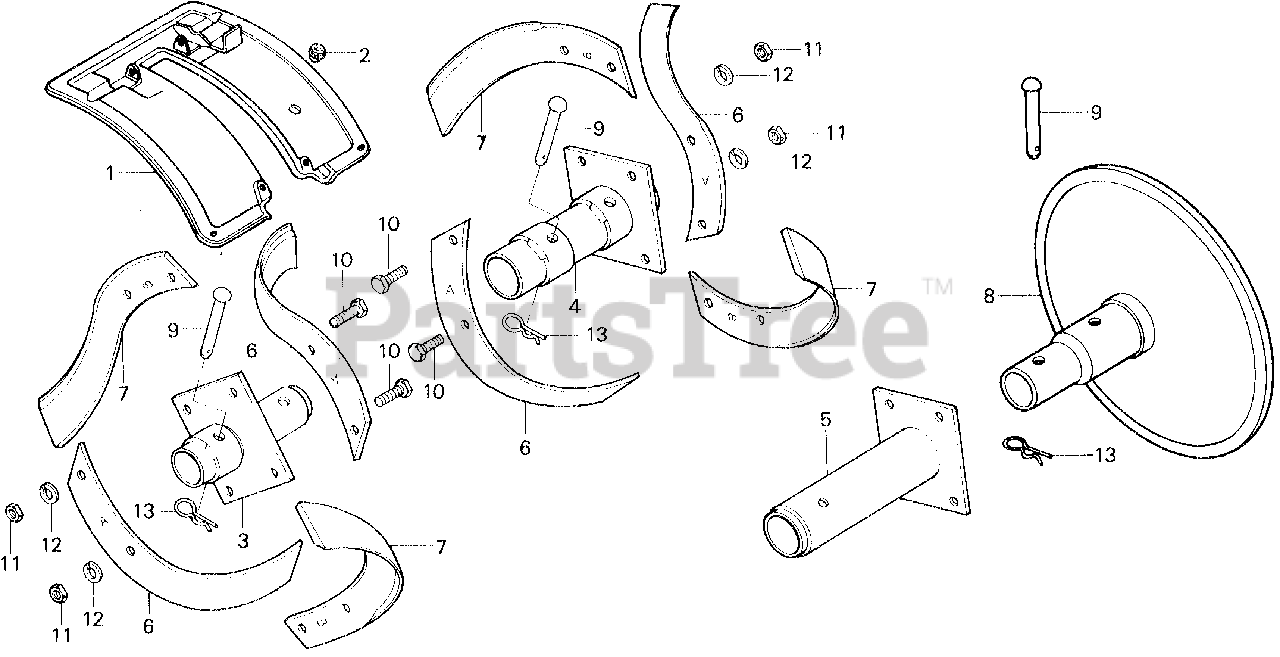

WHEEL + FENDER Parts Diagram

  • Title

1

Honda 61110-723-000XC

FENDER, MAIN *NH31* (MCKINLEY WHITE)

$

$

Not available

2

Honda 61112-715-000

STOPPER, TENSIONER ARM

$

$

Not available

3

Honda 72110-723-670

PIPE (INNER)

$

$

Currently unavailable

4

Honda 72120-723-671

PIPE (OUTER) (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 72130-733-760

SEE PART DETAILS - PRI; PIPE, EXTENSION

Note: Use from Frame SN 2149606.

$112.99

$

Usually ships in 3-6 days

0

6

Honda 72461-733-750

SEE PART DETAILS - PRI; TINE A, ROTARY

Note: Use up to Frame SN 2149605.

$23.99

$

In Stock, Qty 15

0

6

Honda 72461-733-750

SEE PART DETAILS - PRI; TINE A, ROTARY

Note: Use from Frame SN 2149606.

$23.99

$

In Stock, Qty 15

0

7

Honda 72465-733-750

TINE B, ROTARY

Note: Use up to Frame SN 2149605.

$23.99

$

In Stock, Qty 19

0

7

Honda 72465-733-750

TINE B, ROTARY

Note: Use from Frame SN 2149606.

$23.99

$

In Stock, Qty 19

0

8

Honda 72470-723-660

DISK, SIDE Use up to Frame SN 2149605.

$

$

Currently unavailable

9

Honda 90757-723-670

PIN (10X53.5)

Note: Use up to Frame SN 2149605.

$5.49

$

In Stock, Qty 5

0

9

Honda 90757-723-670

PIN (10X53.5)

Note: Use from Frame SN 2149606.

$5.49

$

In Stock, Qty 5

0

10

Honda 92000-10025-0A

SEE PART DETAILS - SUP; BOLT, HEX. (10X25)
(Superseded to 92101-10025-0A)

Note: Use up to Frame SN 2149605.

$3.49

$

Usually ships in 3-6 days

0

10

Honda 92000-10025-0A

SEE PART DETAILS - SUP; BOLT, HEX. (10X25)
(Superseded to 92101-10025-0A)

Note: Use from Frame SN 2149606.

$3.49

$

Usually ships in 3-6 days

0

10

Honda 92101-10025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (10X25)

Note: Use up to Frame SN 2149605.

$3.49

$

Usually ships in 3-6 days

0

10

Honda 92101-10025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (10X25)

Note: Use from Frame SN 2149606.

$3.49

$

Usually ships in 3-6 days

0

11

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

Note: Use up to Frame SN 2149605.

$2.49

$

Usually ships in 3-6 days

0

11

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

Note: Use from Frame SN 2149606.

$2.49

$

Usually ships in 3-6 days

0

12

Honda 94111-10000

WASHER, SPRING (8MM)

Note: Use up to Frame SN 2149605.

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94111-10000

WASHER, SPRING (8MM)

Note: Use from Frame SN 2149606.

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94252-10000

PIN, LOCK (10MM)

Note: Use up to Frame SN 2149605.

$1.99

$

In Stock, Qty 20+

0

13

Honda 94252-10000

PIN, LOCK (10MM)

Note: Use from Frame SN 2149606.

$1.99

$

In Stock, Qty 20+

0

13

Honda 94252-10000

PIN, LOCK (10MM) Use from Frame SN 2149606 to 2149605.

$1.99

$

In Stock, Qty 20+

0
