F400 K1 A2 (F400) - Honda Tiller, Made in Japan (SN: F400-2100001 - F400-9999999) WHEEL SHAFT + FINAL CHAIN Parts Diagram

Tiller, Made in Japan

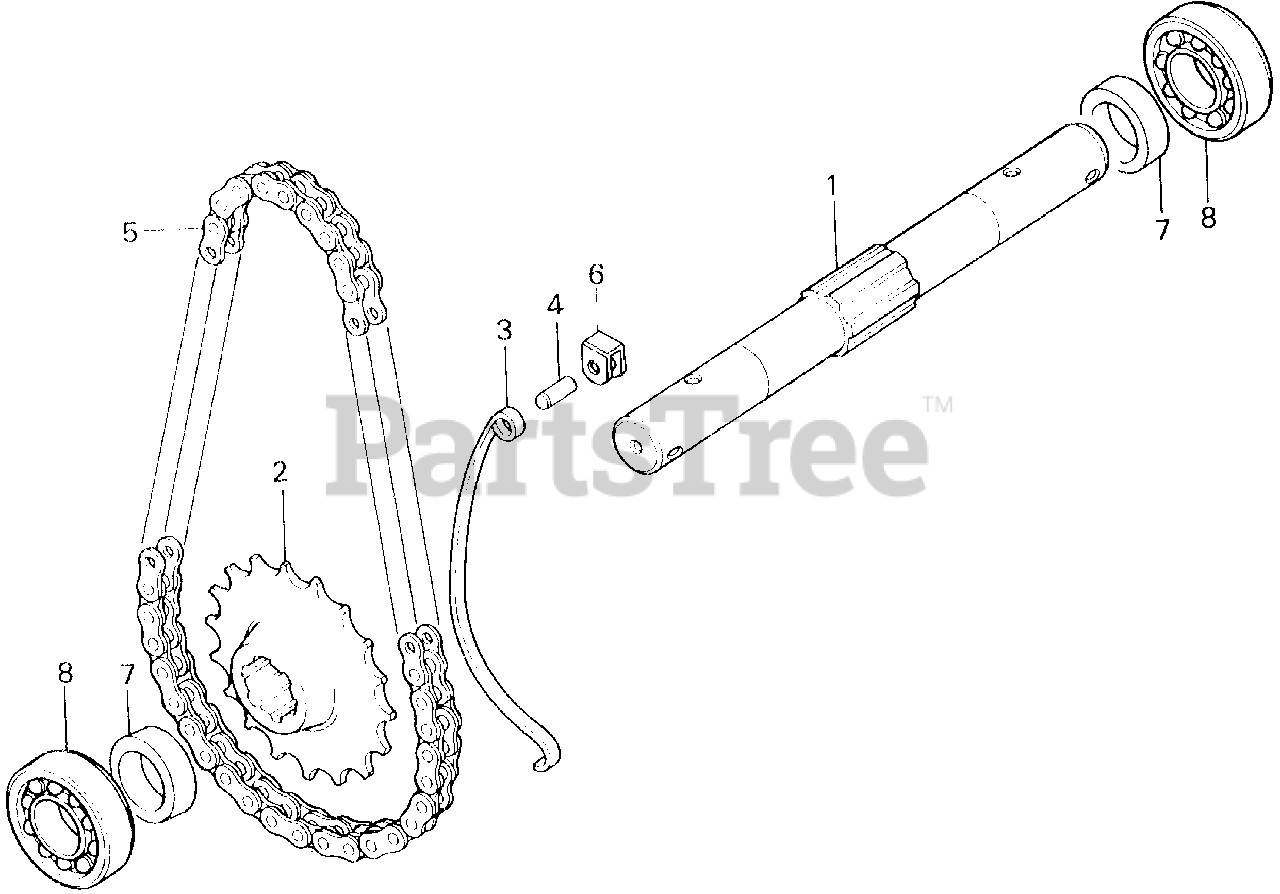

WHEEL SHAFT + FINAL CHAIN Parts Diagram

  • Title

1

Honda 23371-723-670

SEE PART DETAILS - SUP; SHAFT, WHEEL

Note: Use up to Frame SN 2173176.

$

$

Currently unavailable

1

Honda 23371-723-671

SEE PART DETAILS - PRI; SHAFT, WHEEL

Note: Use from Frame SN 2173177.

$

$

Currently unavailable

2

Honda 23372-723-671

SEE PART DETAILS - SUP; SPROCKET, DRIVEN
(Superseded to 23372-723-672)

$89.99

$

Usually ships in 3-6 days

0

2

Honda 23372-723-672

SEE PART DETAILS - PRI; SPROCKET, DRIVEN

$89.99

$

Usually ships in 3-6 days

0

3

Honda 23661-723-000

TENSIONER, CHAIN (NOT AVAILABLE)

Note: Use up to Frame SN 2173176.

$

$

Currently unavailable

3

Honda 23661-723-910

TENSIONER, CHAIN (NOT AVAILABLE)

Note: Use from Frame SN 2173177.

$

$

Not available

4

Honda 23662-708-000

SHAFT, TENSIONER (NOT AVAILABLE)

Note: Use up to Frame SN 2173176.

$

$

Currently unavailable

4

Honda 23662-723-910

SHAFT, TENSIONER

Note: Use from Frame SN 2173177.

$

$

Not available

5

Honda 23861-733-003

SEE PART DETAILS - PRI; CHAIN, FINAL (RK520KFX44LE)

$123.99

$

Usually ships in 3-6 days

0

6

Honda 40362-723-000

SPACER, CHAIN TENSIONER

Note: Use from Frame SN 2173177.

$

$

Not available

7

Honda 90462-723-670

COLLAR, WHEEL SHAFT

Note: Use from Frame SN 2173177.

$

$

Currently unavailable

8

Honda 96100-60070

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6007)
(Superseded to 96100-60070-00)

$30.99

$

Usually ships in 3-6 days

0

8

Honda 96100-60070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6007)

$30.99

$

Usually ships in 3-6 days

0
