F401 AD (F401) - Honda Tiller, Made in Japan (SN: F401-1000001 - F401-1099999) AIR CLEANER Parts Diagram

Tiller, Made in Japan

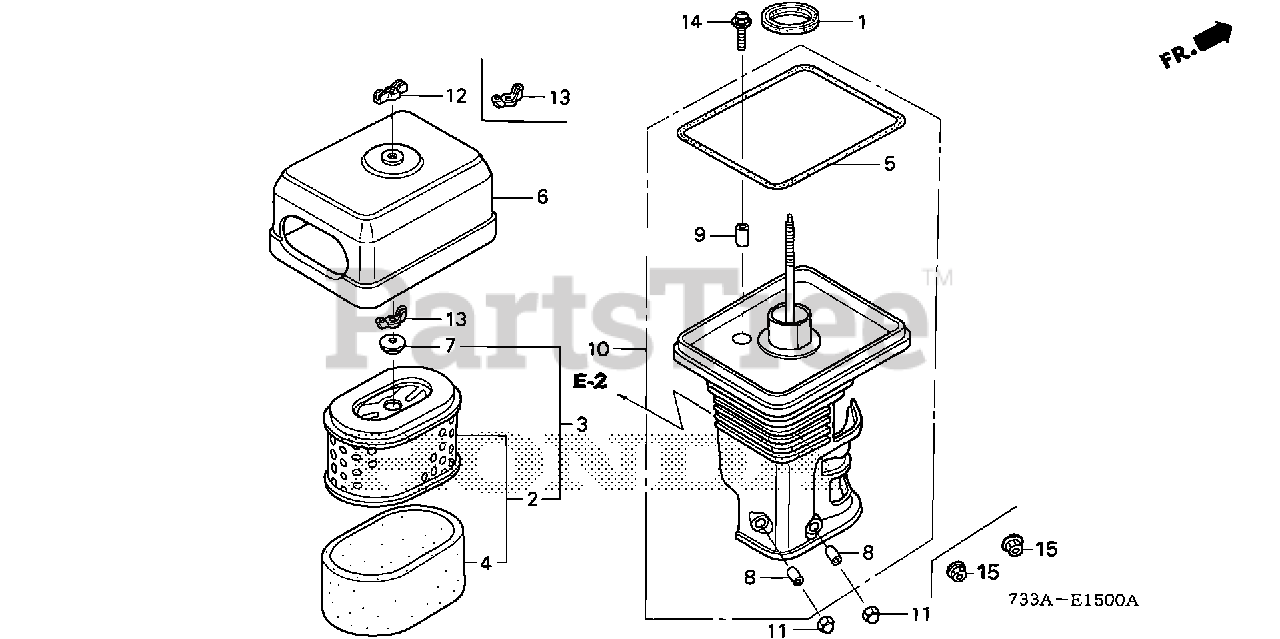

AIR CLEANER Parts Diagram

  • Title

1

Honda 16271-ZE1-000

GASKET, ELBOW

Note: Use from Engine SN 1672407.

$4.49

$

In Stock, Qty 20+

0

2

Honda 17210-ZE0-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (DUAL)

Note: Use up to Engine SN 1775747.

$12.99

$

In Stock, Qty 15

0

2

Honda 17210-ZE0-822

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER (DUAL)
(Superseded to 17210-ZE0-505)

Note: Use up to Engine SN 1775747.

$12.99

$

In Stock, Qty 15

0

3

Honda 17210-ZE0-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (DUAL)

Note: Use from Engine SN 1775748.

$12.99

$

In Stock, Qty 15

0

3

Honda 17210-ZE0-822

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER (DUAL)
(Superseded to 17210-ZE0-505)

Note: Use from Engine SN 1775748.

$12.99

$

In Stock, Qty 15

0

4

Honda 17218-ZE0-505

SEE PART DETAILS - PRI; FILTER (OUTER)

$11.99

$

Usually ships in 3-6 days

0

5

Honda 17219-733-010

GASKET, AIR CLEANER COVER

$5.99

$

Usually ships in 3-6 days

0

6

Honda 17230-733-000

COVER, AIR CLEANER (DUAL)

$26.99

$

Usually ships in 3-6 days

0

7

Honda 17232-891-000

GROMMET, AIR CLEANER

$5.49

$

In Stock, Qty 15

0

8

Honda 17238-ZE0-000

COLLAR, AIR CLEANER (NOT AVAILABLE)

Note: Use from Engine SN 1191609 to 1549317.

$

$

Currently unavailable

8

Honda 17238-ZE0-010

COLLAR, AIR CLEANER

Note: Use from Engine SN 1549318.

$4.49

$

Usually ships in 3-6 days

0

8

Honda 17238-ZE1-000

COLLAR, AIR CLEANER

Note: Use up to Engine SN 1191608.

$5.49

$

Usually ships in 3-6 days

0

9

Honda 17239-733-000

COLLAR B, AIR CLEANER

$3.99

$

Usually ships in 3-6 days

0

10

Honda 17410-733-000

ELBOW, AIR CLEANER (NOT AVAILABLE)

Note: Use up to Engine SN 1191608.

$

$

Currently unavailable

10

Honda 17410-733-010

SEE PART DETAILS - SUP; ELBOW, AIR CLEANER

Note: Use from Engine SN 1191609 to 1549317.

$

$

Not available

10

Honda 17410-733-030

ELBOW, AIR CLEANER
(Superseded to 17410-733-040)

Note: Use from Engine SN 1549318.

$35.99

$

Usually ships in 3-6 days

0

11

Honda 90201-415-000

NUT, CAP (6MM)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 90203-PB2-000

NUT, AIR CLEANER COVER (DACRO COATING)

$9.49

$

In Stock, Qty 6

0

13

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

14

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$1.99

$

In Stock, only 4 left!

0
