F401 AD (F401) - Honda Tiller, Made in Japan (SN: F401-1000001 - F401-1099999) TRANSMISSION CASE Parts Diagram

Tiller, Made in Japan

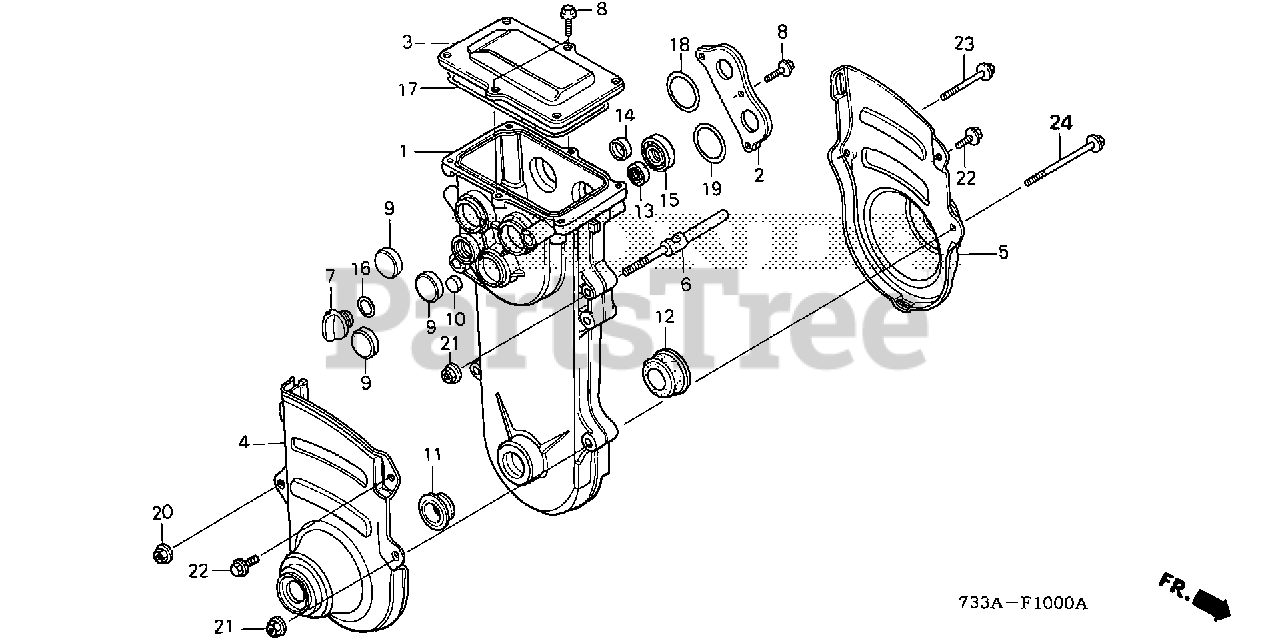

TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 21111-733-702

CASE, TRANSMISSION

$521.99

$

Usually ships in 3-6 days

0

2

Honda 21521-733-000

PLATE, BEARING HOLDER

$9.49

$

Usually ships in 3-6 days

0

3

Honda 21525-733-000

COVER, TRANSMISSION CASE TOP

$19.99

$

Usually ships in 3-6 days

0

4

Honda 21911-733-700

PROTECTOR, R. TRANSMISSION CASE

Note: Use up to Frame SN 1004348.

$

$

Currently unavailable

4

Honda 21911-733-703

PROTECTOR, R. TRANSMISSION CASE

Note: Use from Frame SN 1004349.

$58.99

$

Usually ships in 3-6 days

0

5

Honda 21921-733-700

PROTECTOR, L. TRANSMISSION CASE (NA USE ALT:21921-733-305)

Note: Use up to Frame SN 1004348.

$

$

Currently unavailable

5

Honda 21921-733-701

PROTECTOR, L. TRANSMISSION CASE

Note: Use from Frame SN 1004349 to 1011908.

$

$

Currently unavailable

5

Honda 21921-733-702

PROTECTOR, L. TRANSMISSION CASE (NOT AVAILABLE)

Note: Use from Frame SN 1011909.

$

$

Not available

6

Honda 22551-733-000

SHAFT, TENSIONER ARM

$27.99

$

Usually ships in 3-6 days

0

7

Honda 25611-733-000

CAP, OIL

$7.99

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

9

Honda 90871-733-003

PLUG, SEALING (28) (ARAI)

$6.49

$

Usually ships in 3-6 days

0

10

Honda 90875-733-003

PLUG, SEALING (16) (ARAI)

$5.99

$

Usually ships in 3-6 days

0

11

Honda 91205-733-701

SEE PART DETAILS - SUP; SEAL, WATER (32X52X11) (ARAI)
(Superseded to 91205-733-703)

$20.99

$

In Stock, only 2 left!

0

11

Honda 91205-733-702

SEE PART DETAILS - SUP; SEAL, WATER (32X52X11) (NOK)
(Superseded to 91205-733-703)

$20.99

$

In Stock, only 2 left!

0

11

Honda 91205-733-703

SEE PART DETAILS - PRI; SEAL, WATER (32X52X10.5) (NOK)

$20.99

$

In Stock, only 2 left!

0

12

Honda 91206-733-701

SEE PART DETAILS - SUP; SEAL, WATER (32X58X11) (ARAI)
(Superseded to 91206-733-703)

$22.99

$

In Stock, only 2 left!

0

12

Honda 91206-733-702

SEE PART DETAILS - SUP; SEAL, WATER (32X58X11) (NOK)
(Superseded to 91206-733-703)

$22.99

$

In Stock, only 2 left!

0

12

Honda 91206-733-703

SEE PART DETAILS - PRI; SEAL, WATER (32X58X10.5) (NOK)

$22.99

$

In Stock, only 2 left!

0

14

Honda 91255-723-671

PLUG, SEAL

$13.99

$

In Stock, only 1 left!

0

15

Honda 91271-733-003

SEE PART DETAILS - PRI; OIL SEAL (15X35X7) (ARAI)

$9.99

$

Usually ships in 3-6 days

0

16

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

17

Honda 91371-733-000

O-RING A, TRANSMISSION CASE

$11.99

$

Usually ships in 3-6 days

0

18

Honda 91372-733-003

O-RING (40.5X2.5) (ARAI)

$5.99

$

Usually ships in 3-6 days

0

19

Honda 91373-733-003

O-RING (45.5X2.5) (ARAI)

$4.99

$

Usually ships in 3-6 days

0

20

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

22

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.49

$

In Stock, Qty 20+

0

23

Honda 95701-06032-00

BOLT, FLANGE (6X32)

Note: Use up to Frame SN 1011908.

$2.49

$

In Stock, only 4 left!

0

23

Honda 95701-06040-00

BOLT, FLANGE (6X40)

Note: Use from Frame SN 1011909.

$2.49

$

Usually ships in 3-6 days

0

24

Honda 95701-08055-00

BOLT, FLANGE (8X55)

$2.99

$

In Stock, only 2 left!

0
