F401 K1 A (F401) - Honda Tiller, Made in Japan (SN: F401-1100001 - F401-1199999) CYLINDER Parts Diagram

Tiller, Made in Japan

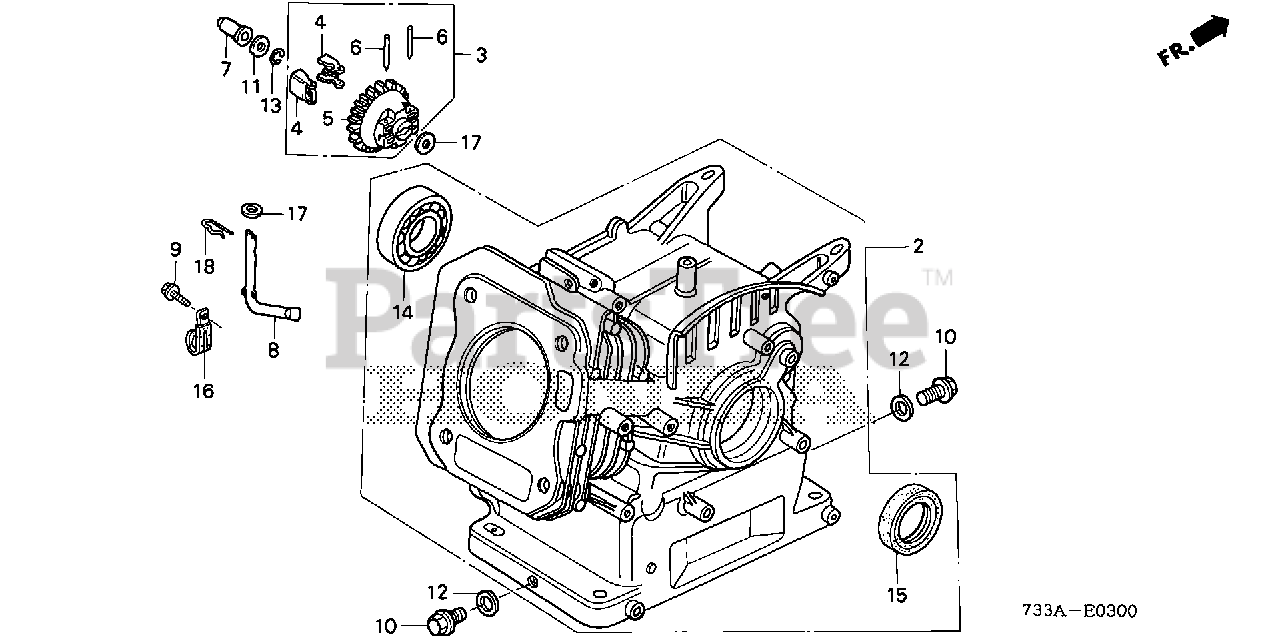

CYLINDER Parts Diagram

  • Title

2

Honda 120A0-ZE0-010

CYLINDER ASSY.

Note: Use up to Engine SN 2277921.

$

$

Not available

2

Honda 120A0-ZE0-020

CYLINDER ASSY. (STD)

Note: Use from Engine SN 2277922.

$

$

Not available

3

Honda 16510-ZE1-000

GOVERNOR ASSY.

$18.99

$

In Stock, only 1 left!

0

4

Honda 16511-ZE1-000

WEIGHT, GOVERNOR

$4.49

$

Usually ships in 3-6 days

0

5

Honda 16512-ZE1-000

HOLDER, GOVERNOR WEIGHT

$27.99

$

In Stock, only 1 left!

0

6

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

$2.99

$

In Stock, only 2 left!

0

7

Honda 16531-ZE1-000

SLIDER, GOVERNOR

$4.49

$

In Stock, only 1 left!

0

8

Honda 16541-ZE0-000

SHAFT, GOVERNOR ARM

Note: Use up to Engine SN 2277921.

$

$

Not available

8

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM

Note: Use from Engine SN 2277922.

$14.99

$

Usually ships in 3-6 days

0

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

10

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, Qty 6

0

11

Honda 90451-ZE1-000

WASHER, THRUST (6MM)

$2.49

$

In Stock, only 3 left!

0

12

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.99

$

In Stock, Qty 20+

0

13

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 7

0

14

Honda 91001-878-003

BEARING, RADIAL BALL

$41.99

$

In Stock, only 2 left!

0

15

Honda 91202-ZE6-003

SEE PART DETAILS - SUP; OIL SEAL (22X35X6)
(Superseded to 91202-ZE6-013)

$11.99

$

In Stock, Qty 6

0

15

Honda 91202-ZE6-013

SEE PART DETAILS - PRI; OIL SEAL (22X35X6)

$11.99

$

In Stock, Qty 6

0

16

Honda 91406-657-671

CLIP, WIRE HARNESS

$15.99

$

Usually ships in 3-6 days

0

17

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0
