F500 A2 (F500) - Honda Tiller, Made in Japan (SN: F500-1000003 - F500-9999999) SUB FENDER + SPLASH GUARD Parts Diagram

Tiller, Made in Japan

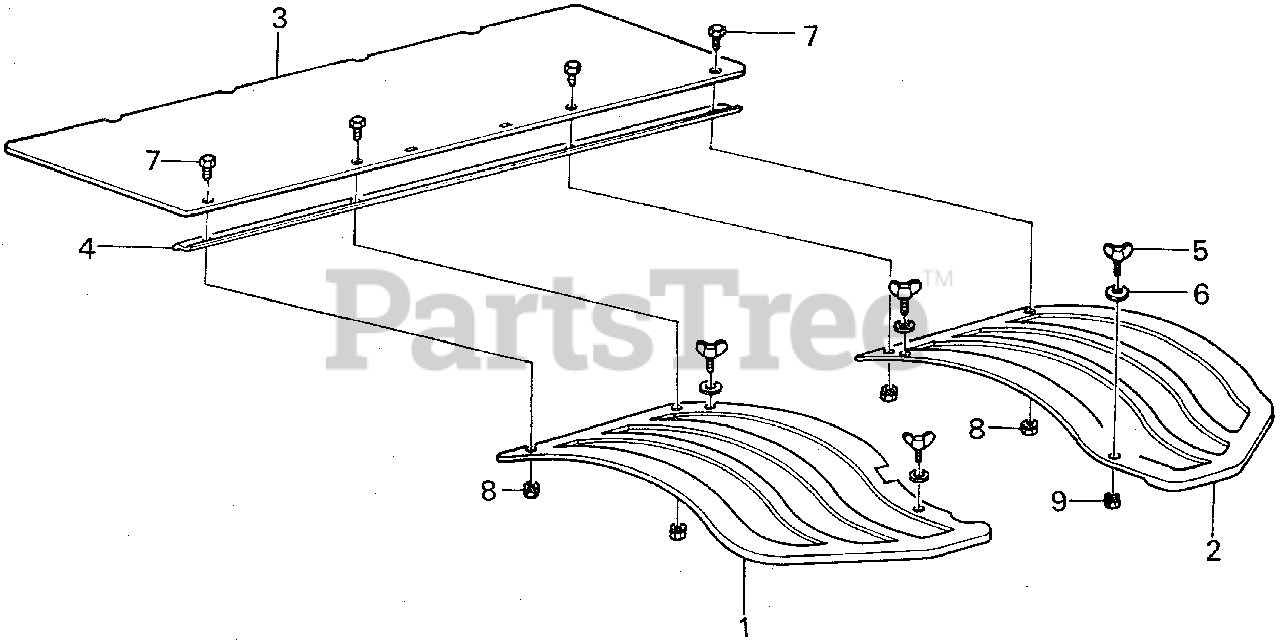

SUB FENDER + SPLASH GUARD Parts Diagram

  • Title

1

Honda 61311-734-000ZA

SUB-FENDER, R. *NH31* (MCKINLEY WHITE)

$

$

Not available

2

Honda 61321-708-811XC

SUB-FENDER, L. *NH31* (MCKINLEY WHITE)

$

$

Currently unavailable

3

Honda 76610-708-810

SPLASH GUARD

$52.99

$

Usually ships in 3-6 days

0

4

Honda 76651-708-811

BAND, SPLASH GUARD SETTING

$28.99

$

Usually ships in 3-6 days

0

5

Honda 90182-706-810

BOLT, WING (8MM)

$

$

Not available

6

Honda 90501-706-000

WASHER, WING BOLT (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

8

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

8

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0
