F501 A1R (F501) - Honda Tiller, Made in Japan (SN: F501-1000001 - F501-1099999) ROTOR Parts Diagram

Tiller, Made in Japan

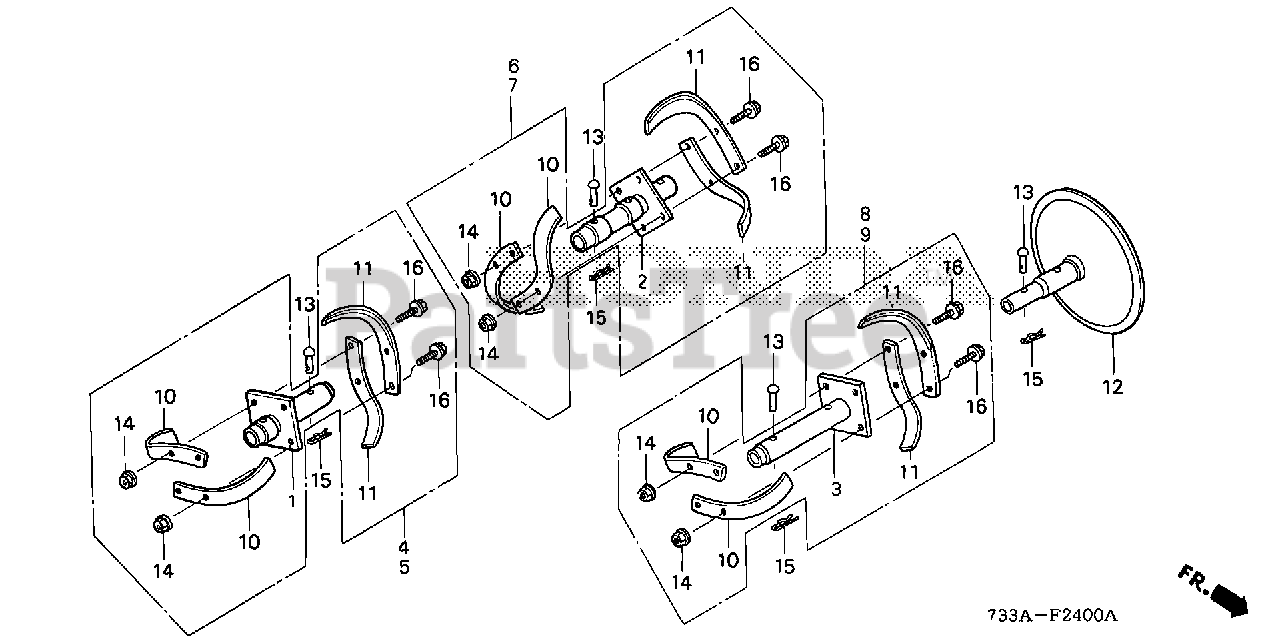

ROTOR Parts Diagram

  • Title

1

Honda 72110-733-W70

PIPE (INNER)

Note: Use from Frame SN 1034790.

$66.99

$

Usually ships in 3-6 days

0

1

Honda 72111-733-750

PIPE (INNER) (NOT AVAILABLE)

Note: Use up to Frame SN 1034789.

$

$

Currently unavailable

2

Honda 72165-733-W70

PIPE, R. (OUTER)

$64.99

$

Usually ships in 3-6 days

0

3

Honda 72130-733-760

PIPE, EXTENSION

$90.99

$

Usually ships in 3-6 days

0

4

Honda 72140-733-750

ROTOR ASSY., R. (INNER) (NOT AVAILABLE)

Note: Use up to Frame SN 1034789.

$

$

Currently unavailable

4

Honda 72140-733-751

ROTOR ASSY., R. (INNER)

Note: Use from Frame SN 1034790.

$94.99

$

Usually ships in 3-6 days

0

5

Honda 72150-733-750

ROTOR ASSY., L. (INNER) (NOT AVAILABLE)

Note: Use up to Frame SN 1034789.

$

$

Currently unavailable

5

Honda 72150-733-751

ROTOR ASSY., L. (INNER) (NOT AVAILABLE)

Note: Use from Frame SN 1034790.

$

$

Not available

6

Honda 72160-733-750

ROTOR ASSY., R. (OUTER)

$

$

Currently unavailable

7

Honda 72170-733-750

ROTOR ASSY., L. (OUTER)

$

$

Currently unavailable

8

Honda 72180-733-750

ROTOR ASSY., R. EXTENSION

$118.99

$

Usually ships in 3-6 days

0

9

Honda 72190-733-750

ROTOR ASSY., L. EXTENSION

$118.99

$

Usually ships in 3-6 days

0

10

Honda 72461-733-750

SEE PART DETAILS - PRI; TINE A, ROTARY

$19.99

$

In Stock, Qty 5

0

11

Honda 72465-733-750

TINE B, ROTARY

$19.99

$

In Stock, Qty 5

0

12

Honda 72470-733-750

DISK, SIDE

$73.99

$

In Stock, only 1 left!

0

13

Honda 90757-723-670

PIN (10X53.5)

$4.49

$

Usually ships in 3-6 days

0

14

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

15

Honda 94252-10000

PIN, LOCK (10MM)

$1.49

$

In Stock, only 3 left!

0

16

Honda 95701-10025-00

BOLT, FLANGE (10X25)

$2.99

$

In Stock, Qty 7

0
