F501 A1R (F501) - Honda Tiller, Made in Japan (SN: F501-1000001 - F501-1099999) WHEEL + ENGINE BED Parts Diagram

Tiller, Made in Japan

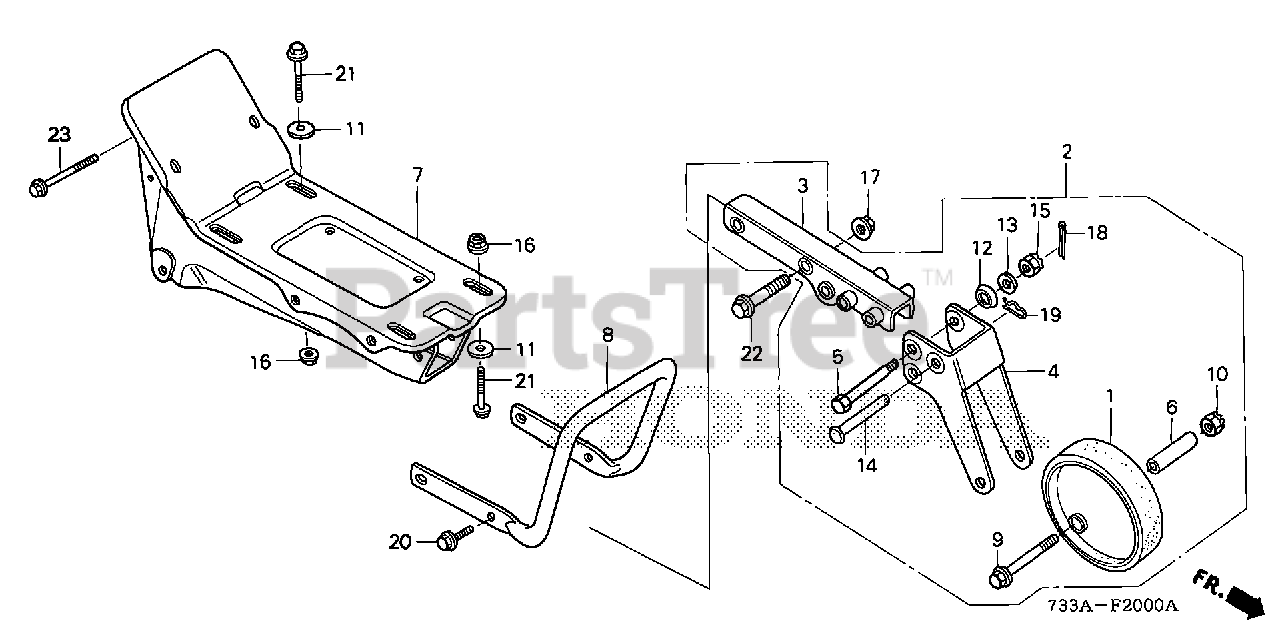

WHEEL + ENGINE BED Parts Diagram

  • Title

1

Honda 42810-723-670

WHEEL, RR.

$69.99

$

Usually ships in 3-6 days

0

2

Honda 42810-733-700

WHEEL ASSY., FR.

$210.99

$

Usually ships in 3-6 days

0

3

Honda 42812-733-700

BEAM, FR. WHEEL

$94.99

$

Usually ships in 3-6 days

0

4

Honda 42813-733-700

ARM, FR. WHEEL

$89.99

$

Usually ships in 3-6 days

0

5

Honda 42814-733-700

SHAFT, FR. WHEEL

$11.99

$

Usually ships in 3-6 days

0

6

Honda 42815-733-700

SHAFT, FR. WHEEL PIPE

$10.99

$

In Stock, only 1 left!

0

7

Honda 51110-733-000

BED, ENGINE

$283.99

$

Usually ships in 3-6 days

0

8

Honda 51121-733-000

PIPE, FR. GUARD

$53.99

$

Usually ships in 3-6 days

0

9

Honda 90110-GE2-000

BOLT, FLANGE (8X75)

$7.49

$

Usually ships in 3-6 days

0

10

Honda 90349-001-000

NUT, SELF-LOCK (8MM)

$4.49

$

Usually ships in 3-6 days

0

11

Honda 90402-344-820

WASHER (8X22)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90420-730-003

WASHER, CHUTE GUIDE

$5.99

$

Usually ships in 3-6 days

0

13

Honda 94102-10000

WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 90751-733-700

PIN (10X70)

$12.99

$

Usually ships in 3-6 days

0

15

Honda 94011-08000-0S

NUT, SELF-LOCK (8MM) (SOURCE: VINTAGE PARTS INC.)

$15.99

$

Usually ships in 3-6 days

0

16

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

17

Honda 94050-10000

NUT, FLANGE (10MM)

$2.49

$

In Stock, Qty 20+

0

18

Honda 94201-20220

PIN, SPLIT (2.0X22)

$1.49

$

In Stock, Qty 7

0

18

Honda 94201-20350

PIN, SPLIT (2.0X35)

$1.49

$

In Stock, Qty 7

0

19

Honda 94252-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, Qty 12

0

20

Honda 95700-08016-00

BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.99

$

In Stock, only 3 left!

0

20

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.99

$

In Stock, only 3 left!

0

21

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$3.49

$

In Stock, Qty 20+

0

22

Honda 95701-10040-00

BOLT, FLANGE (10X40)

$2.49

$

In Stock, only 1 left!

0

23

Honda 95701-08065-00

BOLT, FLANGE (8X65)

$2.49

$

In Stock, Qty 5

0
