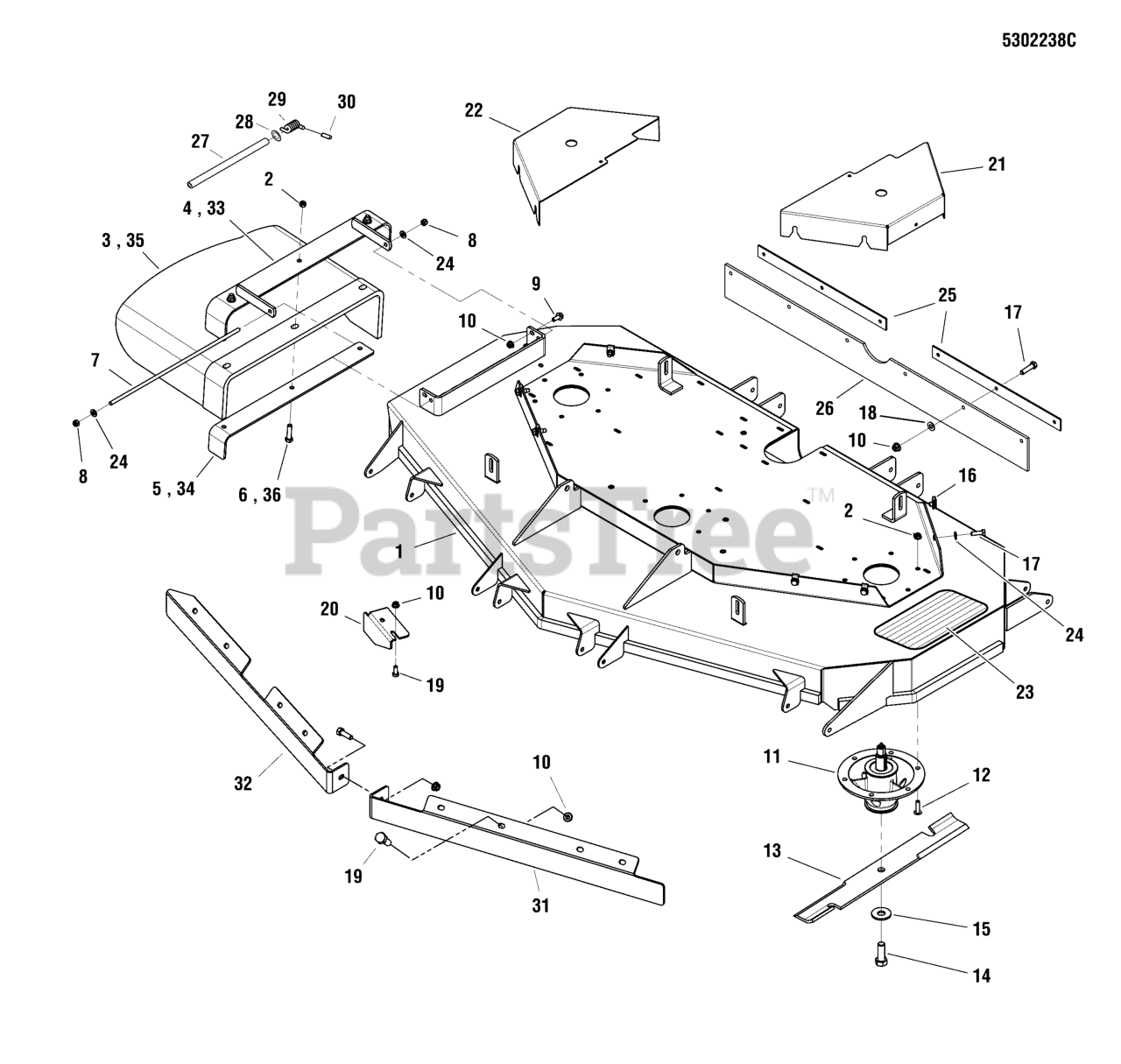

F800X/61CE (5900912) - Ferris 61" Mower Deck 61" Mower Deck - Housing, Covers, Spindles & Blades Group - Side Discharge Parts Diagram

61" Mower Deck

61" Mower Deck - Housing, Covers, Spindles & Blades Group - Side Discharge Parts Diagram

  • Title

1

Ferris 5600448

DECK SHELL W/ DECALS, F800X/61 (5407677B)

Note: (USA Models Only)

$1956.99

$

Usually ships in 2-12 days

0

1

Ferris 5600440

DECK SHELL W/ DECALS, 61, F800XCE (5406817B)

Note: (CE Models Only)

$

$

Currently unavailable

2

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

3

Ferris 5404834

CHUTE, DISCHARGE, BEND RUBBER (SV)

Note: (S/N: 2017094785 & Below)

$

$

Currently unavailable

4

Ferris 5404716A

WELD, FRAME CHUTE, 61 - BLK
(Superseded to 5404716AYP)

Note: (S/N: 2017094785 & Below)

$106.99

$

Usually ships in 2-12 days

0

5

Ferris 5408018A

SUPPORT, DISCHARGE CHUTE, 61/72 - BLK
(Superseded to 5408018AFS)

Note: (S/N: 2017094785 & Below)

$23.99

$

Usually ships in 2-12 days

0

6

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

Note: (S/N: 2017094785 & Below)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

8

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 15

0

9

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

10

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (ANSI-EXP/USA Models Uses Qty. 10)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5100993

SPINDLE ASSM, CAST IRON 8.0-6 BOLT
(Superseded to 5100993SM)

$179.99

$

In Stock, only 1 left!

0

12

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5101755S

BLADE SET, 61 DECK (3)

Note: (SV)(Set of 3 blades)

$83.99

$

In Stock, only 4 left!

0

14

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

15

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$4.49

$

In Stock, Qty 20+

0

16

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 3 left!

0

17

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 7

0

18

Ferris 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

19

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

Note: (ANSI-EXP/USA Models Uses Qty. 2)

$3.99

$

In Stock, Qty 20+

0

20

Ferris 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$12.99

$

In Stock, only 1 left!

0

21

Ferris 5403163B

GUARD, 61, LH - OUTFRONT - RED

$

$

Currently unavailable

22

Ferris 5403164B

GUARD, 61, RH - OUTFRONT - RED

$42.99

$

Usually ships in 2-12 days

0

23

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.99

$

In Stock, only 3 left!

0

24

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

25

Ferris 5405321B

PLATE, SUPPORT, S800X - RED
(Superseded to 5405321AFS)

$11.99

$

In Stock, only 2 left!

0

26

Ferris 5102036

FLAP, STRIPER, 61 DECK
(Superseded to 5102036YP)

$95.99

$

Usually ships in 2-12 days

0

27

Ferris 5050086X10P75

TUBE, 1/2 X 3/8 X 10.75 BLACK POLY
(Superseded to 5050086X10P75YP)

Note: (CE Models Only)

$15.99

$

Usually ships in 2-12 days

0

28

Ferris 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

Note: (CE Models Only)

$4.49

$

In Stock, only 2 left!

0

29

Ferris 5023385

SPRING, TORSION
(Superseded to 5023385SM)

Note: (CE Models Only)

$8.99

$

In Stock, only 2 left!

0

30

Ferris 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

Note: (CE Models Only)

$3.99

$

In Stock, only 1 left!

0

31

Ferris 5406717A

BAFFLE, BLOWOUT, 61 ICD, LH - BLK

Note: (CE Models Only)

$44.99

$

Usually ships in 2-12 days

0

32

Ferris 5406818A

BAFFLE, BLOWOUT, 61 ICD, RH - BLK

Note: (CE Models Only)

$36.99

$

Usually ships in 2-12 days

0

33

Ferris 84008171

MOUNT

Note: (S/N: 2017094786 & Above)

$92.99

$

Usually ships in 2-12 days

0

34

Ferris 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

Note: (S/N: 2017094786 & Above)

$29.99

$

In Stock, Qty 5

0

35

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5413499)

Note: (S/N: 2017094786 & Above)

$160.99

$

Usually ships in 2-12 days

0

36

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

Note: (S/N: 2017094786 & Above)

$4.49

$

In Stock, only 3 left!

0
