F800X/72 (5901238) - Ferris 72" Mower Deck 72" Mower Deck - Pulleys, Belt & Idler Arm Group Parts Diagram

72" Mower Deck

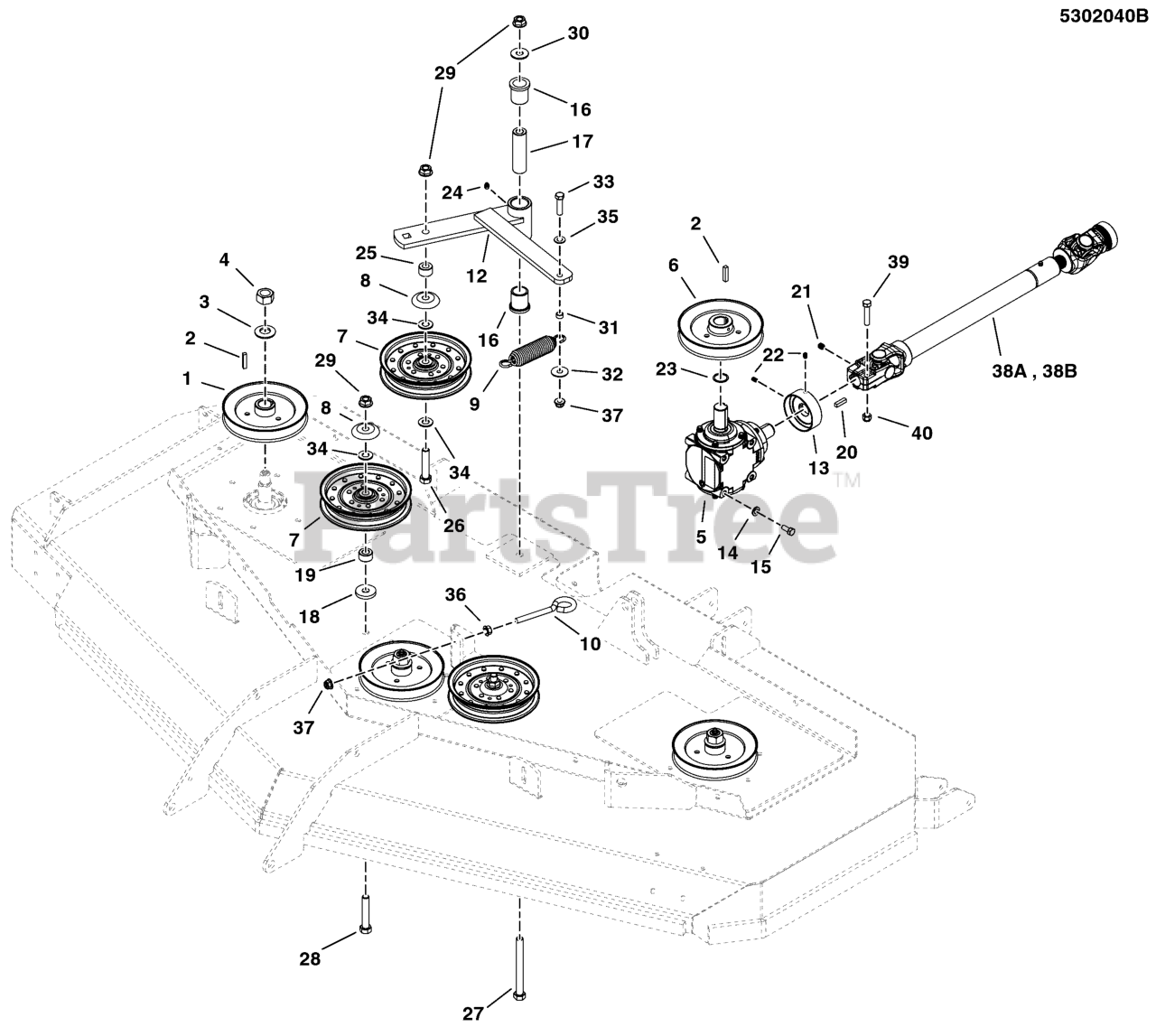

72" Mower Deck - Pulleys, Belt & Idler Arm Group Parts Diagram

  • Title

1

Ferris 5023178

PULLEY, 6.122 OD X .98 BORE
(Superseded to 5023178SM)

$75.99

$

In Stock, only 2 left!

0

2

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$4.49

$

In Stock, Qty 12

0

3

Ferris 5025406

WASHER, 3/4 BELLEVILLE CL/ZC
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025405

NUT, 3/4-16 Hex
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 8

0

5

Ferris 5101164

GEAR BOX, RIGHT ANGLE
(Superseded to 5101164YP)

$1570.99

$

Usually ships in 2-12 days

0

6

Ferris 5101166

PULLEY, 6.25" SPLIT STEEL W/ 1" ID

$142.99

$

Usually ships in 2-12 days

0

7

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

8

Ferris 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 19

0

9

Ferris 5100633

SPRING-EXT, 1.25 ODX5.70LGX.142WR, BLK
(Superseded to 5100633YP)

$37.99

$

Usually ships in 2-12 days

0

10

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

11

Ferris 5022435

BELT, BP-SEC, 156.906EL, LRG ARAMID, WRPD

Note: (Not Shown)

$154.99

$

Usually ships in 2-12 days

0

12

Ferris 5408313B

WELD., IDLER ARM, S800X-72 - RED

$

$

Currently unavailable

13

Ferris 5102465

GUARD, TRASH, S800X

$85.99

$

Usually ships in 2-12 days

0

14

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

15

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

16

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$10.99

$

In Stock, Qty 20+

0

17

Ferris 5045022

SPACER, .52 x 1.00 x 3.50
(Superseded to 5045022SM)

$25.99

$

In Stock, only 2 left!

0

18

Ferris 5044913

WASHER, .53 X 1.50 X .25
(Superseded to 5044913SM)

$6.99

$

In Stock, Qty 9

0

19

Ferris 5101162

SPACER, .52 X 1.00 X .56, PM, CZ
(Superseded to 5101162YP)

$7.99

$

Usually ships in 2-12 days

0

20

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$4.49

$

In Stock, only 1 left!

0

21

Ferris 5025063X3

SET SCREW, 3/8-16 X 3/8
(Superseded to 5025063X3YP)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5025554

SOC SET SCREW, 1/4-20X3/8, DRI-LOC PATCH

$7.99

$

Usually ships in 2-12 days

0

23

Ferris 5020864

SNAP RING, EXTERNAL, 1 SHAFT

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$4.49

$

Usually ships in 2-12 days

0

25

Ferris 5101161

SPACER, .52 X 1.00 X .63, YZ
(Superseded to 5101161YP)

$9.49

$

Usually ships in 2-12 days

0

26

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, only 1 left!

0

27

Ferris 5025017X40

BOLT, 1/2-13 X 5" GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, Qty 20+

0

28

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 4 left!

0

29

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 16

0

30

Ferris 5025150

WASHER, 1/2" USSZ
(Superseded to 5025150SM)

$4.49

$

In Stock, only 2 left!

0

31

Ferris 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

$4.99

$

In Stock, only 1 left!

0

32

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$4.49

$

In Stock, Qty 12

0

33

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

34

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$4.49

$

In Stock, Qty 20+

0

35

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

36

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

37

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

38A

Ferris 5101173

SHAFT, TELESCOPING DRIVE, OUT-FRONT
(Superseded to 5105404)

Note: (Gasoline Models Only)(S/N: 2017795055 & Below)

$887.99

$

Usually ships in 2-12 days

0

38B

Ferris 5105404

DRIVE SHAFT SEALED S800 GAS - NET

Note: (Gasoline Models Only)(S/N: 2017795056 & Above)

$887.99

$

Usually ships in 2-12 days

0

38B

Ferris 5102089

DRIVE SHAFT, S800XY
(Superseded to 5105360FS)

Note: (Diesel Models Only)

$992.99

$

Usually ships in 2-12 days

0

39

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 15

0

40

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0
