FA210D-DS10 - Kawasaki Engine LUBRICATION-EQUIPMENT Parts Diagram

Engine

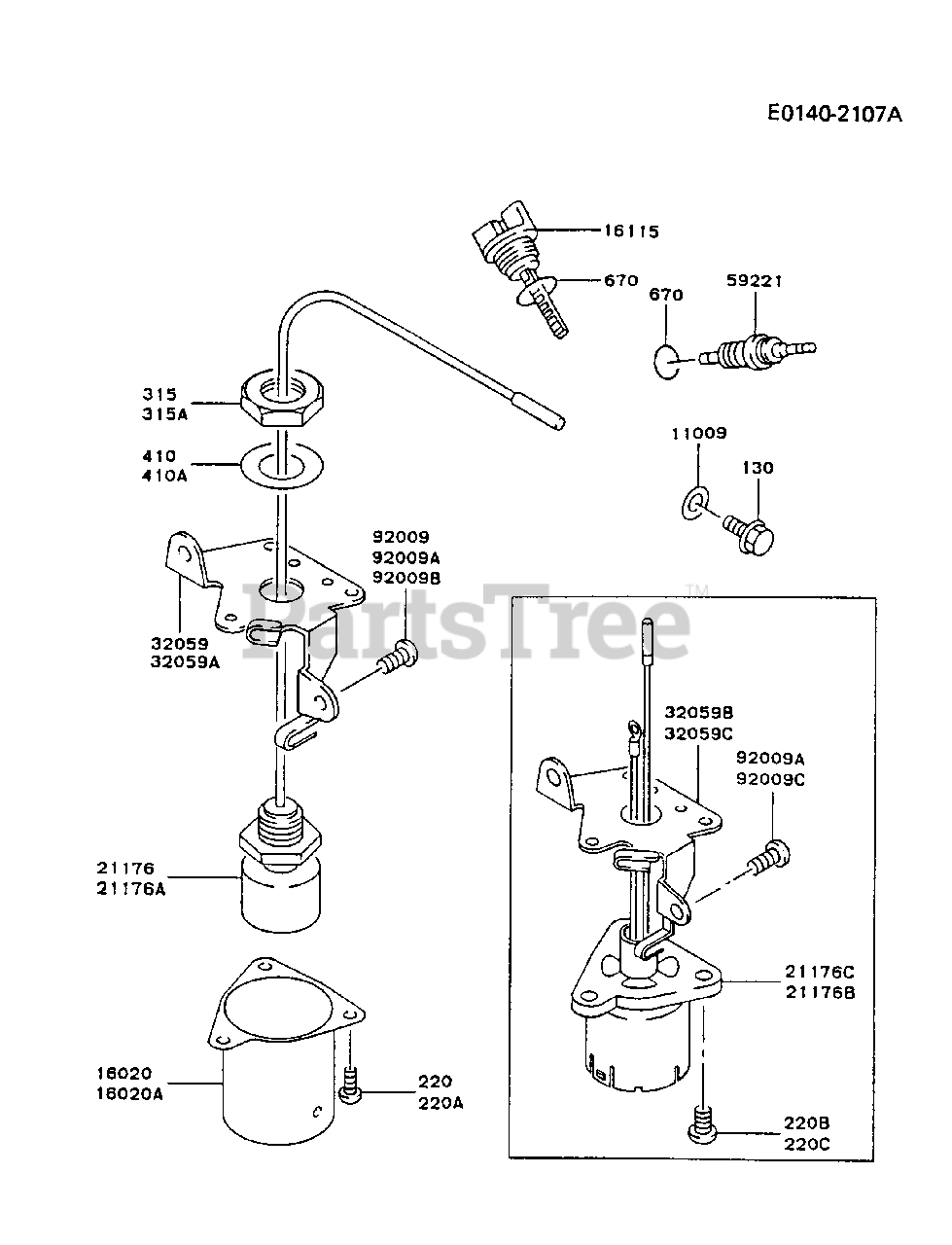

LUBRICATION-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 110092432

GASKET
(Superseded to 11009-2106)

$

$

Not available

16020

Kawasaki 16020-2074

CHAMBER-FLOAT

$

$

Not available

16115

Kawasaki 161152069

CAP-OIL FILLER
(Superseded to 16115-2004)

$2.49

$

Usually ships in 2-5 days

0

21176

Kawasaki 21176-2061

SENSOR
(Superseded to 21176-2054)

$64.99

$

Usually ships in 2-5 days

0

21176C

Kawasaki 21176-2078

SENSOR
(Superseded to 21176-2075)

$

$

Not available

32059

Kawasaki 32059-2070

BRACKET-SWITCH

$

$

Not available

32059B

Kawasaki 32059-2087

BRACKET-SWITCH

$

$

Not available

59221

Kawasaki 592212123

CONNECTOR-CORD
(Superseded to 59221-2054)

$51.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2104

SCREW
(Superseded to 92009-2308)

Note: Substitute part, supplied until the stock is exhausted.

$0.99

$

In Stock, only 2 left!

0

92009A

Kawasaki 920092308

SCREW

$0.99

$

In Stock, only 2 left!

0

92009B

Kawasaki 920092308

SCREW

$0.99

$

In Stock, only 2 left!

0

130

Kawasaki 130D1014

BOLT-FLANGED
(Superseded to 130AA1014)

$4.99

$

In Stock, Qty 6

0

220

Kawasaki 220B0306

SCREW-PAN-CROS
(Superseded to 220AA0306)

$0.99

$

Usually ships in 2-5 days

0

220B

Kawasaki 220B0408

SCREW-PAN-CROS
(Superseded to 220AA0408)

$0.99

$

In Stock, Qty 12

0

315

Kawasaki 315B1200

NUT-HEX-FINE
(Superseded to 315AA1200)

$1.49

$

Usually ships in 2-5 days

0
