FB 1000 - Ferris Hurricane Series Ride-On Blower Operator Area Group Parts Diagram

Hurricane Series Ride-On Blower

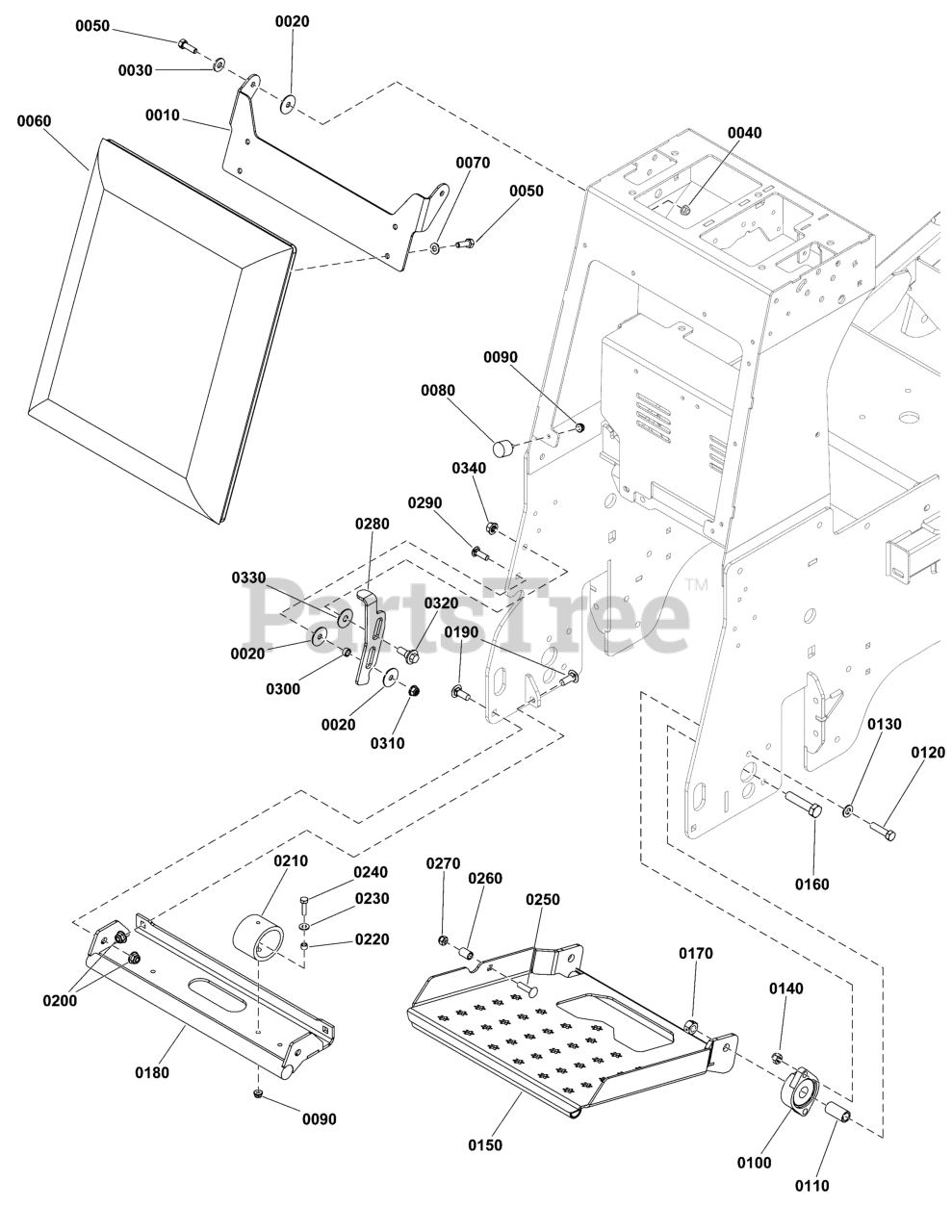

Operator Area Group Parts Diagram

  • Title

0010

Ferris 5415658A

PLATE, PAD MOUNT, SRSZ1 - BLK

$

$

Currently unavailable

0020

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$4.49

$

In Stock, only 2 left!

0

0030

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$4.49

$

In Stock, only 2 left!

0

0040

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0050

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, only 4 left!

0

0060

Ferris 5109578

KNEE PAD, BLWR, FB1000/P2000
(Superseded to 5109578FS)

$334.99

$

Usually ships in 2-12 days

0

0070

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0080

Ferris 5022673

BUMPER, RUBBER, 1/4-20
(Superseded to 5022673SM)

$20.99

$

In Stock, only 1 left!

0

0090

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

0100

Ferris 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$57.99

$

In Stock, only 1 left!

0

0110

Ferris 5104658

SPACER, .52 X .74 X 1.50, CZ
(Superseded to 5104658FS)

$12.99

$

Usually ships in 2-12 days

0

0120

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

0130

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0140

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 6

0

0150

Ferris 5421234A

WELD, PLATFORM, FB1000 - BLK
(Superseded to 5421234AFS)

$295.99

$

Usually ships in 2-12 days

0

0160

Ferris 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

In Stock, only 2 left!

0

0170

Ferris 5025332

NUT, 1/2-13 Hex Side Lock
(Superseded to 5025332SM)

$3.49

$

In Stock, only 1 left!

0

0180

Ferris 5421242A

WELD, SPRING MOUNT, FB1000 - BLK
(Superseded to 5421242AFS)

$97.99

$

Usually ships in 2-12 days

0

0190

Ferris 80004497

BOLT,3/8-16X1.000,RND HD CRRG,ZINC/CLEAR
(Superseded to 703814)

$4.49

$

Usually ships in 2-12 days

0

0200

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0210

Ferris 5105128

BUMPER, GBR-6, 200 IN-LBS
(Superseded to 5105128FS)

$28.99

$

Usually ships in 2-12 days

0

0220

Ferris 5021878

SPACER, .25 X .37 X .25
(Superseded to 5021878YP)

$4.49

$

Usually ships in 2-12 days

0

0230

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0240

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

0250

Ferris 80004446

BOLT,5/16-18X1 1/4,GR5,CRRG,ZINC/CLEAR
(Superseded to 703446)

$4.49

$

In Stock, only 2 left!

0

0260

Ferris 5101352

SPACER, .33 X .50 X .75
(Superseded to 5101352FS)

$7.49

$

Usually ships in 2-12 days

0

0270

Ferris 5025057

NUT, Hex, Nylon Locking, 5/16-18
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

0280

Ferris 5421299A

PLATE, LATCH FB1000 - BLK
(Superseded to 5421299AFS)

$9.99

$

Usually ships in 2-12 days

0

0290

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 7

0

0300

Ferris 5102463

SPACER, .33 X .50 X .25, PM, CZ
(Superseded to 5102463YP)

$5.99

$

In Stock, only 4 left!

0

0310

NUT 5/16-18 HEX FLNG CNTR LCK ZC/CL

$

$

Not available

0320

Ferris 720097

BOLT, 3/8-16 Shoulder, GR 2
(Superseded to 009X51MA)

$4.99

$

In Stock, Qty 10

0

0330

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$4.49

$

In Stock, Qty 14

0

0340

Ferris 5025666

NUT, 3/8-16, FLANGE, SERRATED UNDER HEAD
(Superseded to 5025666FS)

$2.99

$

Usually ships in 2-12 days

0
