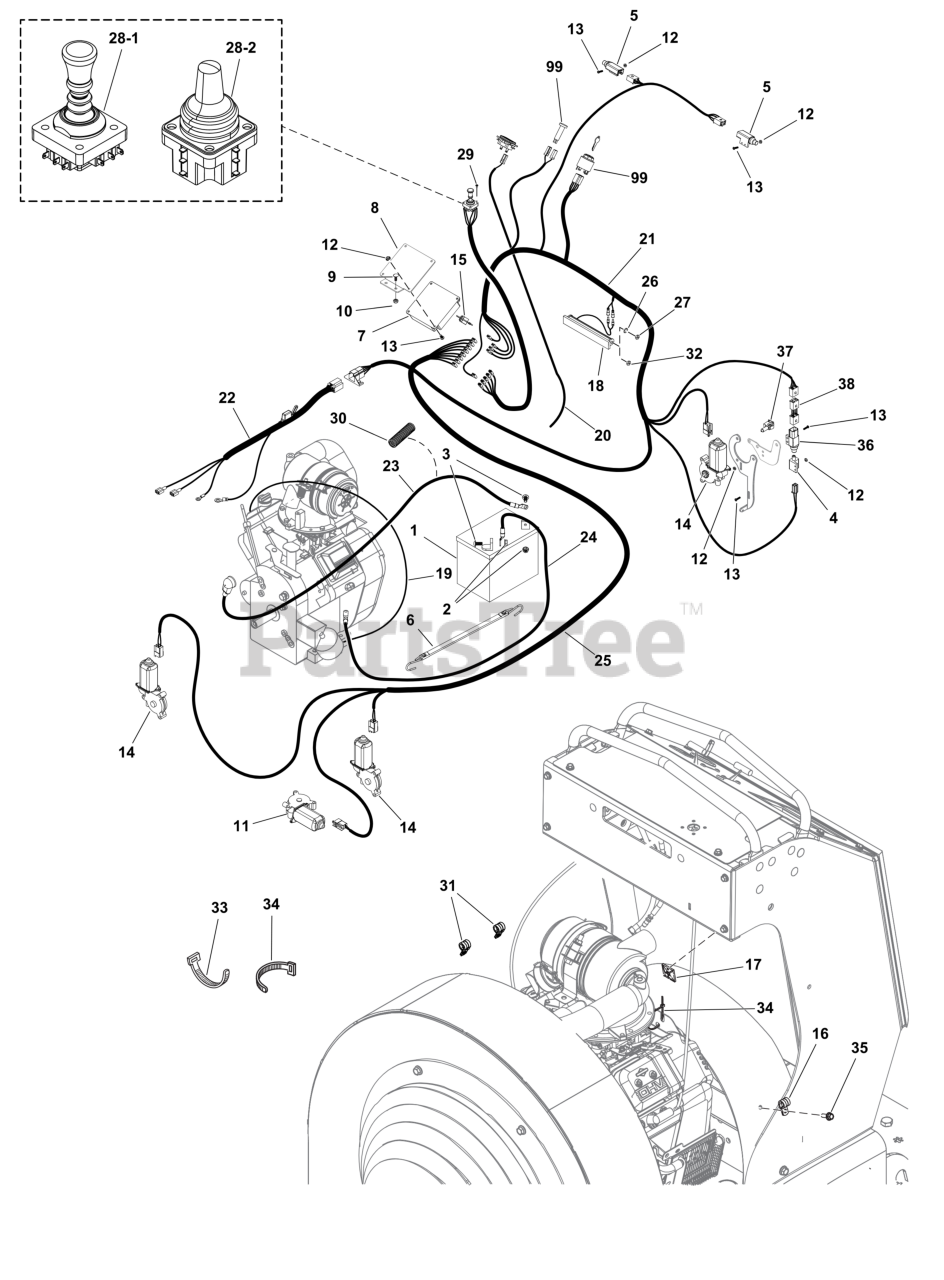

FB 2000 (5901811) - Ferris Hurricane Series Stand-On Blower Electrical Group S/N: 4002219159 and Above Parts Diagram

Hurricane Series Stand-On Blower

Electrical Group S/N: 4002219159 and Above Parts Diagram

  • Title

1

BATTERY

Note: (12 volt, 230 CCA)

$

$

Not available

2

Ferris 5025127SM

NUT, 5/16-18 HEX SERR

$3.49

$

In Stock, Qty 7

0

3

Ferris 703354

SCREW, 5/16-18

$5.49

$

In Stock, Qty 8

0

4

Ferris 5021769SM

SWITCH, PLUNGER, N.C.

$14.99

$

Usually ships in 2-12 days

0

5

Ferris 5106950FS

SWITCH

$21.99

$

Usually ships in 2-12 days

0

6

Ferris 5106918FS

STRAP, Battery

$9.49

$

In Stock, only 1 left!

0

7

Ferris 5601264

KIT, RELAY, CONTROL MODULE

Note: (Includes reference #15.)

$165.99

$

Usually ships in 2-12 days

0

8

Ferris 5107407AAFS

MOUNT

$21.99

$

Usually ships in 2-12 days

0

9

Ferris 703575

BOLT, 1/4-20X.750, SQ

$3.99

$

In Stock, only 3 left!

0

10

Ferris 5025126FS

NUT

$4.49

$

Usually ships in 2-12 days

0

11

Ferris 5106953FS

MOTOR

$101.99

$

In Stock, only 1 left!

0

12

Ferris 1928919SM

NUT-HEX & WASHER ASMY

$3.99

$

In Stock, only 3 left!

0

13

Ferris 5106875FS

SCREW (#10-32 X 3/4, ALLEN, SS)

$1.99

$

Usually ships in 2-12 days

0

14

Ferris 5106952FS

DEFLECTOR, Motor

$99.99

$

In Stock, only 2 left!

0

15

Ferris 5107310FS

BREAKER, CIRCUIT, 15A

$9.49

$

Usually ships in 2-12 days

0

16

Ferris 5107053

CLAMP, VINYL INSULATED, .50

$2.99

$

Usually ships in 2-12 days

0

17

Ferris 5107270FS

MOUNT

$1.49

$

Usually ships in 2-12 days

0

18

Ferris 84006903

HEADLIGHT ASSEMBLY

$112.99

$

Usually ships in 2-12 days

0

19

Ferris 5107888FS

HARNESS, Wiring

$4.99

$

Usually ships in 2-12 days

0

20

Ferris 5107043FS

HARNESS, WIRING

Note: (End without terminal is wrapped around spark plug wire and secure with wire tie.)

$5.49

$

Usually ships in 2-12 days

0

21

Ferris 5107275FS

HARNESS, Wiring

$207.99

$

In Stock, only 2 left!

0

22

Ferris 5107272FS

HARNESS, WIRING

$85.99

$

In Stock, only 2 left!

0

23

Ferris 5107244FS

CABLE, BATTERY, RED

$22.99

$

In Stock, only 2 left!

0

24

Ferris 5107245FS

CABLE, BATTERY, BLACK

$16.99

$

Usually ships in 2-12 days

0

25

Ferris 5107276FS

HARNESS, WIRING

$69.99

$

Usually ships in 2-12 days

0

26

Ferris 5025673

WASHER, 5MM, STAR, CZ

Note: (For headlights with 5MM studs)

$4.49

$

Usually ships in 2-12 days

0

27

Ferris 5025672

NUT, HEX, M5X.8MM, NYLON INSERT

Note: (For headlights with 5MM studs)

$

$

Not available

28-1

Ferris 5601265

KIT, JOYSTICK UPDATE

Note: (S/N: 4001275566 and below)

$310.99

$

Usually ships in 2-12 days

0

28-2

Ferris 5108766FS

KIT, Joystick

Note: (S/N: 4001275567 and above)

$260.99

$

In Stock, only 3 left!

0

29

Ferris 5106917

SCREW, #8-32 X 3/8, ALLEN, SS

$2.49

$

Usually ships in 2-12 days

0

30

Ferris 5050927X17P5

WIRE LOOM, 3/8 ID X 17.5 IN

$2.99

$

Usually ships in 2-12 days

0

31

Ferris 5107987FS

CLAMP

$2.99

$

Usually ships in 2-12 days

0

32

Ferris 5025669

NUT, HEX, M6-1, NYLON INSERT

Note: (For headlights with 6MM studs)

$

$

Not available

33

Ferris 5021029SM

TIE WRAP, 11" Long

$

$

Not available

34

Ferris 5021030SM

TIE WRAP, 5-1/2" LONG

$2.99

$

In Stock, only 3 left!

0

35

Ferris 5106872FS

BOLT

$2.49

$

Usually ships in 2-12 days

0

36

SWITCH, SEALED NC/NO, 2P

$

$

Not available

37

Ferris 5104736FS

CLIP

$2.99

$

Usually ships in 2-12 days

0

38

WIRE HARNESS, JUMPER, BRAKE SWITCH

$

$

Not available

99

Refer to: Instrument Control Panel Group

$

$

Not available
