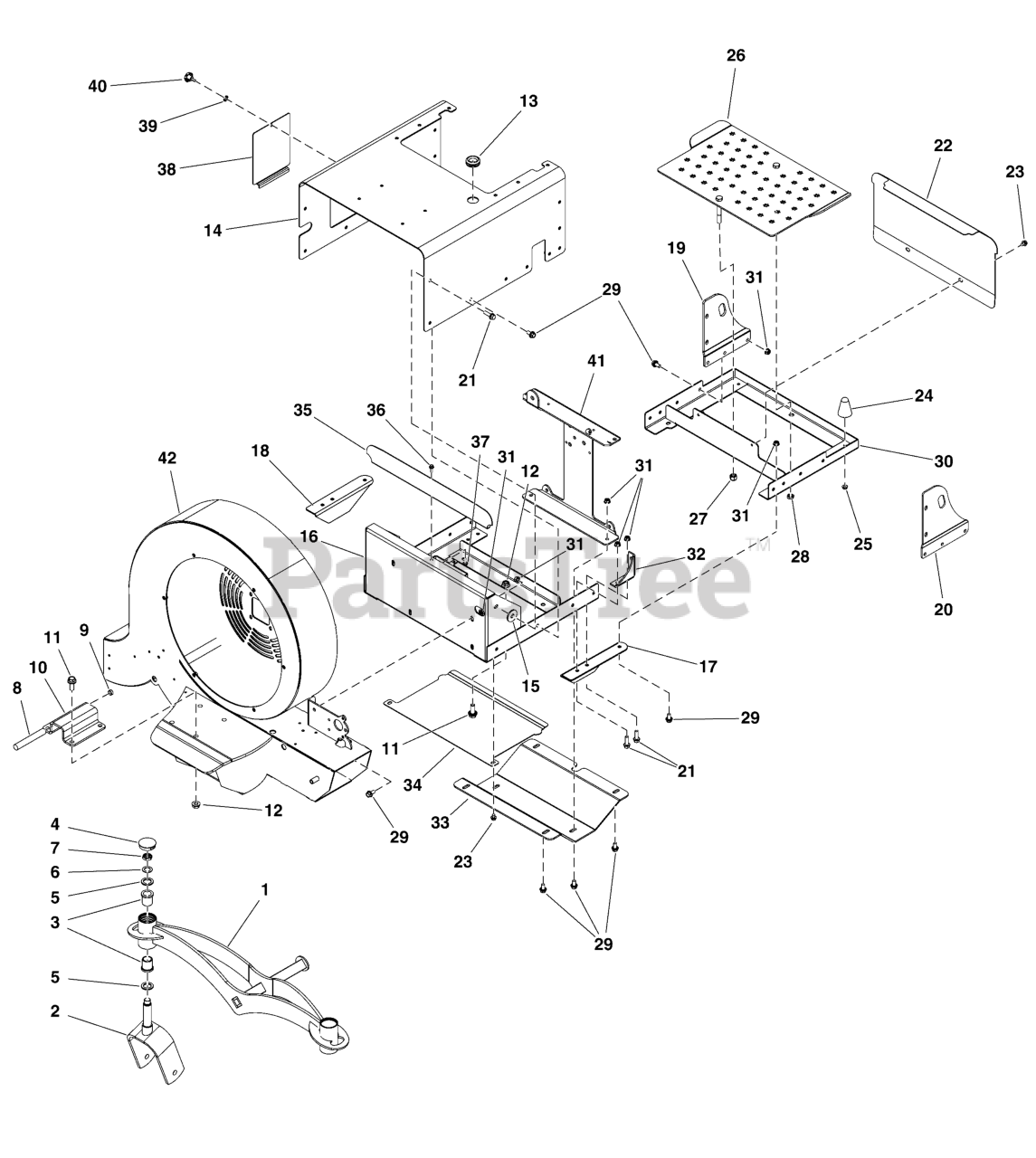

FB 2000 (5901811) - Ferris Hurricane Series Stand-On Blower Main Frame Group Parts Diagram

Hurricane Series Stand-On Blower

Main Frame Group Parts Diagram

  • Title

1

Ferris 5418608AIFS

PIVOT

$497.99

$

Usually ships in 2-12 days

0

2

Ferris 5418604AI

WELD, CASTER YOKE, X3 - RED
(Superseded to 5418604AIFS)

$201.99

$

Usually ships in 2-12 days

0

3

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 11

0

4

Ferris 5107567

CAP, GREASE, PLASTIC
(Superseded to 5107567FS)

$4.49

$

In Stock, only 2 left!

0

5

Ferris 5107778

WASHER, 1 X 10GA, MACH, CZ
(Superseded to 84005968)

$2.99

$

In Stock, Qty 10

0

6

Ferris 5107779

WASHER, 3/4 X 14GA, MACH, CZ
(Superseded to 5107779FS)

$2.49

$

In Stock, only 2 left!

0

7

Ferris 5106783

NUT, 3/4-10, NYLOCK JAM, CZ
(Superseded to 5106783FS)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5107356

CORD, RUBBER
(Superseded to 5107356FS)

$5.49

$

Usually ships in 2-12 days

0

9

RUBBER BAND

Note: (Not a serviceable part.)

$

$

Not available

10

Ferris 5419091AI

PLATE, FRONT END TORSION C - RED
(Superseded to 5419091AIFS)

$50.99

$

Usually ships in 2-12 days

0

11

Ferris 5106786

BOLT, 1/2-13 X 1-1/4, FLANGE, CZ
(Superseded to 5106786FS)

$4.49

$

Usually ships in 2-12 days

0

12

Ferris 5106787

NUT, 1/2-13 SERRATED FLANGE, CZ
(Superseded to 5106787FS)

$2.49

$

Usually ships in 2-12 days

0

13

Ferris 5106788

GROMMET, RUBBER
(Superseded to 5106788FS)

$1.99

$

Usually ships in 2-12 days

0

14

Ferris 5418509AI

WELD, MOTOR BOX - RED
(Superseded to 5418509AIFS)

$426.99

$

Usually ships in 2-12 days

0

15

Ferris 5107390

SPACER, MOTOR BOX 10GA
(Superseded to 5107390FS)

$16.99

$

Usually ships in 2-12 days

0

16

Ferris 5107435A

WELD, X3 FRONT CHASSIS - BLK
(Superseded to 5107435AFS)

$391.99

$

Usually ships in 2-12 days

0

17

Ferris 5107383A

BRACKET, BOTTOM CHASSIS LEFT - BLK
(Superseded to 5107383AFS)

$11.99

$

Usually ships in 2-12 days

0

18

Ferris 5107382A

BRACKET, BOTTOM CHASSIS RIGHT - BLK
(Superseded to 5107382AFS)

$19.99

$

Usually ships in 2-12 days

0

19

Ferris 5418520AI

PLATE, TIE DOWN RH - RED
(Superseded to 5418520AIFS)

$48.99

$

Usually ships in 2-12 days

0

20

Ferris 5418521AI

PLATE TIE DOWN LH - RED
(Superseded to 5418521AIFS)

$37.99

$

Usually ships in 2-12 days

0

21

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

22

Ferris 5419300AI

PLATE, TOE KICK, FB2000 - RED
(Superseded to 5419300AIFS)

$56.99

$

Usually ships in 2-12 days

0

23

Ferris 5106898

SCREW, 5/16-18 X 1/2, SLF TPNG, CZ
(Superseded to 5106898FS)

$2.99

$

Usually ships in 2-12 days

0

24

Ferris 5107206

BUMPER, RUBBER, 5/16-18
(Superseded to 5107206FS)

$15.99

$

Usually ships in 2-12 days

0

25

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

26

Ferris 5418525A

WELD, PLATFORM, BLWR - BLK
(Superseded to 5418525AFS)

$177.99

$

Usually ships in 2-12 days

0

27

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

28

Ferris 5025646

NUT, NTE, 1/2-13, CZ
(Superseded to 5025646FS)

$2.99

$

Usually ships in 2-12 days

0

29

Ferris 5106881

BOLT, 3/8-16 X 3/4, FLANGE, CZ
(Superseded to 5106881FS)

$2.49

$

Usually ships in 2-12 days

0

30

WELD, X3 REAR CHASSIS - BLK

$

$

Not available

31

Ferris 5025666

NUT, 3/8-16, FLANGE, SERRATED UNDER HEAD
(Superseded to 5025666FS)

$2.99

$

Usually ships in 2-12 days

0

32

Ferris 5107387A

WELD, TRANS 90 DEG MOUNT BRACKET - BLK
(Superseded to 5107387AFS)

$40.99

$

Usually ships in 2-12 days

0

33

Ferris 5107384A

PLATE, SKID - BLK
(Superseded to 5107384AFS)

$114.99

$

Usually ships in 2-12 days

0

34

Ferris 5107385A

GUARD, LOWER DEBRIS - BLK
(Superseded to 5107385AFS)

$50.99

$

Usually ships in 2-12 days

0

35

Ferris 5107386A

GUARD, FORWARD DEBRIS - BLK
(Superseded to 5107386AFS)

$26.99

$

Usually ships in 2-12 days

0

36

Ferris 5106872

BOLT, 1/4-20 X 3/4, FLANGE, CZ
(Superseded to 5106872FS)

$2.49

$

Usually ships in 2-12 days

0

37

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

38

Ferris 5419192AI

PLATE, BATTERY DOOR - RED
(Superseded to 5419192AIFS)

$22.99

$

Usually ships in 2-12 days

0

39

Ferris 5107350

WASHER, INT / EXT TOOTH, CZ
(Superseded to 5107350FS)

$1.99

$

Usually ships in 2-12 days

0

40

Ferris 5106913

KNOB, 1/4-20 X 1/2 CAP SCREW
(Superseded to 5106913FS)

$4.99

$

Usually ships in 2-12 days

0

41

Ferris 5107388A

WELD TRANS I-BEAM - BLK
(Superseded to 5107388AFS)

$74.99

$

Usually ships in 2-12 days

0

42

Ferris 5418641AI

WELD, BLOWER HOUSING , X3 - RED
(Superseded to 5418641AIFS)

$2430.99

$

Usually ships in 2-12 days

0
