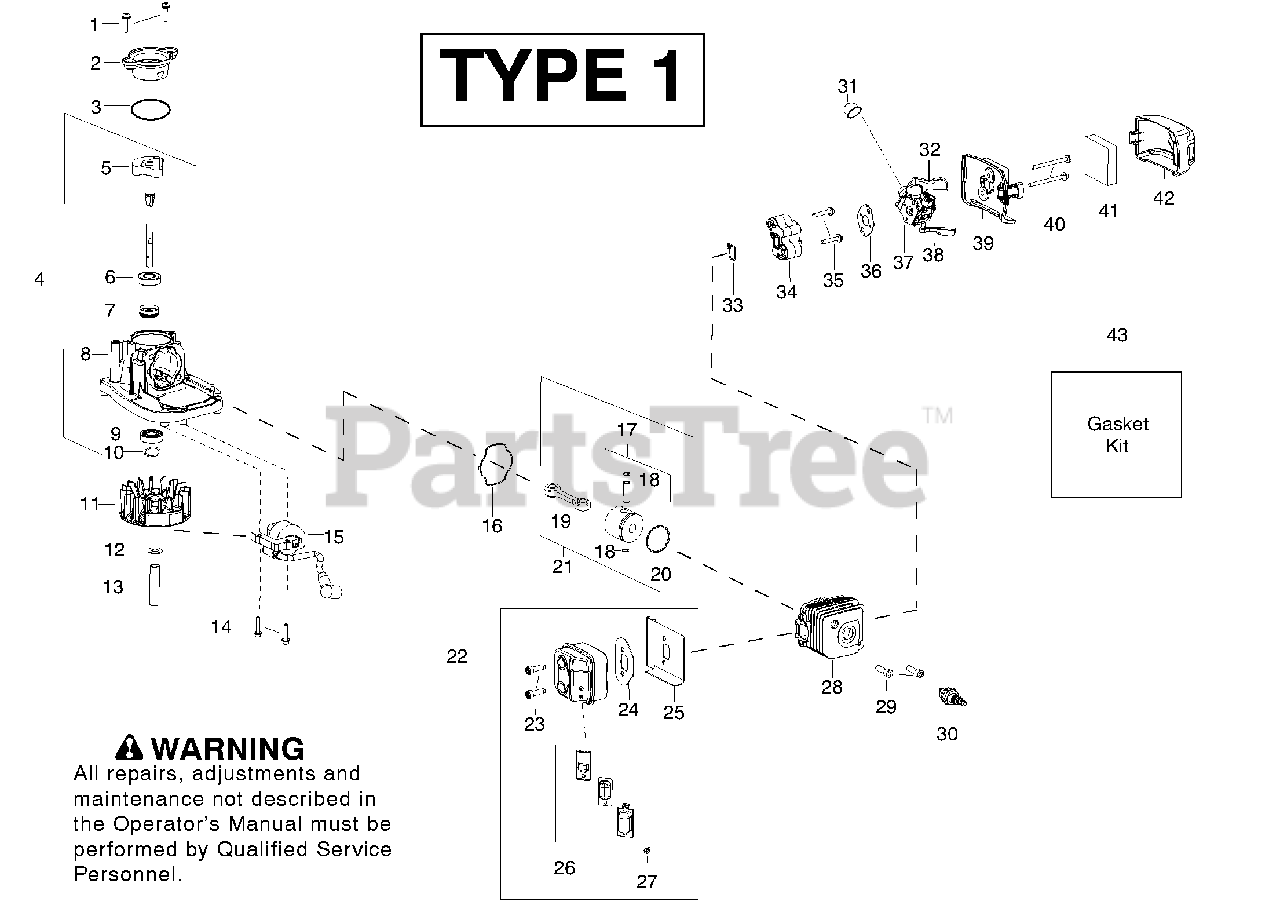

FB 25 - Weed Eater Blower Engine Type 1 Parts Diagram

Blower

Engine Type 1 Parts Diagram

  • Title

1

Poulan 530016386

Screw

$10.99

$

In Stock, Qty 9

0

2

Poulan 530057954

Assy - Rear Plug

Note: (Incl. 3)

$7.49

$

In Stock, only 4 left!

0

3

Poulan 545180866

O-Ring - Rear Plug (kit)

$6.49

$

In Stock, only 4 left!

0

4

Poulan 545180861

Kit - Crankshaft / Crankcase

Note: (Incl. 5,8,10)

$10.05

$

Usually ships in 3-10 days

0

5

Poulan 545091101

Assy - Crankshaft
(Superseded to 576810001)

$

$

Not available

6

Poulan 530032125

Bearing - Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

7

Poulan 530019264

Seal - Crankshaft

$7.49

$

In Stock, only 1 left!

0

8

Poulan 545197401

Assy - Crankcase
(Superseded to 530012582)

Note: (Incl. 6,7,9)

$21.99

$

Usually ships in 3-10 days

0

9

Poulan 530055728

Bearing - Outer

$9.99

$

Usually ships in 3-10 days

0

10

Poulan 530015941

Ring - Crankshaft Retainer

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 545197301

Assy - Flywheel
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

12

Poulan 530016030

Washer

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 545113701

Spacer - Flywheel

$4.99

$

In Stock, only 1 left!

0

14

Poulan 530016357

Screw

$6.49

$

In Stock, Qty 5

0

15

Poulan 545158001

Module - Ignition
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

16

Poulan 545180866

Seal - Crankcase / Cylinder (kit)

$6.49

$

In Stock, only 4 left!

0

17

Poulan 530071833

Kit - Piston

Note: (Incl. 18,20)

$37.99

$

In Stock, only 1 left!

0

18

Poulan 530015162

Retainer - Wrist Pin

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 530069945

Kit - Connecting Rod
(Superseded to 530049817)

$9.99

$

Usually ships in 3-10 days

0

20

Poulan 530055120

Ring - Piston
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

21

Poulan 530071785

Kit - Piston and Rod

Note: (Incl. 17,19)

$47.99

$

In Stock, only 1 left!

0

22

Poulan 545180865

Kit - Muffler

Note: (Incl. 23,24,25,26,27)

$34.99

$

Usually ships in 3-10 days

0

23

Poulan 530016338

Screw - Muffler

$3.99

$

In Stock, only 3 left!

0

24

Poulan 545180866

Gasket - Muffler (kit)

$6.49

$

In Stock, only 4 left!

0

25

Poulan 545210501

Shield - Muffler

$2.23

$

Usually ships in 3-10 days

0

26

Poulan 530071544

Kit - Spark Arrestor

$

$

Not available

27

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530012541

Cylinder - Machined (25cc)

$20.99

$

In Stock, only 1 left!

0

29

Poulan 530015953

Screw - Cylinder

$6.49

$

In Stock, Qty 8

0

30

Poulan 952030249

Accy - Spark Plug (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

31

Poulan 530058709

Bulb - Purge

$7.49

$

In Stock, Qty 20+

0

32

Poulan 545180868

Kit - Throttle

$6.49

$

Usually ships in 3-10 days

0

33

Poulan 545180866

Seal - Cylinder/Carb. Adapter (kit)

$6.49

$

In Stock, only 4 left!

0

34

Poulan 545197001

Adapter - Carburetor

$4.99

$

In Stock, only 1 left!

0

35

Poulan 530016441

Screw

$6.49

$

Usually ships in 3-10 days

0

36

Poulan 545180866

Gasket - Carburetor (kit)

$6.49

$

In Stock, only 4 left!

0

37

Poulan 545180864

Kit - Carburetor Assy.

$31.99

$

In Stock, Qty 7

0

38

Poulan 545180869

Kit - Choke

$15.99

$

Usually ships in 3-10 days

0

39

Poulan 545193501

Base - Air Box
(Superseded to 573952701)

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530016429

Screw

$6.49

$

In Stock, Qty 8

0

41

Poulan 530036575

Filter - Foam Air

$4.99

$

In Stock, Qty 14

0

42

Poulan 545193601

Cover - Air Box

$4.99

$

Usually ships in 3-10 days

0

43

Poulan 545180866

Kit - Gasket

Note: (Incl. 3,16,24,33,36)

$6.49

$

In Stock, only 4 left!

0
