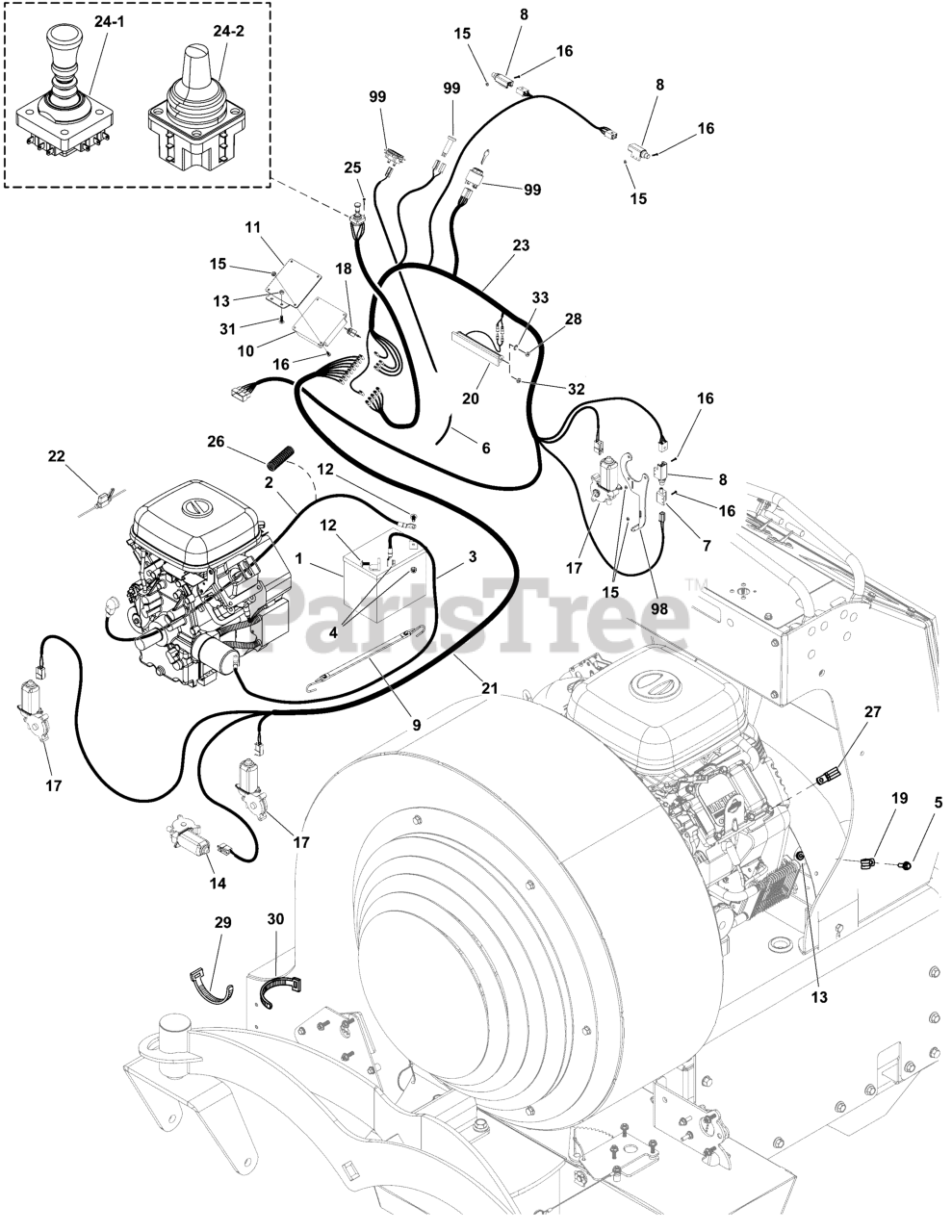

FB 3000 (5901962) - Ferris Hurricane Series Stand-On Blower Electrical Group S/N: 4002219158 and Below Parts Diagram

Hurricane Series Stand-On Blower

Electrical Group S/N: 4002219158 and Below Parts Diagram

  • Title

1

BATTERY

Note: (12 volt, 230 cca)

$

$

Not available

2

Ferris 5107244

BATTERY CABLE, POS, 24.69, 5/16-5/16
(Superseded to 5107244FS)

$22.99

$

In Stock, only 2 left!

0

3

Ferris 5107245

BATTERY CABLE, NEG, 13.50, 5/16-3/8
(Superseded to 5107245FS)

$16.99

$

Usually ships in 2-12 days

0

4

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

5

Ferris 5106872

BOLT, 1/4-20 X 3/4, FLANGE, CZ
(Superseded to 5106872FS)

$2.49

$

Usually ships in 2-12 days

0

6

Ferris 5107043

WIRE HARNESS, TACH X3,Z3
(Superseded to 5107043FS)

Note: (End without terminal is wrapped around spark plug wire and secure with wire tie.)

$5.49

$

Usually ships in 2-12 days

0

7

Ferris 5021769

SWITCH, PLUNGER, N.C.
(Superseded to 5021769SM)

$14.99

$

Usually ships in 2-12 days

0

8

Ferris 5106950

SWITCH, SAFETY(2P)
(Superseded to 5106950FS)

$21.99

$

Usually ships in 2-12 days

0

9

Ferris 5106918

STRAP, BATTERY
(Superseded to 5106918FS)

$9.49

$

In Stock, only 1 left!

0

10

Ferris 5601264

KIT, RELAY, CONTROL MODULE

Note: (Includes reference number #18).

$165.99

$

Usually ships in 2-12 days

0

11

Ferris 5107407AA

BRACKET, RELAY MOUNT - BLK
(Superseded to 5107407AAFS)

$21.99

$

Usually ships in 2-12 days

0

12

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

14

Ferris 5106953

MOTOR, DEFELCTOR, LEFT
(Superseded to 5106953FS)

$101.99

$

In Stock, only 1 left!

0

15

Ferris 80013127

NUT, #10-32, HEX, KEPS, ZC/CL
(Superseded to 1928919SM)

$3.99

$

In Stock, only 3 left!

0

16

Ferris 5106875

SCREW, #10-32 X 3/4, ALLEN, SS
(Superseded to 5106875FS)

$1.99

$

Usually ships in 2-12 days

0

17

Ferris 5106952FS

DEFLECTOR, Motor

$99.99

$

In Stock, only 2 left!

0

18

Ferris 5107310

CIRCUIT BREAKER, 15A A-RESET
(Superseded to 5107310FS)

$9.49

$

Usually ships in 2-12 days

0

19

Ferris 5107053

CLAMP, VINYL INSULATED, .50

$2.99

$

Usually ships in 2-12 days

0

20

Ferris 5420644

HEADLIGHT ASSY - LED
(Superseded to 84006903)

$112.99

$

Usually ships in 2-12 days

0

21

Ferris 5107313

WIRE HARNESS, DEFLECTOR, Z3000 JOYSTICK
(Superseded to 5107313FS)

$71.99

$

Usually ships in 2-12 days

0

22

Ferris 5107311

FUSE HOLDER, Z3000
(Superseded to 5107311FS)

$10.99

$

Usually ships in 2-12 days

0

23

Ferris 5107312

WIRE HARNESS, MAIN, Z3000 JOYSTICK
(Superseded to 5107312FS)

$210.99

$

Usually ships in 2-12 days

0

24-1

Ferris 5601265

KIT, JOYSTICK UPDATE

Note: (S/N: 4001275566 and below)

$310.99

$

Usually ships in 2-12 days

0

24-2

Ferris 5108766

JOYSTICK ASSEMBLY, DEBRIS BLOWER
(Superseded to 5108766FS)

Note: (S/N: 4001275567 and above)

$260.99

$

In Stock, only 3 left!

0

25

Ferris 5106875FS

SCREW (#10-32 X 3/4, ALLEN, SS)

$1.99

$

Usually ships in 2-12 days

0

26

Ferris 5050927X17P5

WIRE LOOM, 3/8 ID X 17.5 IN

$2.99

$

Usually ships in 2-12 days

0

27

Ferris 5107987

CLAMP, VINYL INSULATED, .75
(Superseded to 5107987FS)

$2.99

$

Usually ships in 2-12 days

0

28

Ferris 5025672

NUT, HEX, M5X.8MM, NYLON INSERT

Note: (For headlights with 5MM studs)

$

$

Not available

29

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

30

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

31

Ferris 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 3 left!

0

32

Ferris 5025669

NUT, HEX, M6-1, NYLON INSERT

Note: (For headlights with 6MM studs)

$

$

Not available

33

Ferris 5025673

WASHER, 5MM, STAR, CZ

Note: (For headlights with 5MM studs)

$4.49

$

Usually ships in 2-12 days

0

98

Refer to: Parking Brake Group

$

$

Not available

99

Refer to: Instrument Control Panel Group

$

$

Not available
