FBSX 66 (59A40140727) - Cub Cadet Yanmar Tractor Front Blade Attachment Front Blade Sx Tractor Parts Diagram

Tractor Front Blade Attachment

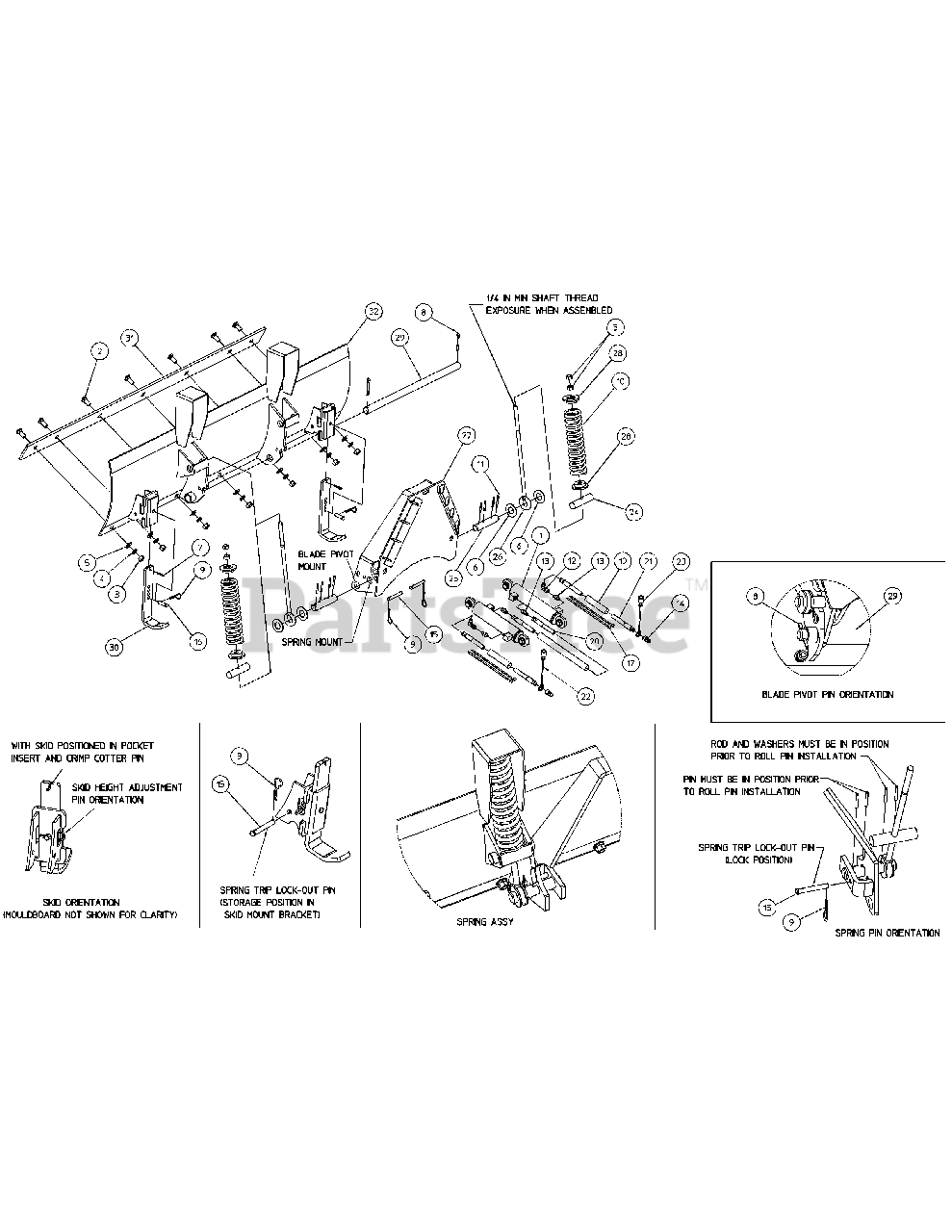

Front Blade Sx Tractor Parts Diagram

  • Title

1

Cub Cadet YS-000256

ASSY-HYD CYLINDER

$

$

Not available

2

Cub Cadet YS-006681

CARRIAGE BOLT 5/8-11X1.5

$

$

Not available

3

Cub Cadet YS-007531

NUT HEX 5/8-11

$

$

Not available

4

Cub Cadet YS-008111

LOCK WASHER 5/8

$

$

Not available

5

Cub Cadet YS-008178

FLAT WASHER 5/8 HARDENED

$

$

Not available

6

Cub Cadet YS-008206

FLAT WASHER 1-1/4 SAE

$

$

Not available

7

Cub Cadet YS-008596

COTTER PIN 1/4 X 1

$

$

Not available

8

Cub Cadet YS-008614

COTTER PIN 5/16 X 2-1/2

$

$

Not available

9

Cub Cadet YS-008624

HAIR PIN CLIP

$

$

Not available

10

Cub Cadet YS-008650

COMPRESSION SPRING

$

$

Not available

11

Cub Cadet YS-008998

ROLL PIN 1/4 X 2

$

$

Not available

12

Cub Cadet YS-011165

ELBOW 90

$

$

Not available

13

Cub Cadet YS-011194

UNION STRAIGHT

$

$

Not available

14

Cub Cadet YS-011313

COUPLER NOSE

$

$

Not available

15

Cub Cadet YS-013453

CLEVIS PIN 1/2 X 3-1/2

$

$

Not available

16

Cub Cadet YS-013455

CLEVIS PIN 1/2 X 1-3/4

$

$

Not available

17

Cub Cadet YS-014133

PLASTIC TIE

$

$

Not available

18

Cub Cadet N/A

HYDRAULIC FLUID

Note: use Cub Cadet HYDR/TRANS fluid

$

$

Currently unavailable

19

Cub Cadet YS-014209

HOSE SLEEVE 1 ID X 89

$

$

Not available

20

Cub Cadet YS-017143

HYD HOSE WITH SLEEVE 1/4 X 20

$

$

Not available

21

Cub Cadet YS-017164

HYS HOSE 1/4 X 85

$

$

Not available

22

Cub Cadet YS-024516

DUST CAP YELLOW

$

$

Not available

23

Cub Cadet YS-024518

DUST CAP RED

$

$

Not available

24

Cub Cadet YS-503913

SPRING PIVOT PIN

$

$

Not available

25

Cub Cadet YS-506179

STOP PIN

$

$

Not available

26

Cub Cadet YS-506182

EYE BOLT (SPRING MOUNT)

$

$

Not available

27

Cub Cadet YS-506190

MOUNT WELDMENT

$

$

Not available

28

Cub Cadet YS-506195

SPRING CAP WELDMENT

$

$

Not available

29

Cub Cadet YS-506202

BLADE PIVOT PIN

$

$

Not available

30

Cub Cadet YS-506203

SKID PLATE

$

$

Not available

31

Cub Cadet YS-506204

66" CUTTING EDGE PLATE

$

$

Not available

32

Cub Cadet YS-506215

66" MOULDBOARD WITH DECALS

$

$

Not available

Cub Cadet AQ-020041

Warning Label

Note: Not shown

$

$

Not available

Cub Cadet AQ-020233

Caution Label

Note: Not shown

$

$

Not available
