FC 200 - Bear Cat Forage Chopper, 208cc Briggs & Stratton (SN: H06705 & Above) Discharge Chute Parts Diagram

Forage Chopper, 208cc Briggs & Stratton

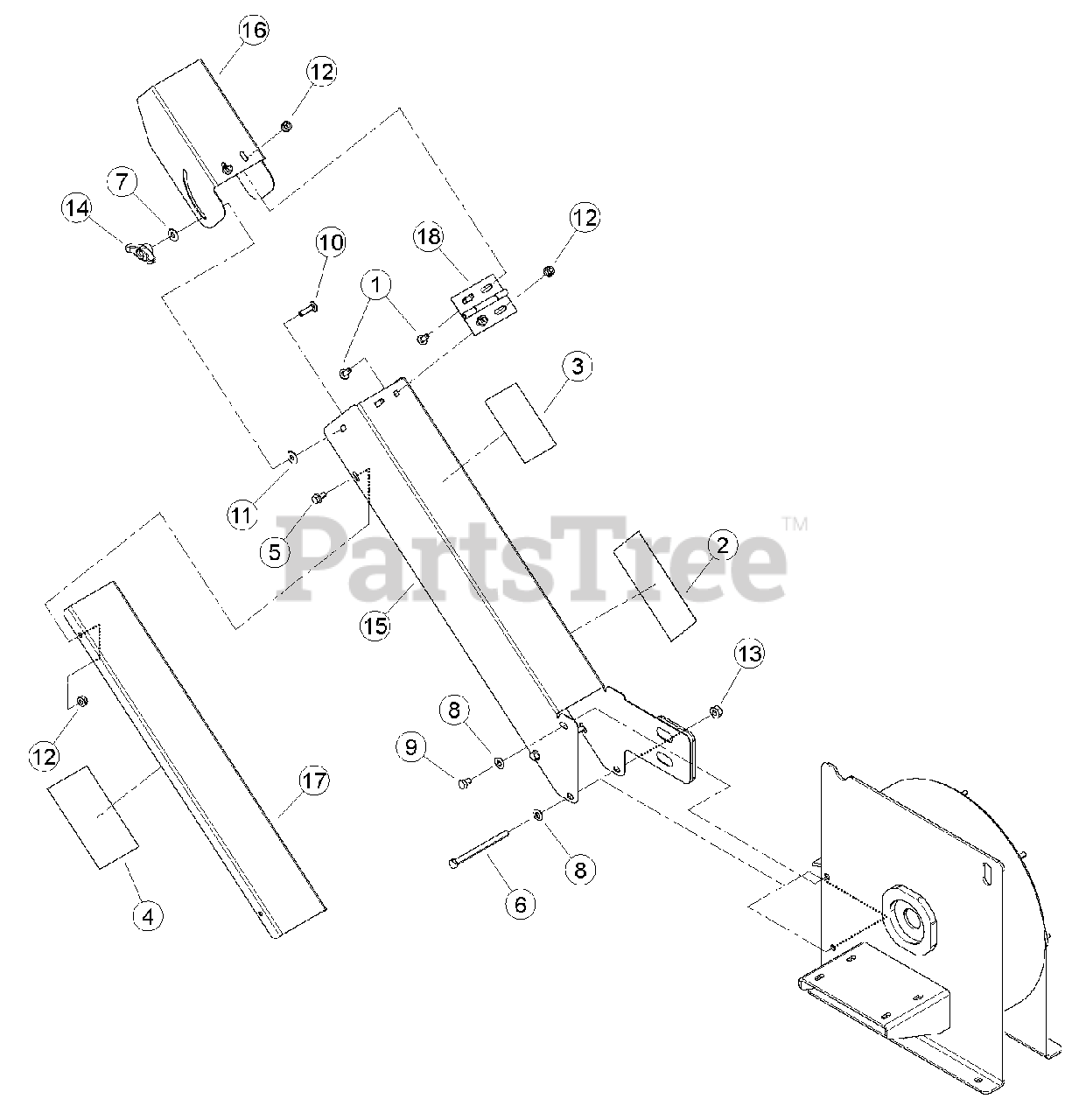

Discharge Chute Parts Diagram

  • Title

1

0103-0909-00

BOLT, 5/16-18 X 3/4 SN GR5 CRG

$

$

Not available

2

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$29.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12175

DECAL, BLADE DANGER ISO

$7.49

$

In Stock, only 1 left!

0

5

15160-00

BOLT, 5/16 X 5/8 FLANGE NC

$

$

Not available

6

15205

BOLT, 3/8 X 5" GR5 HEX CPS ZP

$

$

Not available

7

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

8

15260

WASHER, 3/8 SAE FLAT ZP

$

$

Not available

9

15275

BOLT, 3/8 X 1/2 GR5 HEX CPS ZP

$

$

Not available

10

Bear Cat 15398

BOLT, 5/16 X 1-1/4 GR5 CRG

$

$

Not available

11

Bear Cat 15409

WASHER, 5/16" ID 7/8" OD NYLON FLAT

$

$

Not available

12

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

13

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

14

Bear Cat 31994-00

KNOB, 5/16-18 UNC TEE W/ LOCKING INSERT

$9.49

$

Usually ships in 3-7 days

0

15

74247-12

WELDMENT, CHIPPER DISCHARGE

$

$

Not available

16

Bear Cat 74378-12

CAP, DISCHARGE

$

$

Not available

17

74482-12

PLATE, DISCHARGE CHUTE

$

$

Not available

18

Bear Cat 74642-12

HINGE, DISCHARGE CAP

$

$

Not available
