FC 200 - Bear Cat Forage Chopper, 208cc Briggs & Stratton (SN: H06705 & Above) Housing Parts Diagram

Forage Chopper, 208cc Briggs & Stratton

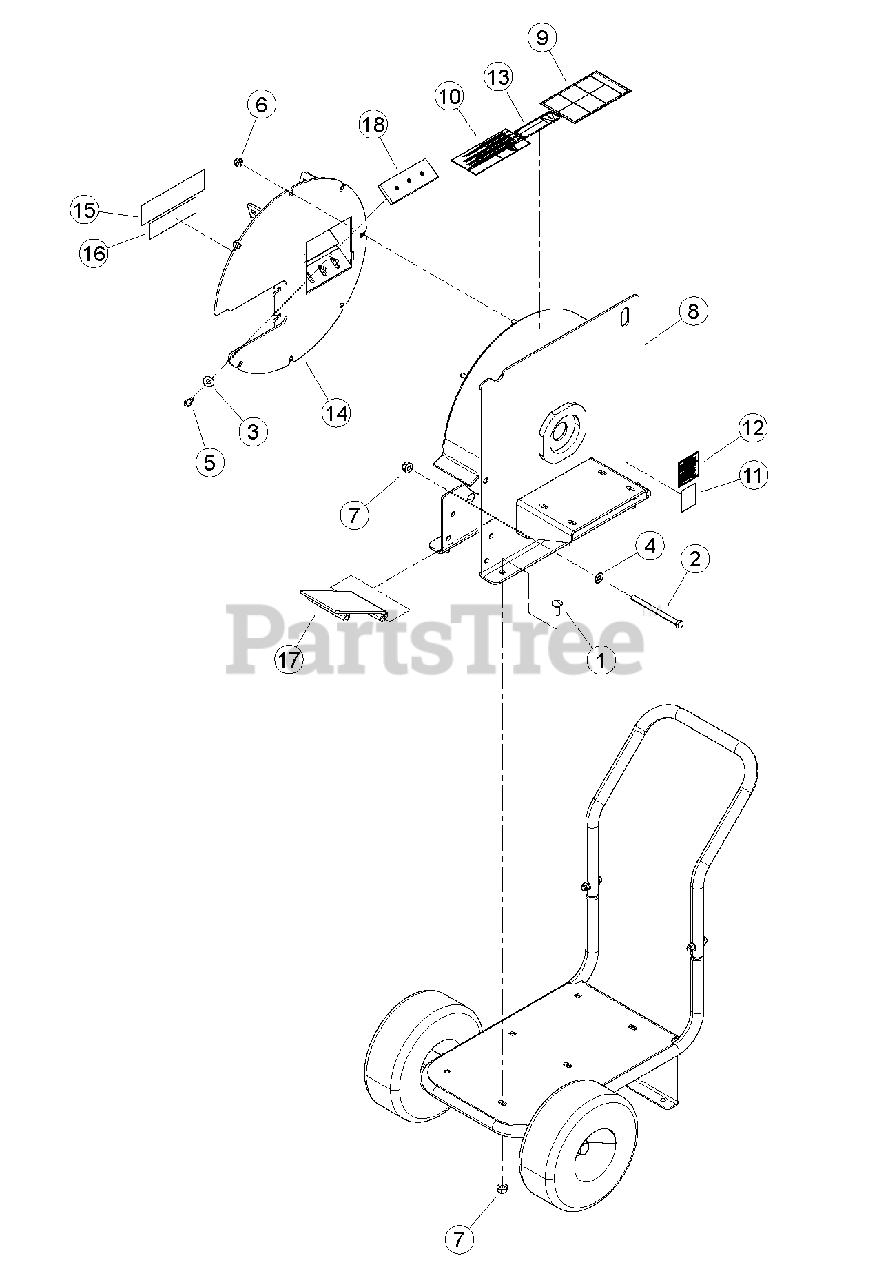

Housing Parts Diagram

  • Title

1

15057

BOLT, 3/8-16 X 1 GR5 CRG

$

$

Not available

2

15205

BOLT, 3/8 X 5" GR5 HEX CPS ZP

$

$

Not available

3

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

4

15260

WASHER, 3/8 SAE FLAT ZP

$

$

Not available

5

15300

BOLT, 5/16 X 5/8 GR5 HEX CPS ZP

$

$

Not available

6

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

7

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

8

Bear Cat 74038-00

ASSEMBLY, CHIPPER HOUSING

Note: (INCLUDES ITEMS 9-13)

$653.99

$

Usually ships in 3-7 days

0

9

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

10

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

Bear Cat 16155

DECAL, SERIAL NUMBER

Note: (NOT SHOWN)

$

$

Not available

11

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

12

33883-00

DECAL, SPARK ARRESTOR

$

$

Not available

13

34277-00

DECAL, CHOPPING CAPACITY

$

$

Not available

14

Bear Cat 74079-00

ASSEMBLY, ROTOR COVER

Note: (INCLUDES ITEMS 15 & 16)

$351.99

$

Usually ships in 3-7 days

0

15

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

16

33824-00

DECAL, MODEL FC200

$

$

Not available

17

Bear Cat 74188-12

WELDMENT, CHIP DEFLECTOR

$

$

Not available

18

Bear Cat 74529-00

ANVIL, CHIPPER

$54.99

$

Usually ships in 3-7 days

0
