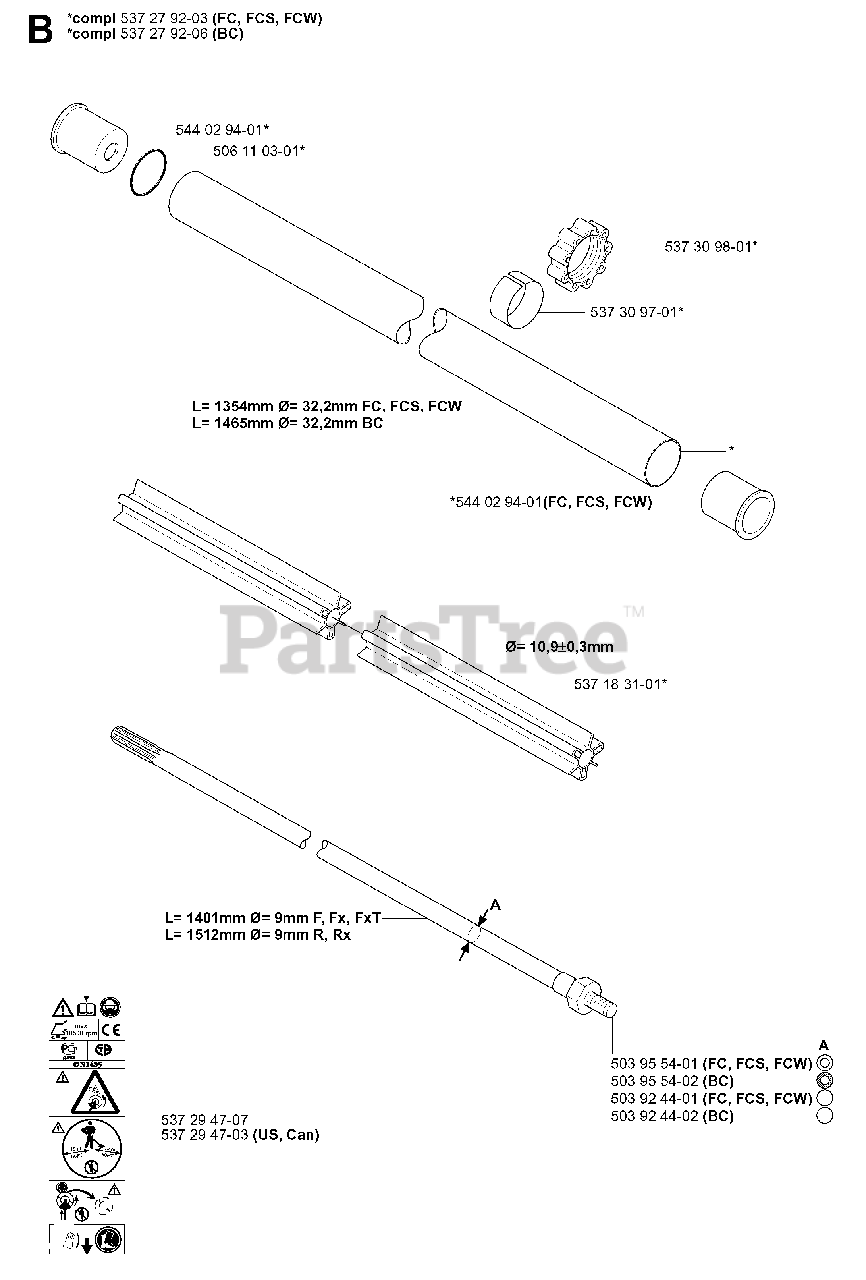

FC 2145 S - Jonsered Brushcutter (2006-01) SHAFT Parts Diagram

Brushcutter

SHAFT Parts Diagram

  • Title

5372792-03

Jonsered 537279203

TUBE
(Superseded to 577262102)

Note: FC FCS FCW

$

$

Not available

5372792-06

Jonsered 537279206

DRIVE SHAFT TUBE
(Superseded to 537279208)

Note: BC

$148.99

$

Usually ships in 3-10 days

0

5440294-01

Jonsered 544029401

SPACER SLEEVE

$5.99

$

In Stock, only 3 left!

0

5061103-01

Jonsered 506110301

No Description Available

$7.49

$

In Stock, only 3 left!

0

5372947-07

Jonsered 537294707

DECAL

$5.99

$

In Stock, only 1 left!

0

5372947-03

Jonsered 537294703

WARNING DECAL

Note: US CAN

$3.49

$

In Stock, only 1 left!

0

5039244-02

Jonsered 503924402

SHAFT

Note: BC

$68.99

$

Usually ships in 3-10 days

0

5039244-01

Jonsered 503924401

SHAFT
(Superseded to 503955401)

Note: FC FCS FCW

$79.99

$

In Stock, only 1 left!

0

5039554-02

Jonsered 503955402

SHAFT

Note: BC

$

$

Not available

5039554-01

Jonsered 503955401

SHAFT

Note: FC FCS FCW

$79.99

$

In Stock, only 1 left!

0

5371831-01

Jonsered 537183101

TUBE INSERT

$

$

Not available

5440294-01

Jonsered 544029401

SPACER SLEEVE

Note: FC FCS FCW

$5.99

$

In Stock, only 3 left!

0

5373097-01

Jonsered 537309701

%BAND
(Superseded to 537309702)

$5.99

$

Usually ships in 3-10 days

0

5373098-01

Jonsered 537309801

MOVEMENT LIMITER

$11.99

$

Usually ships in 3-10 days

0
