FC 2245 W - Jonsered Brushcutter (2011-03) IGNITION SYSTEM Parts Diagram

Brushcutter

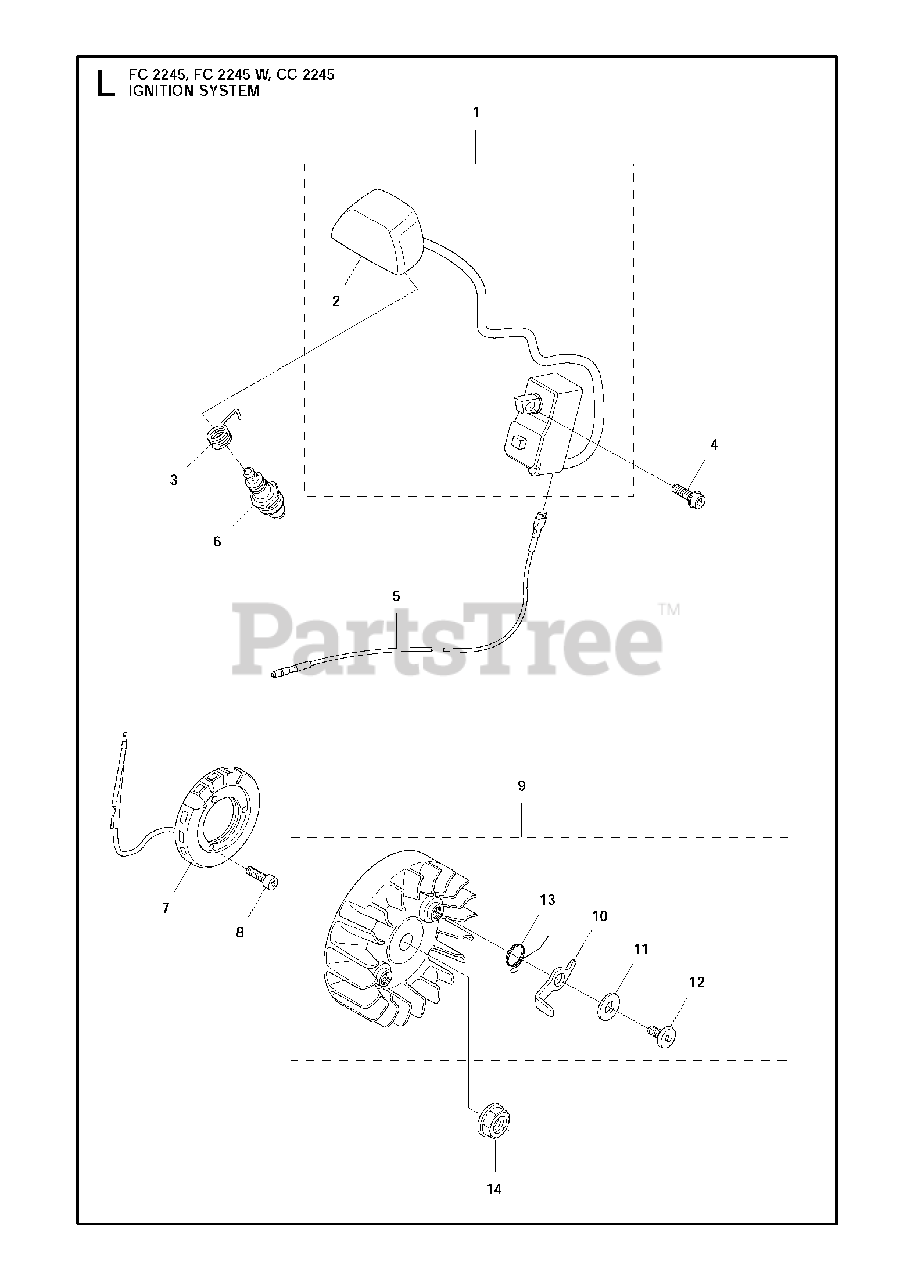

IGNITION SYSTEM Parts Diagram

  • Title

1

Jonsered 525850001

IGNITION MODULE
(Superseded to 585073901)

Note: CC

$148.99

$

Usually ships in 3-10 days

0

1

Jonsered 525850002

RP IGNITION MODULE
(Superseded to 525850003)

Note: FC FCW

$

$

Not available

2

Jonsered 537237301

CAP

Note: . 1

$

$

Not available

3

Jonsered 501485601

SPRING
(Superseded to 501485402)

$12.99

$

In Stock, Qty 20+

0

4

Jonsered 503200774

SCREW IHSCFM

$6.49

$

In Stock, only 2 left!

0

5

Jonsered 525858401

SHORT CIRCUIT CABLE

$7.99

$

Usually ships in 3-10 days

0

6

Jonsered 574519601

CMR6H SPARK PLUG NGK
(Superseded to 531008615)

$4.99

$

In Stock, Qty 20+

0

7

Jonsered 537256301

GENERATOR

$

$

Not available

8

Jonsered 503216618

SCREW

$7.49

$

In Stock, Qty 6

0

9

Jonsered 503953301

FLYWHEEL

$62.99

$

Usually ships in 3-10 days

0

9

Jonsered 503953302

FLYWHEEL

$

$

Not available

10

Jonsered 503812401

STARTER PAWL

Note: . 9

$7.99

$

Usually ships in 3-10 days

0

11

Jonsered 503230042

WASHER

Note: . 9

$6.49

$

In Stock, Qty 16

0

12

Jonsered 501819903

PIN, STARTER CATCH

Note: . 9

$9.99

$

In Stock, Qty 5

0

13

Jonsered 503812901

SPRING

Note: . 9

$3.49

$

Usually ships in 3-10 days

0

14

Jonsered 503220401

NUT W/ WASHER

$7.49

$

In Stock, Qty 6

0
