FC 2245 W - Jonsered Brushcutter (2012-12) CARBURETOR AIR FILTER Parts Diagram

Brushcutter

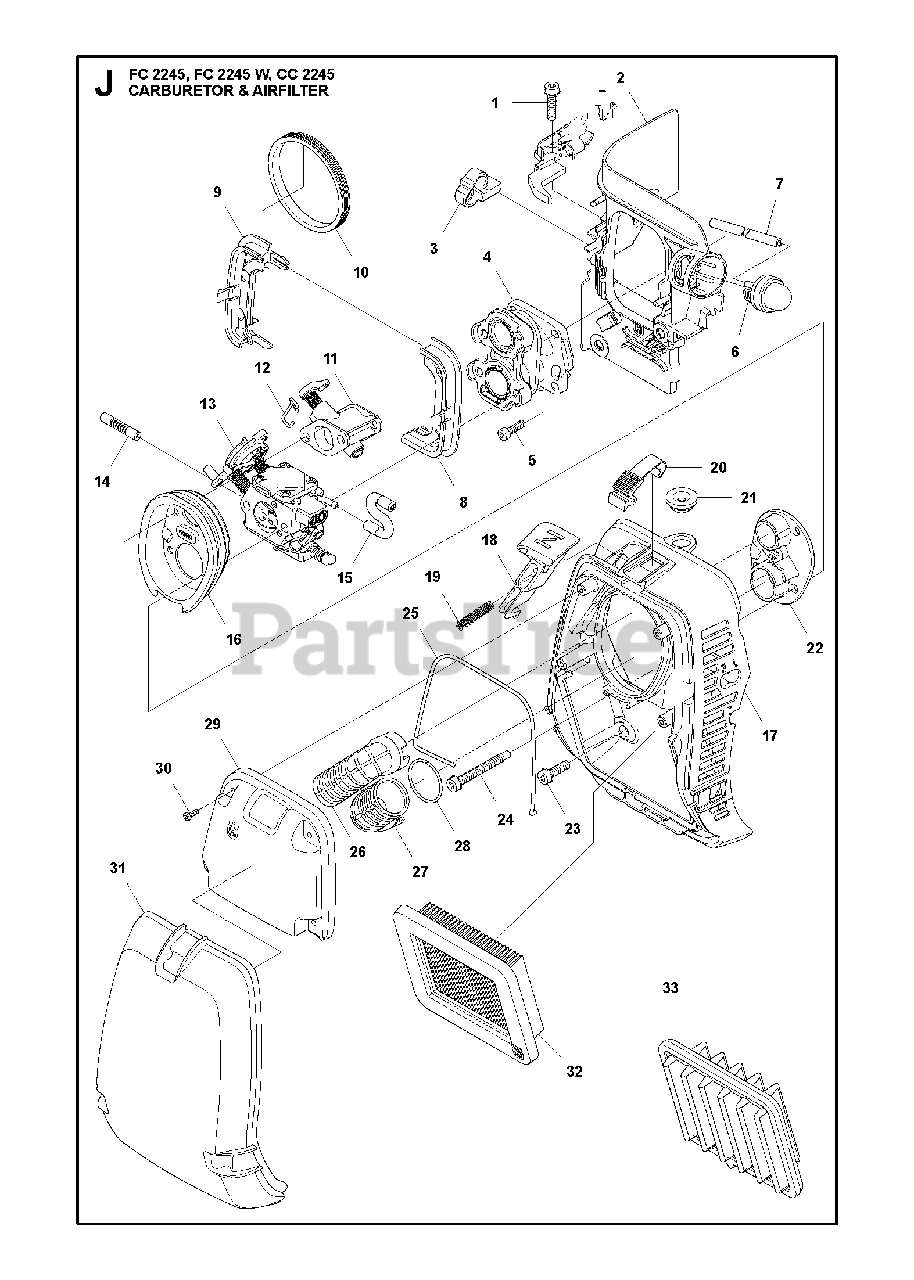

CARBURETOR AIR FILTER Parts Diagram

  • Title

1

Jonsered 503200776

SCREW

$7.49

$

In Stock, Qty 12

0

2

Jonsered 525289201

INSULATION WALL

$

$

Not available

3

Jonsered 575239501

GROMMET

$5.99

$

Usually ships in 3-10 days

0

4

Jonsered 574440301

INLET PIPE

$56.99

$

Usually ships in 3-10 days

0

5

Jonsered 503202516

SCREW

$3.49

$

In Stock, only 2 left!

0

6

Jonsered 503936601

AIR PURGE BUBBLE

$24.99

$

In Stock, Qty 20+

0

7

Jonsered 537042407

HOSE

$5.99

$

Usually ships in 3-10 days

0

8

Jonsered 576122701

FRAME

$

$

Not available

9

Jonsered 576123701

FRAME

$

$

Not available

10

Jonsered 576223701

SEALING RING

$

$

Not available

11

Jonsered 574297901

HOUSING

$28.99

$

Usually ships in 3-10 days

0

12

Jonsered 522543301

LINK

$6.99

$

Usually ships in 3-10 days

0

13

Jonsered 580803901

CARBURETOR

$125.99

$

Usually ships in 3-10 days

0

14

Jonsered 515988001

SUCTION HOSE

$

$

Not available

15

Jonsered 523056801

FUEL HOSE

$5.99

$

In Stock, Qty 5

0

16

Jonsered 574851201

SEALING

$6.99

$

Usually ships in 3-10 days

0

17

Jonsered 523044802

FILTER HOLDER ASSY

$26.53

$

Usually ships in 3-10 days

0

18

Jonsered 522449901

CHOKE CONTROL

$5.99

$

Usually ships in 3-10 days

0

19

Jonsered 524853001

SPRING

$4.99

$

Usually ships in 3-10 days

0

20

Jonsered 503740102

HOLDER

$13.99

$

In Stock, only 3 left!

0

21

Jonsered 537016501

GROMMET

$5.99

$

In Stock, only 2 left!

0

22

Jonsered 574851301

COVER PLATE
(Superseded to 577479701)

$5.99

$

In Stock, only 1 left!

0

23

Jonsered 503200774

SCREW IHSCFM

$6.49

$

In Stock, Qty 7

0

24

Jonsered 537316001

SCREW

$

$

Not available

25

Jonsered 503263204

No Description Available

$5.99

$

Usually ships in 3-10 days

0

26

Jonsered 576466201

AIR INLET

$

$

Not available

27

Jonsered 576475801

AIR INLET

$

$

Not available

28

Jonsered 576475901

LOCKING SPRING

$3.49

$

Usually ships in 3-10 days

0

29

Jonsered 575237401

No Description Available

$2.49

$

Usually ships in 3-10 days

0

30

Jonsered 503212910

SCREW

$7.49

$

In Stock, only 1 left!

0

31

Jonsered 510189702

FILTER COVER

$

$

Not available

32

Jonsered 574668001

FILTER
(Superseded to 574668002)

$18.99

$

In Stock, only 3 left!

0

33

Jonsered 537410801

FILTER
(Superseded to 537410804)

$40.99

$

Usually ships in 3-10 days

0
