FC 2255 - Jonsered Brushcutter (2011-01) IGNITION SYSTEM Parts Diagram

Brushcutter

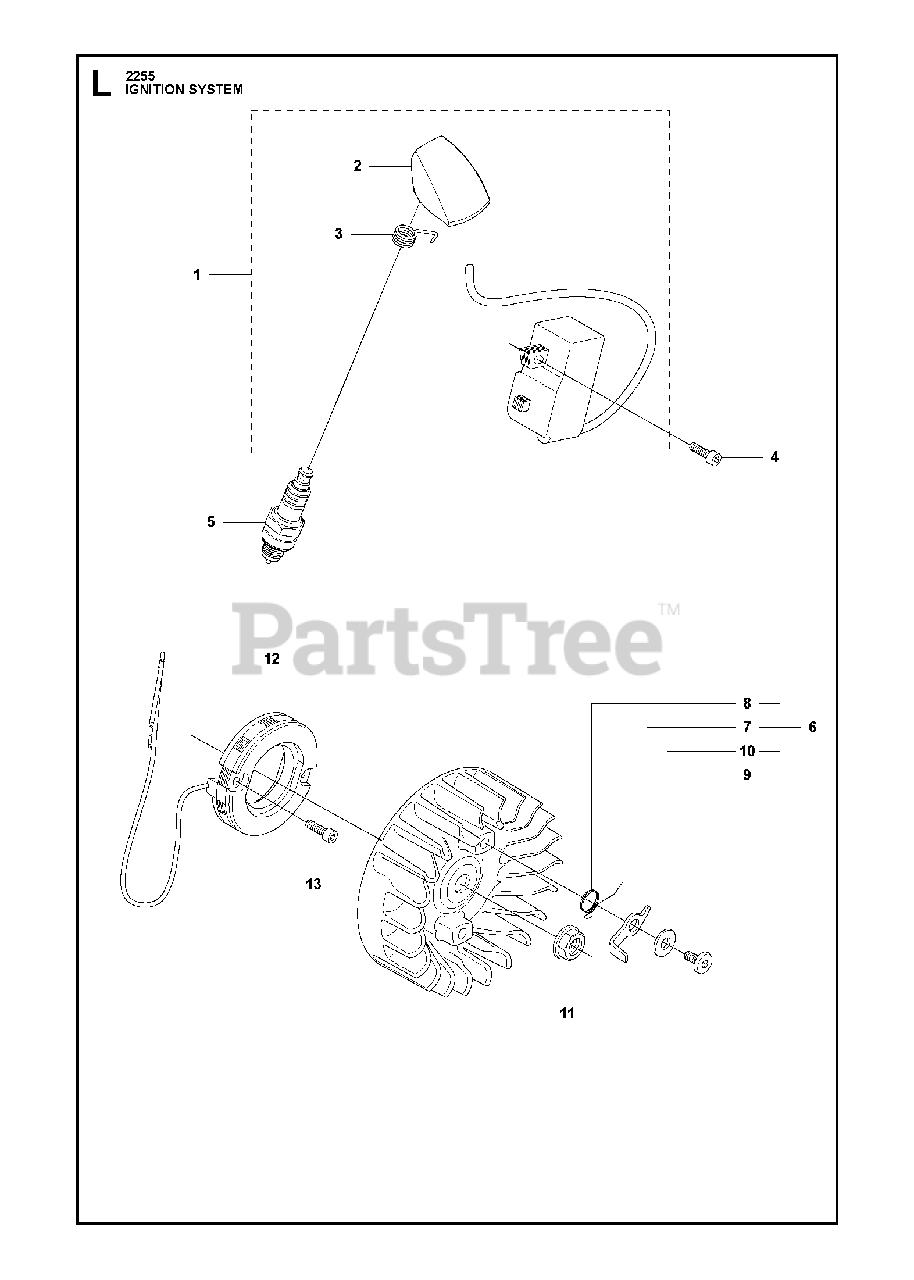

IGNITION SYSTEM Parts Diagram

  • Title

1

Jonsered 504708701

RP IGNITION MODULE
(Superseded to 576445201)

Note: Pos 2-3

$155.99

$

Usually ships in 3-10 days

0

2

Jonsered 544307001

No Description Available

Note: . 1

$

$

Not available

3

Jonsered 501485601

SPRING
(Superseded to 501485402)

Note: . 1

$16.99

$

In Stock, only 4 left!

0

4

Jonsered 503202516

SCREW

$3.49

$

Usually ships in 3-10 days

0

5

Jonsered 503235111

BPMR7A NGK SPARK PLUG

Note: NGK BPMR7A

$3.99

$

In Stock, Qty 20+

0

6

Jonsered 537240501

FLYWHEEL ASSY

Note: BC FC MC Incl Pos 7-10

$191.99

$

Usually ships in 3-10 days

0

6

Jonsered 537240502

FLYWHEEL ASSY

Note: FCW Incl Pos 7-10

$

$

Not available

7

Jonsered 503812401

STARTER PAWL

Note: . 6

$8.49

$

Usually ships in 3-10 days

0

8

Jonsered 503812901

SPRING
(Superseded to 503812902)

Note: . 6

$3.99

$

Usually ships in 3-10 days

0

9

Jonsered 501819903

PIN, STARTER CATCH

Note: . 6

$7.49

$

In Stock, only 2 left!

0

10

Jonsered 503230042

WASHER

Note: . 6

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 503220401

NUT W/ WASHER

$5.49

$

In Stock, Qty 11

0

12

Jonsered 537256302

GENERATOR STARTER

Note: FCW

$101.99

$

Usually ships in 3-10 days

0

13

Jonsered 544444301

SCREW

Note: FCW

$

$

Not available
