FC 2255 W - Jonsered Brushcutter (2011-01) BEVEL GEAR Parts Diagram

Brushcutter

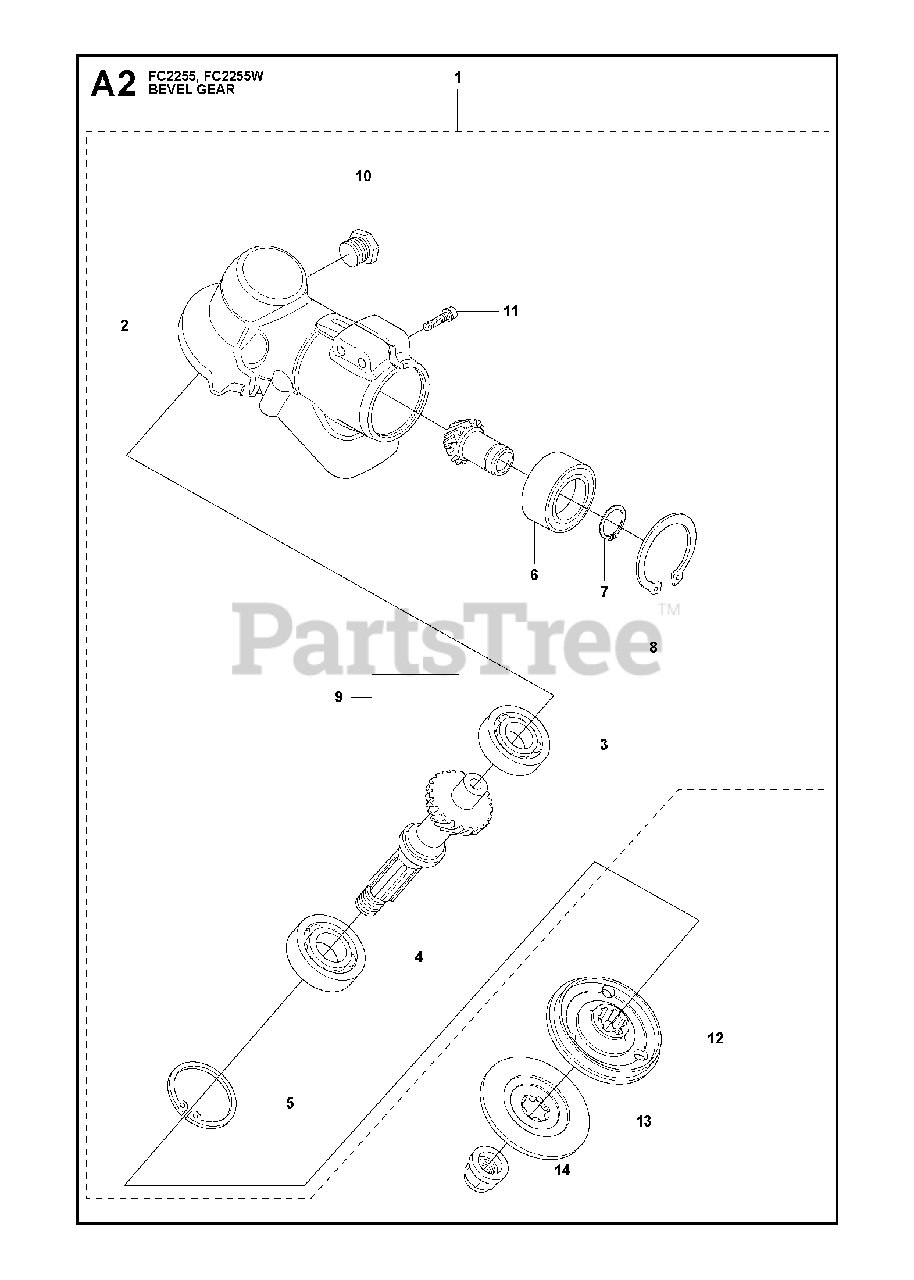

BEVEL GEAR Parts Diagram

  • Title

1

Jonsered 537428204

BEVEL GEAR

Note: Incl Pos 2-11

$341.99

$

Usually ships in 3-10 days

0

2

Jonsered 537428301

%GEAR HOUSING
(Superseded to 537428202)

Note: . 1

$341.99

$

Usually ships in 3-10 days

0

3

Jonsered 738210110

BALL BEARING

Note: . 1

$13.99

$

In Stock, only 2 left!

0

4

Jonsered 503252501

No Description Available

Note: . 1

$

$

Not available

5

Jonsered 735313310

RETAINING RING SGH 35

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

6

Jonsered 503251801

BEARING

Note: . 1

$28.99

$

Usually ships in 3-10 days

0

7

Jonsered 735311700

RETAINING RING SGA 15

Note: . 1

$3.49

$

In Stock, Qty 6

0

8

Jonsered 735313110

RETAINING RING

Note: . 1

$3.49

$

In Stock, only 2 left!

0

9

Jonsered 502434701

BEVEL GEAR
(Superseded to 537428202)

Note: Kit. 1

$341.99

$

Usually ships in 3-10 days

0

10

Jonsered 503201501

PLUG

Note: . 1

$5.99

$

In Stock, only 4 left!

0

11

Jonsered 725537265

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

12

Jonsered 544197801

DRIVER

$39.99

$

Usually ships in 3-10 days

0

13

Jonsered 544217801

SUPPORT FLANGE
(Superseded to 537343502)

$22.99

$

In Stock, only 2 left!

0

14

Jonsered 503227301

BLADE NUT
(Superseded to 502291101)

$7.99

$

In Stock, only 2 left!

0
