FC (990129) - Simplicity Two-Wheeled Tractor, 4hp Tractor Group - Parts List (3585I02) Parts Diagram

Two-Wheeled Tractor, 4hp

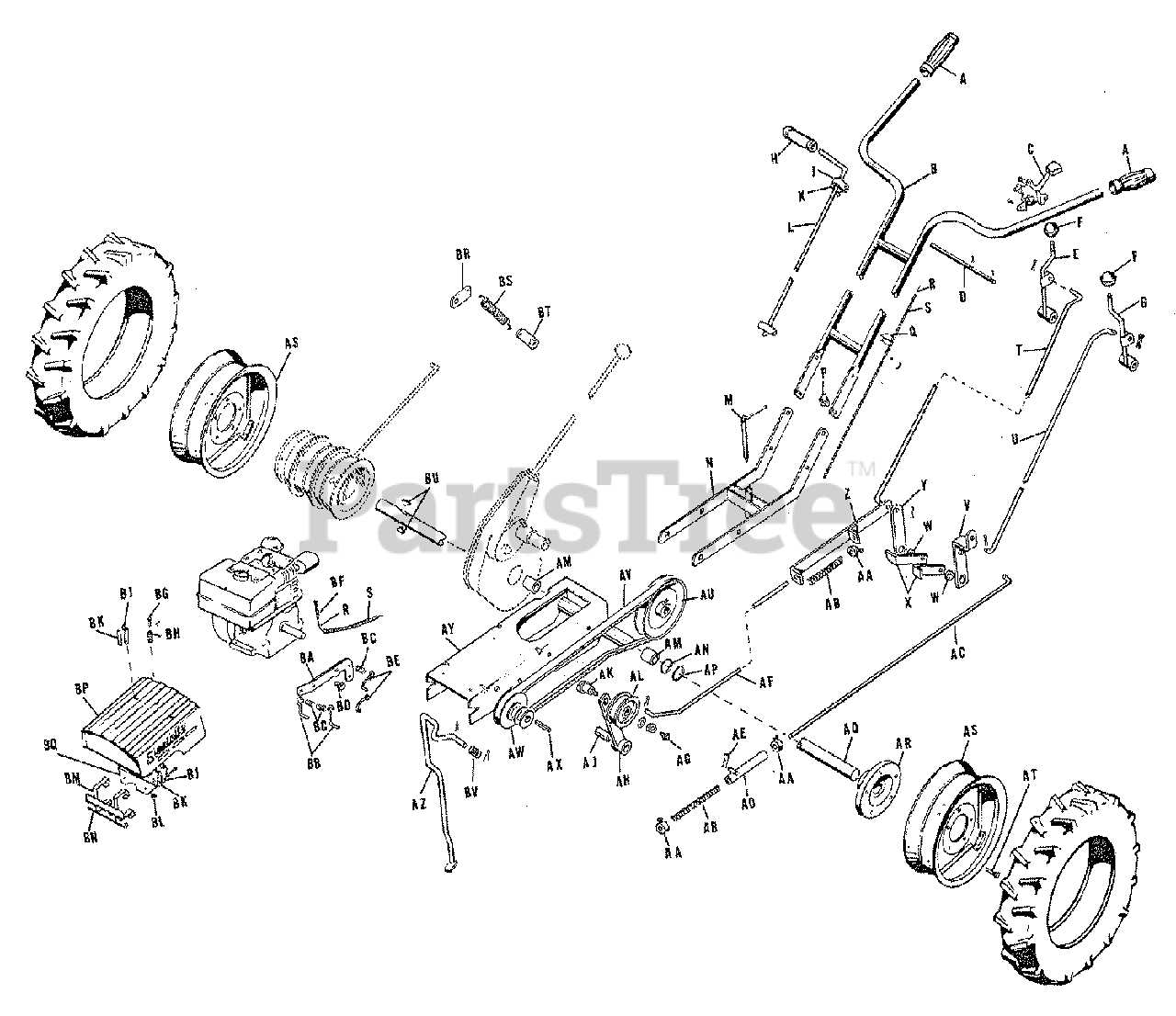

Tractor Group - Parts List (3585I02) Parts Diagram

  • Title

A

Simplicity 2153043

GRIP, Handle

$

$

Not available

B

Simplicity 8063502

HANDLE ASSEMBLY

$

$

Not available

C

Simplicity 8061087

CONTROL, Throttle Lever

$

$

Not available

D

Simplicity 151037

SHAFT, Lever

$

$

Not available

E

Simplicity 8021507

LEVER ASSEMBLY, R.H. Clutch

$

$

Not available

F

Simplicity 1729255SM

BALL, Clutch Lever

$12.99

$

In Stock, only 1 left!

0

G

Simplicity 8051506

LEVER ASSEMBLY, L.H. Clutch

$

$

Not available

H

Simplicity 153017

GRIP

$

$

Not available

J

Simplicity 153074

GUIDE, Rod

$

$

Not available

K

Simplicity 2121175SM

LINER

$7.99

$

Usually ships in 2-12 days

0

L

Simplicity 151035

ROD ASSEMBLY, Shift

$

$

Not available

M

Simplicity 8061502

PIN ASSEMBLY, Hitch

$

$

Not available

N

Simplicity 8023509

FRAME ASSEMBLY

$

$

Not available

P

Simplicity 8061117

CLAMP, Cable

$

$

Not available

Q

Simplicity 80611-08

CLIP, Cable

$

$

Not available

R

Simplicity 152016

WIRE, Throttle

$

$

Not available

S

Simplicity 151016

CABLE, Throttle

$

$

Not available

T

Simplicity 8051014

ROD, Upper Idler

$

$

Not available

U

Simplicity 8021122

ROD, Upper Clutch

$

$

Not available

V

Simplicity 8021091

LEVER, Lower Clutch

$

$

Not available

W

Simplicity 1663752SM

BUSHING

$5.99

$

In Stock, only 4 left!

0

X

Simplicity 8021121

STOP, Lever

$

$

Not available

Y

Simplicity 8051030

LEVER, Pivot

$

$

Not available

Z

Simplicity 1729265SM

GUIDE ASSEMBLY, Idler Clutch Rod

$41.99

$

Usually ships in 2-12 days

0

AA

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

AB

Simplicity 1729277SM

SPRING, Idler Rod

$6.99

$

Usually ships in 2-12 days

0

AC

Simplicity 151015

ROD, Lower, Clutch

$

$

Not available

AD

Simplicity 8161518

SOCKET ASSEMBLY, Rod

$

$

Not available

AE

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

AF

Simplicity 8151069

ROD, Lower Idler

$

$

Not available

AG

Simplicity 2727004

FITTING, Grease, Alemite #1911

$

$

Not available

AH

Simplicity 151031

LEVER ASSEMBLY, Idler

$

$

Not available

AJ

Simplicity 1729261SM

SPACER, Idler Lever

$13.99

$

Usually ships in 2-12 days

0

AK

Simplicity 8151059

PIN, Idler Pulley

$

$

Not available

AL

Simplicity 2156124SM

PULLEY ASSEMBLY, Idler

$

$

Not available

AM

Simplicity 153089

BEARING, Axle

$

$

Not available

AN

Simplicity 153088

WASHER

$

$

Not available

AP

Simplicity 121128

RING, Retaining

$

$

Not available

AQ

Simplicity 151041

AXLE

$

$

Not available

AR

Simplicity 2151024

HUB, Wheel, L.H.

$

$

Not available

AS

Simplicity 8262023

WHEEL (Specify Color)

$

$

Not available

AT

Simplicity 1729280SM

BOLT, Hub

$6.49

$

In Stock, Qty 7

0

AU

Simplicity 151043

PULLEY, Transmission

$

$

Not available

AV

Simplicity 2106016

V" BELT, 46" Long`

$

$

Not available

AW

Simplicity 151038

PULLEY, Engine

$

$

Not available

AX

Simplicity 1729279SM

KEY, Engine Pulley
(Superseded to 703889)

$4.49

$

In Stock, Qty 5

0

AY

Simplicity 151028

BASE ASSEMBLY

$

$

Not available

AZ

Simplicity 152011

STAND ASSEMBLY

$

$

Not available

BA

Simplicity 153025

HOLDER, Belt Stop

$

$

Not available

BB

Simplicity 1729264

STOP, Belt

$

$

Not available

BC

Simplicity 1729277SM

SPRING

$6.99

$

Usually ships in 2-12 days

0

BD

Simplicity 2705026

SCREW, Hex Head Cap, 5/16"-18 x 1/2"

$

$

Not available

BE

Simplicity 8021014

STOP, Belt

$

$

Not available

BF

Simplicity 121122

SPRING, Throttle Wire

$

$

Not available

BG

Simplicity 121183

PIN, Hood

$

$

Not available

BH

Simplicity 2153010SM

SPRING, Hood

$8.99

$

Usually ships in 2-12 days

0

BJ

Simplicity 153008

LATCH

$

$

Not available

BK

Simplicity 151048

LATCH, Stub

$

$

Not available

BL

Simplicity 2717513

NUT, Hex, Full Lock 1/4"-20

$

$

Not available

BM

Simplicity 153149

SUPPORT ASSEMBLY, Hood Pivot

$

$

Not available

BN

Simplicity 153005

PIN, Hinge

$

$

Not available

BP

Simplicity 151046

HOOD ASSEMBLY

$

$

Not available

BQ

Simplicity 151058

BRACKET, Hood

$

$

Not available

BR

Simplicity 8151036

HOLDER, Spring, Upper

$

$

Not available

BS

Simplicity 8111047

SPRING

$

$

Not available

BT

Simplicity 8151035

HOLDER, Spring, Lower

$

$

Not available

BU

Simplicity 2725501

KEY, Hi-Pro, HP-608

$

$

Not available

BV

Simplicity 2152006SM

SPRING, Stand

$8.49

$

Usually ships in 2-12 days

0
