FC (990129) - Simplicity Two-Wheeled Tractor, 4hp Transmission Group (3585I04) Parts Diagram

Two-Wheeled Tractor, 4hp

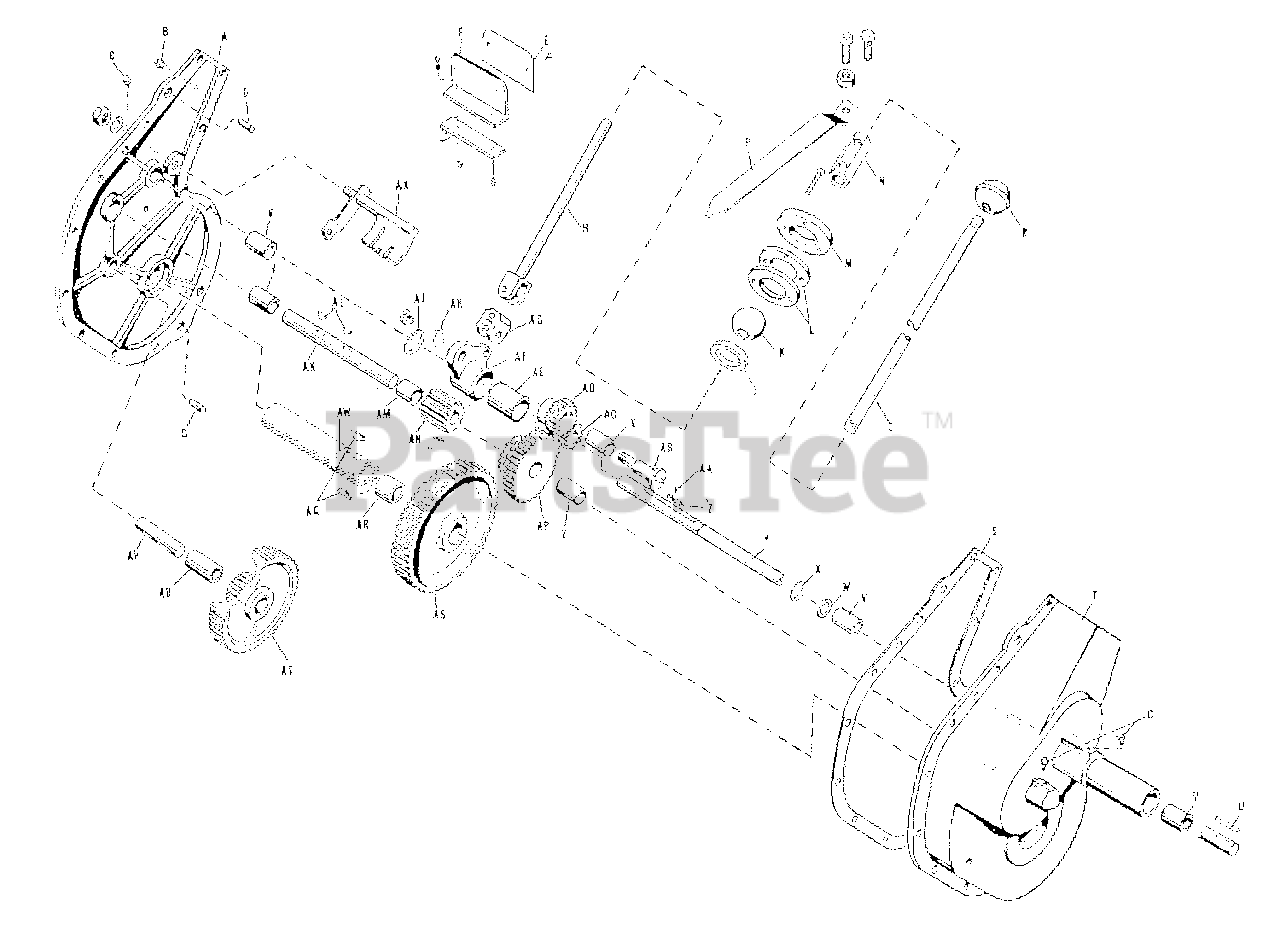

Transmission Group (3585I04) Parts Diagram

  • Title

A

Simplicity 151020

COVER, Gear Case

$

$

Not available

B

Simplicity 2727002

GREASE FITTING, Alemite #1641

$

$

Not available

C

Simplicity 2727005

GREASE FITTING, Alemite #1909

$

$

Not available

D

Simplicity 8051053

PIN, Dowel

$

$

Not available

E

Simplicity 151042

PLATE, Serial and Shift Instruction

$

$

Not available

F

Simplicity 151005

BRACKET, Shift Instruction Plate

$

$

Not available

G

Simplicity 8051029

HOLDER, Shift Instruction Plate, Bracket

$

$

Not available

H

Simplicity 8051504

CLEVIS ASSEMBLY, Pitman

$

$

Not available

J

Simplicity 8051060

WASHER, Shift Ball

$

$

Not available

K

Simplicity 8051044

BALL, Gear Shift

$

$

Not available

L

Simplicity 8051059

SPACER, Shift Ball

$

$

Not available

M

Simplicity 8051047

RETAINER, Shift Ball

$

$

Not available

N

Simplicity 8061030

COUPLING, Gear Shift Handle

$

$

Not available

P

Simplicity 8051028

POINTER, Shifter

$

$

Not available

Q

Simplicity 8051013

EXTENSION, Gear Shift Handle

$

$

Not available

R

Simplicity 1676743SM

BALL, Shift Lever

$19.99

$

Usually ships in 2-12 days

0

S

Simplicity 8053001

GASKET, Gear Case

$

$

Not available

T

Simplicity 151019

CASE, Gear

$

$

Not available

U

Simplicity 8051061

KEY, Transmission Pulley

$

$

Not available

V

Simplicity 2156064SM

BEARING

$22.99

$

Usually ships in 2-12 days

0

W

Simplicity 2860207SM

WASHER, Spacer

$3.49

$

Usually ships in 2-12 days

0

X

Simplicity 8051039

RING, Retaining

$

$

Not available

Y

Simplicity 8052003

SHAFT, Transmission Pulley

$

$

Not available

Z

Simplicity 8051034

KEY, Transmission Slide

$

$

Not available

AA

Simplicity 8051035

PLATE, Slide Key Lock

$

$

Not available

AB

Simplicity 8061005

PIN, Rocker Arm Pinion

$

$

Not available

AC

Simplicity 8051005

GEAR, Transmission Slide

$

$

Not available

AD

Simplicity 8051004

PINION, Rocker Arm with Bearing

$

$

Not available

AE

Simplicity 8051033

BEARING, Rocker Arm

$

$

Not available

AF

Simplicity 8051502

ARM, Rocker Assembly

$

$

Not available

AG

Simplicity 8061026

PITMAN, Gear Shift

$

$

Not available

AH

Simplicity 8061119

PLATE, Lock

$

$

Not available

AJ

Simplicity 8051040

RING, Retaining

$

$

Not available

AK

Simplicity 8051010

SHAFT, Transmission Pinion

$

$

Not available

AL

Simplicity 2725002

KEY, Woodruff, 5/32 x 5/8"

$

$

Not available

AM

Simplicity 8051018

SPACER, Transmission Pinion Shaft

$

$

Not available

AN

Simplicity 8051008

GEAR, "High"

$

$

Not available

AP

Simplicity 8051501

GEAR ASSEMBLY, Cluster

$

$

Not available

AQ

Simplicity 2151040SM

KEY, Drive Gear

$9.49

$

In Stock, only 2 left!

0

AR

Simplicity 2153068SM

BEARING

$31.99

$

Usually ships in 2-12 days

0

AS

Simplicity 151027

GEAR, Drive

$

$

Not available

AT

Simplicity 8021503

GEAR ASSEMBLY, Cluster

$

$

Not available

AU

Simplicity 8021032

BUSHING, Intermediate, 5/8" x 3/4" x 1-7/16"

$

$

Not available

AV

Simplicity 8051012

SPINDLE, Intermediate

$

$

Not available

AW

Simplicity 121167

RING, Snap

$

$

Not available

AX

Simplicity 151002

GUIDE ASSEMBLY, Shift

$

$

Not available
