FC150V-ES10 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

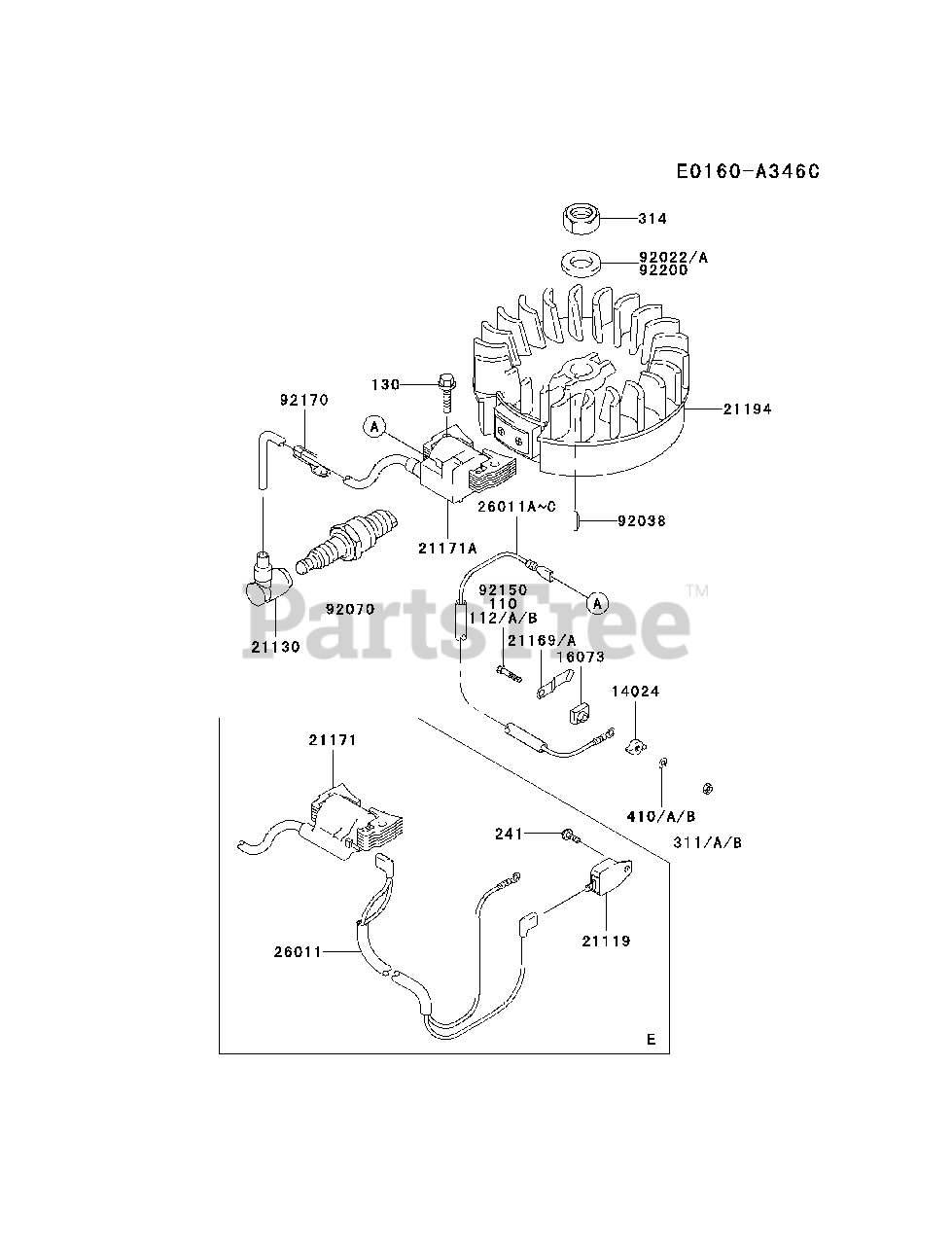

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

14024

Kawasaki 14024-2183

COVER
(Superseded to 14090-2108)

$0.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-2124

INSULATOR

$

$

Not available

21119

Kawasaki 211192139

IGNITER
(Superseded to 21119-2119)

$112.99

$

In Stock, only 1 left!

0

21130

Kawasaki 211302060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, only 2 left!

0

21169

Kawasaki 211692066

TERMINAL

$1.49

$

In Stock, Qty 5

0

21171

Kawasaki 211712176

COIL-ASSY-IGNITION
(Superseded to 21171-2153)

$104.99

$

Usually ships in 2-5 days

0

21194

Kawasaki 21194-2290

FLYWHEEL-COMP

$133.99

$

In Stock, only 1 left!

0

26011

Kawasaki 260112279

WIRE-LEAD

$5.49

$

Usually ships in 2-5 days

0

26011C

Kawasaki 260112306

WIRE-LEAD
(Superseded to 260112355)

$7.49

$

Usually ships in 2-5 days

0

92022

Kawasaki 920222102

WASHER

$13.99

$

Usually ships in 2-5 days

0

92038

Kawasaki 920382077

KEY

$3.49

$

In Stock, Qty 10

0

92070

Kawasaki 92070-2088

PLUG-SPARK,BPR5ES
(Superseded to BPR5ES)

Note: NGK

$3.99

$

In Stock, Qty 20+

0

92170

Kawasaki 92170-2064

CLAMP

$

$

Not available

110

Kawasaki 110B0522

BOLT-FLANGED
(Superseded to 112AA0522)

Note: Substitute part, supplied until the stock is exhausted.

$0.99

$

Usually ships in 2-5 days

0

112

Kawasaki 112B0522

BOLT-UPSET
(Superseded to 110B0522)

$0.99

$

Usually ships in 2-5 days

0

112B

Kawasaki 112B0522

BOLT-UPSET
(Superseded to 110B0522)

$0.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130G0625

BOLT-FLANGED
(Superseded to 130BA0625)

$1.49

$

In Stock, Qty 8

0

241

Kawasaki 241B0412

SCREW-PAN-WP+-
(Superseded to 241AA0412)

$0.99

$

Usually ships in 2-5 days

0

311A

Kawasaki 311B0500

NUT-HEX
(Superseded to 311AA0500)

$0.99

$

Usually ships in 2-5 days

0

314

Kawasaki 314G1400

NUT-HEX-FINE
(Superseded to 314G1400A)

$1.99

$

In Stock, Qty 7

0

410A

Kawasaki 410B0500

W-PLAIN-S
(Superseded to 410AA0500)

$0.99

$

In Stock, Qty 6

0
