FC150V-GS11 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

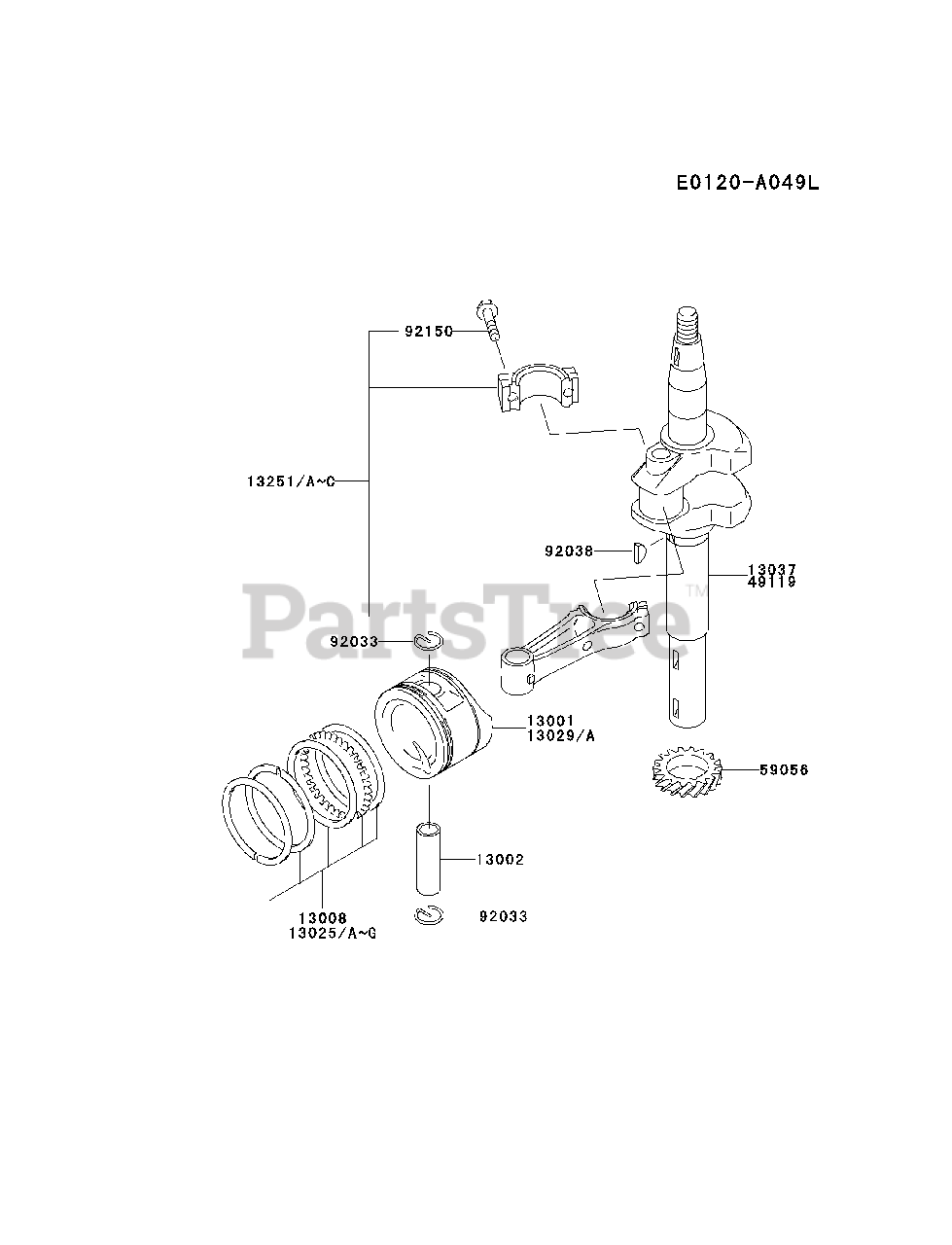

PISTON/CRANKSHAFT Parts Diagram

  • Title

13001

Kawasaki 13001-2109

PISTON-ENGINE

$

$

Not available

13002

Kawasaki 13002-2074

PIN-PISTON

$

$

Not available

13008

Kawasaki 13008-6030

RING-SET-PISTON
(Superseded to 13008-7001)

$43.99

$

In Stock, Qty 7

0

13025A

Kawasaki 13025-6003

RING-SET-PISTON L,0.25

$

$

Not available

13025C

Kawasaki 13025-6004

RING-SET-PISTON L,0.50

$

$

Not available

13025E

Kawasaki 13025-6013

RING-SET-PISTON L,0.25
(Superseded to 13025-6003)

Note: Substitute part, supplied until the stock is exhausted.

$

$

Not available

13025G

Kawasaki 13025-6014

RING-SET-PISTON L,0.50
(Superseded to 13025-6004)

Note: Substitute part, supplied until the stock is exhausted.

$

$

Not available

13029

Kawasaki 13029-2094

PISTON-ENGINE L,0.25

$40.99

$

Usually ships in 2-5 days

0

13029A

Kawasaki 13029-2095

PISTON-ENGINE L,0.50

$

$

Not available

13251B

Kawasaki 13251-6031

ROD-ASSY-CONNECTING
(Superseded to 13251-6061)

$66.99

$

Usually ships in 2-5 days

0

13251C

Kawasaki 13251-6032

ROD-ASSY-CONNECTING,U/S=0.50

$

$

Not available

49119

Kawasaki 49119-2167

CRANKSHAFT-ASSY
(Superseded to 49119-2169)

$188.99

$

Usually ships in 2-5 days

0

59056

Kawasaki 59056-2726

GEAR-HELICAL

$

$

Not available

92033

Kawasaki 92033-2161

RING-SNAP

$

$

Not available

92038

Kawasaki 920382093

KEY

$1.99

$

In Stock, Qty 10

0

92150

Kawasaki 92150-2122

BOLT,CONNECTING ROD
(Superseded to 92153-2097)

$3.49

$

Usually ships in 2-5 days

0
