FC290V-BS05 - Kawasaki Engine

Engine

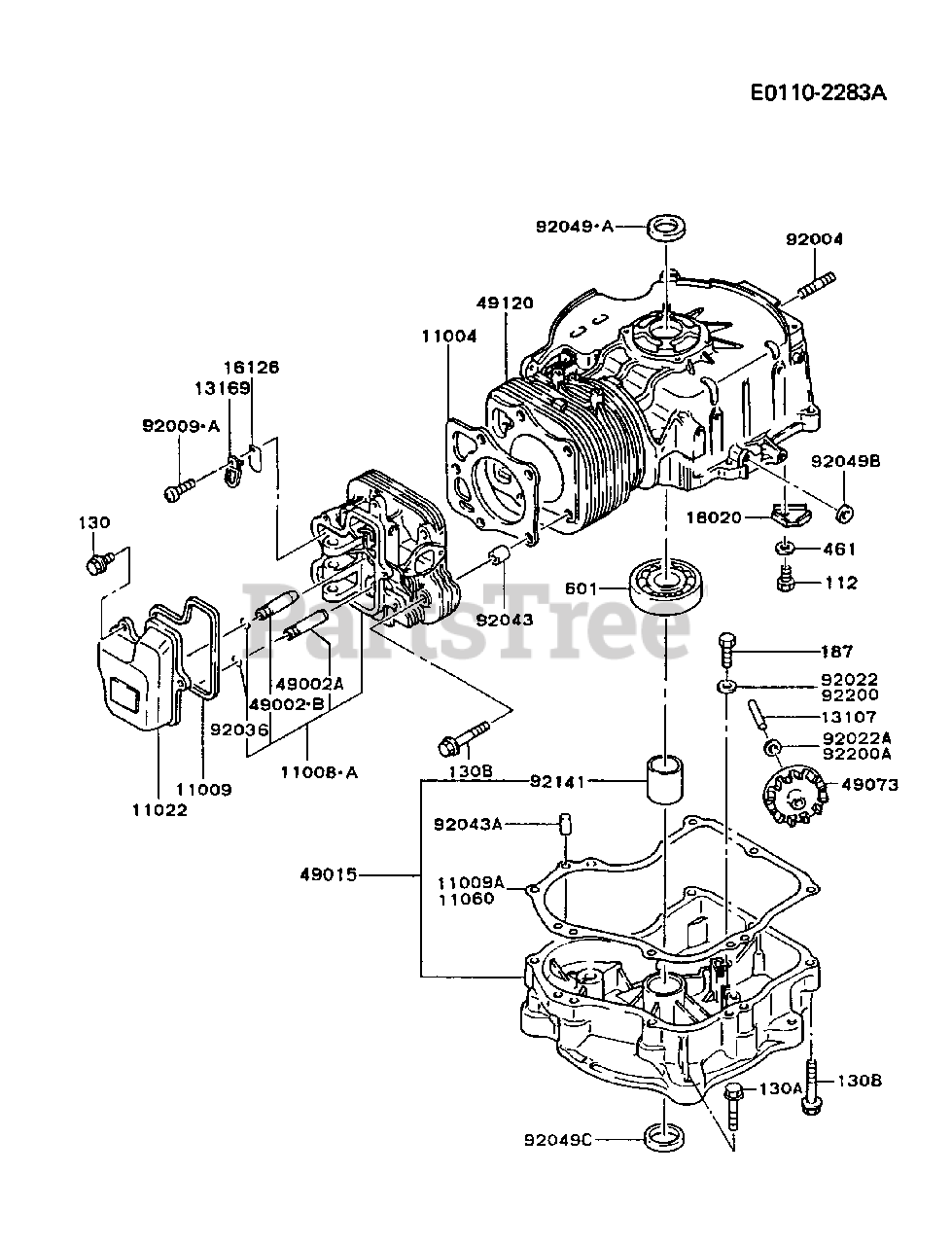

FC290V-BS05 - Kawasaki Engine > Parts Diagrams (13) > CYLINDER/CRANKCASE

  • Title
11004-2086

11004

GASKET-HEAD

Part# 11004-2086

OEM Warranty Repair Part for Kawasaki

Not available

11008-6002

11008

HEAD-COMP-CYLINDER

Part# 11008-6002 (Superseded to 11008-6027)

OEM Warranty Repair Part for Kawasaki

Not available

11008-6014

11008A

HEAD-COMP-CYLINDER

Part# 11008-6014 (Superseded to 11008-6027)

OEM Warranty Repair Part for Kawasaki

Not available

11009-2421

11009

GASKET,ROCKER CASE

Part# 11009-2421

OEM Warranty Repair Part for Kawasaki

Not available

11009-2426

11009A

GASKET,CRANKCASE COVER

Part# 11009-2426

OEM Warranty Repair Part for Kawasaki

Not available

11022-2054

11022

CASE-ROCKER

Part# 11022-2054

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 3 to 6 business days

Your price: $22.63

11060-2013

11060

GASKET,CRANKCASE COVER

Part# 11060-2013

OEM Warranty Repair Part for Kawasaki

Not available

13107-2089

13107

SHAFT

Part# 13107-2089

OEM Warranty Repair Part for Kawasaki

Not available

13169-2414

13169

PLATE

Part# 13169-2414

OEM Warranty Repair Part for Kawasaki

Not available

16126-2107

16126

VALVE

Part# 16126-2107

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 1 business day

Your price: $0.34

18020-2053

18020

BAFFLE

Part# 18020-2053

OEM Warranty Repair Part for Kawasaki

Not available

49002-2075

49002

GUIDE-VALVE

Part# 49002-2075 (Superseded to 49002-2101)

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 3 to 6 business days

Your price: $14.68

49002-2076

49002A

GUIDE-VALVE

Part# 49002-2076

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 3 to 6 business days

Your price: $10.53

49002-2101

49002B

GUIDE-VALVE

Part# 49002-2101 (Superseded to 49002-2075)

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 3 to 6 business days

Your price: $14.68

49015-6008

49015

COVER-CRANKCASE

Part# 49015-6008 (Superseded to 49015-6173)

OEM Warranty Repair Part for Kawasaki

Not available

49073-2053

49073

SLINGER-OIL

Part# 49073-2053

OEM Warranty Repair Part for Kawasaki

Not available

49120-6009

49120

CRANKCASE-COMP

Part# 49120-6009 (Superseded to 49120-6105)

OEM Warranty Repair Part for Kawasaki

Not available

92004-2083

92004

STUD,6X14

Part# 92004-2083

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 3 to 6 business days

Your price: $1.07

92009-2104

92009

SCREW

Part# 92009-2104 (Superseded to 92009-2308)

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 1 business day

Your price: $0.20

92009-2308

92009A

SCREW

Part# 92009-2308

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 1 business day

Your price: $0.20

92022-2130

92022

WASHER

Part# 92022-2130

OEM Warranty Repair Part for Kawasaki

Currently unavailable

92022-2131

92022A

WASHER

Part# 92022-2131

OEM Warranty Repair Part for Kawasaki

Not available

92036-023

92036

RING-SNAP

Part# 92036-023

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 1 business day

Your price: $0.22

92043-1037

92043

PIN

Part# 92043-1037

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 1 business day

Your price: $0.40

92043-1263

92043A

PIN

Part# 92043-1263

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 1 business day

Your price: $0.20

92049-2006

92049

SEAL-OIL

Part# 92049-2006

OEM Warranty Repair Part for Kawasaki

Not available

92049-2006

92049A

SEAL-OIL

Part# 92049-2006

OEM Warranty Repair Part for Kawasaki

Not available

92049-2097

92049B

SEAL-OIL

Part# 92049-2097

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 1 business day

Your price: $1.35

92049-2101

92049C

SEAL-OIL

Part# 92049-2101 (Superseded to 92049-2230)

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 3 to 6 business days

Your price: $5.78

92141-2091

92141

BEARING-PLANE

Part# 92141-2091

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 3 to 6 business days

Your price: $9.35

92200-2033

92200

WASHER,5X16X0.8

Part# 92200-2033

OEM Warranty Repair Part for Kawasaki

Not available

92200-2034

92200A

WASHER,6X12X1.6

Part# 92200-2034

OEM Warranty Repair Part for Kawasaki

Not available

112B0510

112

BOLT-UPSET

Part# 112B0510

OEM Warranty Repair Part for Kawasaki

Not available

130B0614

130

BOLT-FLANGED

Part# 130B0614 (Superseded to 130AA0614)

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 1 business day

Your price: $0.23

130G0825

130A

BOLT-FLANGED

Part# 130G0825 (Superseded to 130BA0825)

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 1 business day

Your price: $3.04

130T0845

130B

BOLT-FLANGED

Part# 130T0845 (Superseded to 130CA0845)

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 1 business day

Your price: $0.85

187B0512

187

BOLT-UPSET-WSP

Part# 187B0512 (Superseded to 187AA0512)

OEM Warranty Repair Part for Kawasaki

Not available

461F0500

461

WASHER-SPRING

Part# 461F0500 (Superseded to 461DA0500)

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 3 to 6 business days

Your price: $0.42

601A6306

601

BEARING-BALL

Part# 601A6306

OEM Warranty Repair Part for Kawasaki

Usually leaves our warehouse in 3 to 6 business days

Your price: $25.98
