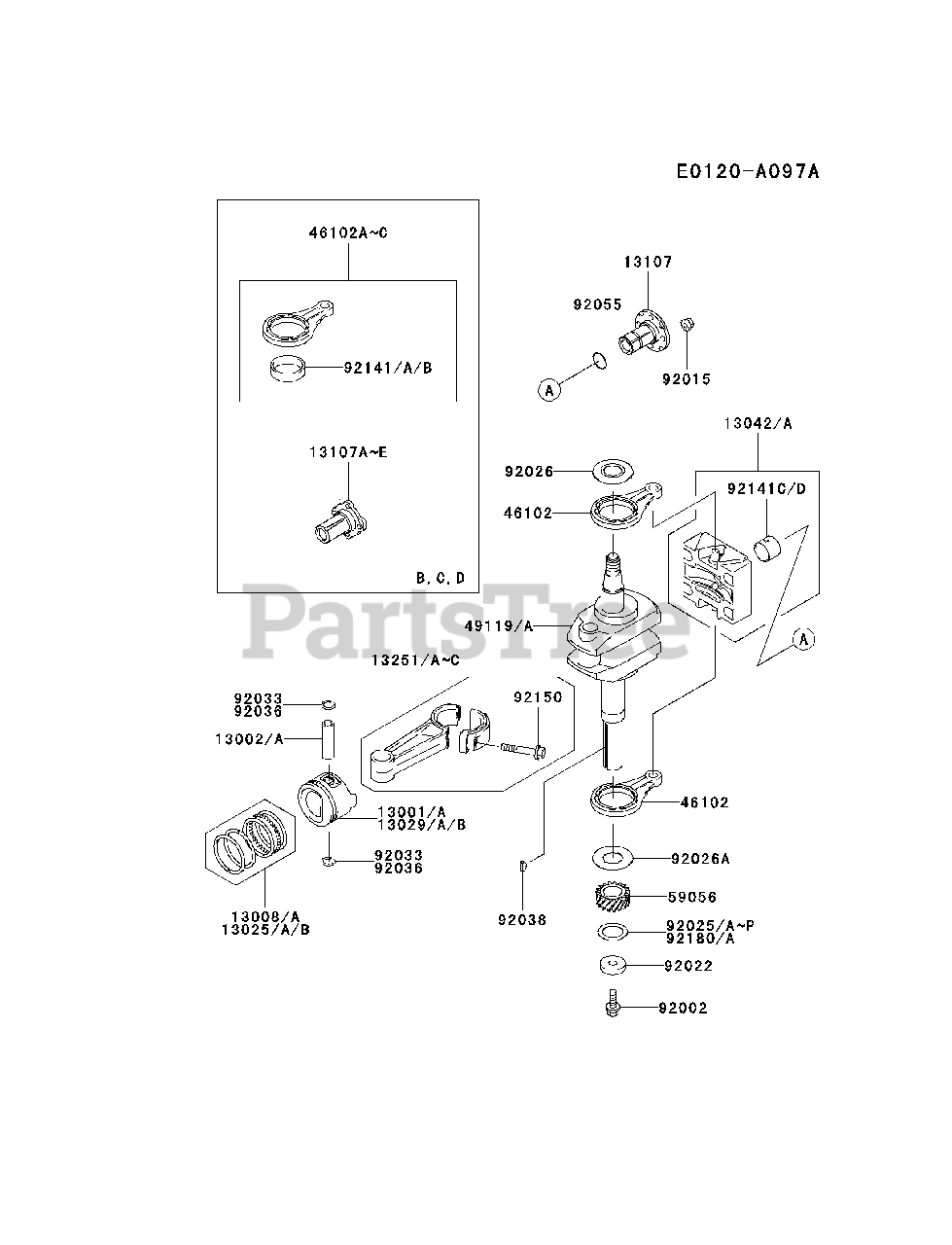

FC540V-CS03 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

PISTON/CRANKSHAFT Parts Diagram

  • Title

92025B

Kawasaki 92025-2185

SHIM,T=1.32

$

$

Not available

92025C

Kawasaki 92025-2186

SHIM,T=1.39

$

$

Not available

92025D

Kawasaki 92025-2187

SHIM,T=1.46

$

$

Not available

92025E

Kawasaki 92025-2188

SHIM,T=1.53

$

$

Not available

92025F

Kawasaki 92025-2189

SHIM,T=1.60

$

$

Not available

92025G

Kawasaki 92025-2190

SHIM,T=1.67

$

$

Not available

92025H

Kawasaki 92025-2191

SHIM,T=1.74

$

$

Not available

92025I

Kawasaki 92025-2197

SHIM,T=1.215

$

$

Not available

92025J

Kawasaki 92025-2198

SHIM,T=1.285

$

$

Not available

92025K

Kawasaki 92025-2199

SHIM,T=1.355

$

$

Not available

92025L

Kawasaki 92025-2200

SHIM,T=1.425

$

$

Not available

92025M

Kawasaki 92025-2201

SHIM,T=1.495

$

$

Not available

92025N

Kawasaki 92025-2202

SHIM,T=1.565

$

$

Not available

92025O

Kawasaki 92025-2203

SHIM,T=1.635

$

$

Not available

92025P

Kawasaki 92025-2204

SHIM,T=1.705

$

$

Not available

92026

Kawasaki 920262160

SPACER

$23.99

$

In Stock, only 2 left!

0

92026A

Kawasaki 92026-2161

SPACER

$

$

Not available

92033

Kawasaki 92033-2080

RING-SNAP

$

$

Not available

92038

Kawasaki 920382094

KEY

$2.49

$

In Stock, Qty 10

0

92055

Kawasaki 920552072

RING-O

$1.49

$

In Stock, Qty 20+

0

92141

Kawasaki 92141-1052

BEARING-PLANE

$

$

Not available

92141C

Kawasaki 92141-2096

BEARING-PLANE

$

$

Not available

92150

Kawasaki 921502193

BOLT

$

$

Not available
