FC600 K2 AH (FACC) - Honda 26" Tiller, Made in China (SN: FACC-1000001 - FACC-9999999) HANDLE COLUMN Parts Diagram

26" Tiller, Made in China

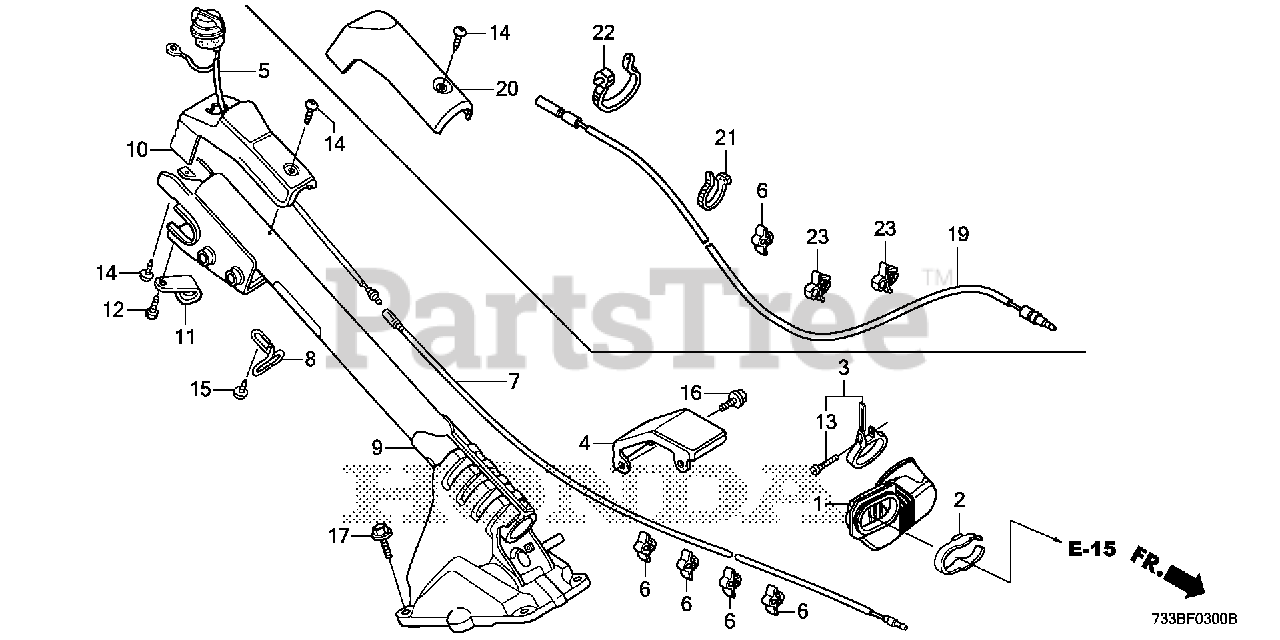

HANDLE COLUMN Parts Diagram

  • Title

1

Honda 17237-733-000

HOSE, AIR CLEANER

$36.99

$

In Stock, only 2 left!

0

2

Honda 17238-733-000

CLIP, AIR CLEANER HOSE

$4.99

$

Usually ships in 3-6 days

0

3

Honda 17255-733-010

BAND ASSY., AIR CLEANER HOSE

$8.99

$

In Stock, only 1 left!

0

4

Honda 21311-733-700

COVER, CHANGE

$19.99

$

Usually ships in 3-6 days

0

5

Honda 35120-733-E81

SWITCH ASSY., ENGINE STOP

$31.99

$

In Stock, only 1 left!

0

6

Honda 36103-ZE1-000

SEE PART DETAILS - PRI; HOLDER, STOP SWITCH WIRE

$2.99

$

Usually ships in 3-6 days

0

7

Honda 36151-733-000

WIRE, ENGINE STOP

$20.99

$

Usually ships in 3-6 days

0

8

Honda 50275-727-000

GUIDE, CABLE

$8.99

$

Usually ships in 3-6 days

0

9

Honda 53210-733-W70ZA

COLUMN, HANDLE *R280* (POWER RED)

$227.99

$

Usually ships in 3-6 days

0

10

Honda 54231-733-E80

COVER, HANDLE COLUMN

$27.99

$

Usually ships in 3-6 days

0

11

Honda 91475-SB6-000

CLIP, WIRE HARNESS (6.3MM)

$11.99

$

Usually ships in 3-6 days

0

12

Honda 92101-05014-0B

BOLT, HEX. (5X14)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 93500-04030-0G

SCREW, PAN (4X30)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 93903-25280

SCREW, TAPPING (5X12)

$1.99

$

In Stock, Qty 5

0

15

Honda 93903-35110

SCREW, TAPPING (5X10)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

17

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.99

$

In Stock, Qty 13

0
