FC600 K2 AN (FACC) - Honda 26" Tiller, Made in China (SN: FACC-1000001 - FACC-9999999) ENGINE BED@WHEEL Parts Diagram

26" Tiller, Made in China

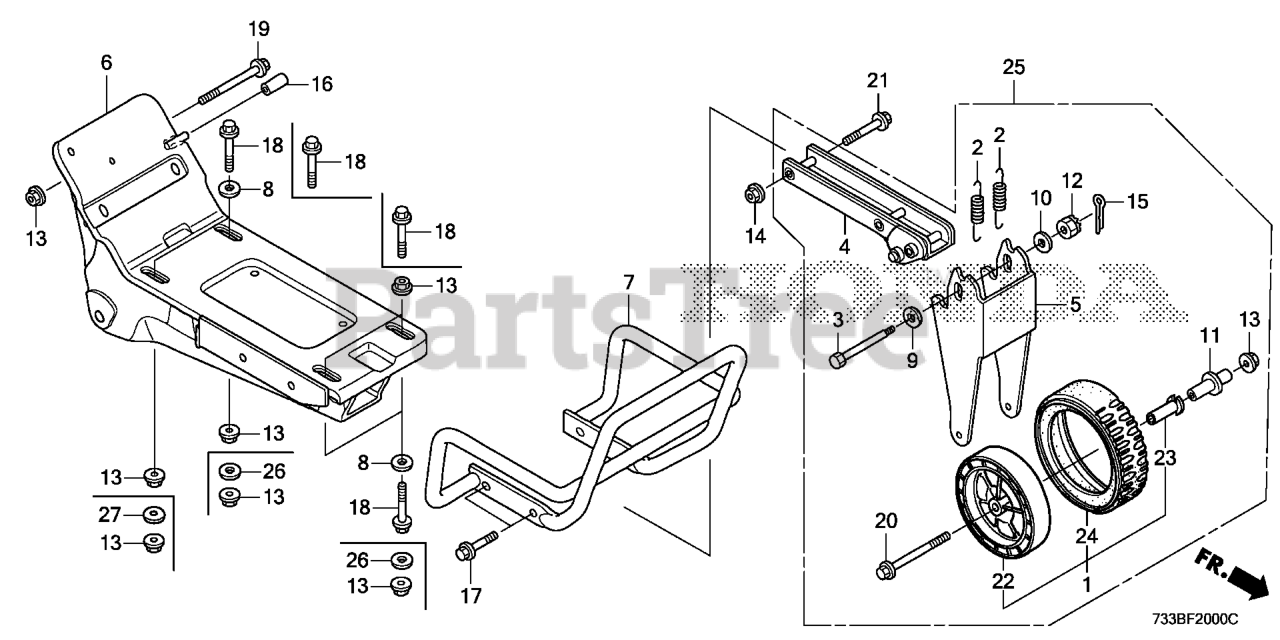

ENGINE BED@WHEEL Parts Diagram

  • Title

1

Honda 42710-VA3-J00

SEE PART DETAILS - PRI; WHEEL (8") *NH31* (MCKINLEY WHITE)

$41.99

$

In Stock, only 2 left!

0

2

Honda 43151-V42-650

SPRING, RETURN

$6.99

$

Usually ships in 3-6 days

0

3

Honda 44311-V42-650

SHAFT, FR. WHEEL

$10.99

$

Usually ships in 3-6 days

0

4

Honda 44760-V42-650

SEE PART DETAILS - PRI; BEAM, FR. WHEEL

$155.99

$

Usually ships in 3-6 days

0

5

Honda 44780-V42-650

ARM, FR. WHEEL

$110.99

$

In Stock, only 1 left!

0

6

Honda 51110-V42-A20

BED, ENGINE

$227.99

$

In Stock, only 1 left!

0

7

Honda 51120-733-W70

GUARD, FR.

$219.99

$

Usually ships in 3-6 days

0

9

Honda 90420-730-003

WASHER, CHUTE GUIDE

$5.99

$

Usually ships in 3-6 days

0

10

Honda 90503-V42-000

WASHER (8X22)

$0.99

$

Usually ships in 3-6 days

0

11

Honda 91553-V42-650

COLLAR, FR. WHEEL

$9.49

$

Usually ships in 3-6 days

0

12

Honda 94011-08000-0S

NUT, SELF-LOCK (8MM) (SOURCE: VINTAGE PARTS INC.)

$15.99

$

Usually ships in 3-6 days

0

13

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

14

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$2.49

$

In Stock, Qty 20+

0

15

Honda 94201-20220

PIN, COTTER (2.0X22)

$1.49

$

In Stock, Qty 7

0

15

Honda 94201-20350

PIN, COTTER (2.0X35)

$1.49

$

In Stock, Qty 7

0

16

Honda 95003-33003-10M

BULK HOSE, VINYL (10X14X3000) (10X14X20)

$60.99

$

Usually ships in 3-6 days

0

17

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.99

$

In Stock, Qty 13

0

18

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$3.49

$

In Stock, Qty 20+

0

19

Honda 95701-08070-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X70)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 95701-08080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X80) (Honda Code 2533867).

$2.49

$

Usually ships in 3-6 days

0

21

Honda 95701-10040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X40)

$2.49

$

In Stock, only 1 left!

0

22

Honda 42711-VA4-003

HUB, WHEEL

$

$

Not available

23

Honda 42756-VA4-003

BUSH, WHEEL

$12.99

$

Usually ships in 3-6 days

0

24

Honda 42751-VA3-J00

SEE PART DETAILS - PRI; TIRE (8 INCH)

$29.99

$

In Stock, only 4 left!

0

25

Honda 44700-V42-650

WHEEL ASSY., FR.

$160.99

$

Usually ships in 3-6 days

0

26

Honda 90503-V42-000

WASHER (8X22)

$0.99

$

Usually ships in 3-6 days

0

27

Honda 90503-V42-640

WASHER, ENGINE BED

$4.49

$

Usually ships in 3-6 days

0
