FC600 K2 AN (FACC) - Honda 26" Tiller, Made in China (SN: FACC-1000001 - FACC-9999999) TRANSMISSION GEAR Parts Diagram

26" Tiller, Made in China

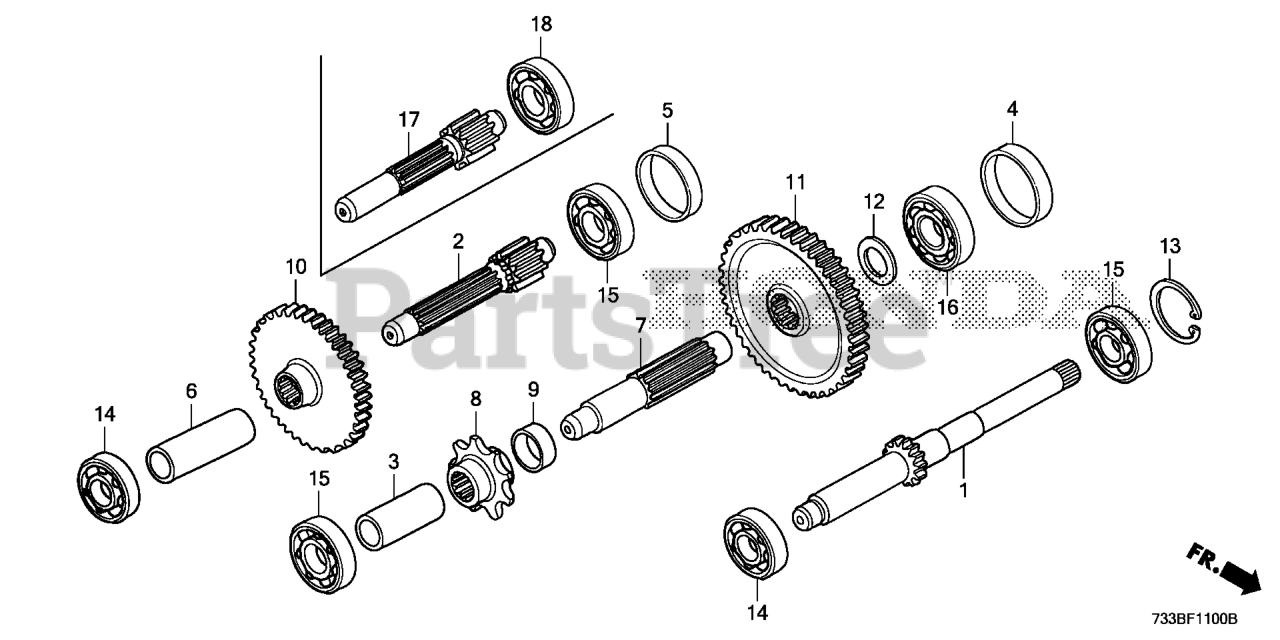

TRANSMISSION GEAR Parts Diagram

  • Title

1

Honda 23111-733-700

SHAFT, INPUT (18T)

$143.99

$

Usually ships in 3-6 days

0

3

Honda 23224-733-700

COLLAR (22) (2X30)

$11.99

$

Usually ships in 3-6 days

0

4

Honda 23227-V42-000

COLLAR, DISTANCE

$4.49

$

Usually ships in 3-6 days

0

5

Honda 23227-V42-000

COLLAR, DISTANCE

$4.49

$

Usually ships in 3-6 days

0

6

Honda 23229-733-700

COLLAR A, COUNTERSHAFT

$12.99

$

Usually ships in 3-6 days

0

7

Honda 23251-V42-000

SHAFT, FINAL

$69.99

$

Usually ships in 3-6 days

0

8

Honda 23121-V42-000

SPROCKET, DRIVE (9T)

$46.99

$

Usually ships in 3-6 days

0

9

Honda 23255-V42-000

COLLAR, FINAL SHAFT

$2.49

$

Usually ships in 3-6 days

0

10

Honda 23341-V42-000

GEAR, COUNTERSHAFT FIRST (50T)

$86.99

$

Usually ships in 3-6 days

0

11

Honda 23351-V42-000

GEAR, FINAL (58T)

$112.99

$

Usually ships in 3-6 days

0

12

Honda 90506-V42-000

WASHER (17MM)

$6.49

$

Usually ships in 3-6 days

0

13

Honda 94520-35000

CIRCLIP (INNER) (35MM)

$2.99

$

In Stock, only 1 left!

0

14

Honda 96100-60020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6002)

$16.99

$

Usually ships in 3-6 days

0

15

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$13.99

$

In Stock, only 2 left!

0

16

Honda 96100-62030-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203) (Honda Code 0722199).

$12.99

$

Usually ships in 3-6 days

0

17

Honda 23221-V42-000

COUNTERSHAFT (13T)

$84.99

$

Usually ships in 3-6 days

0

18

Honda 96100-63020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6302) (Honda Code 0834176).

$13.99

$

Usually ships in 3-6 days

0
