FD 61 M (966582701) - Husqvarna 61" Mower Deck Assembly (2010-02) 61 Inch Deck Parts Diagram

61" Mower Deck Assembly

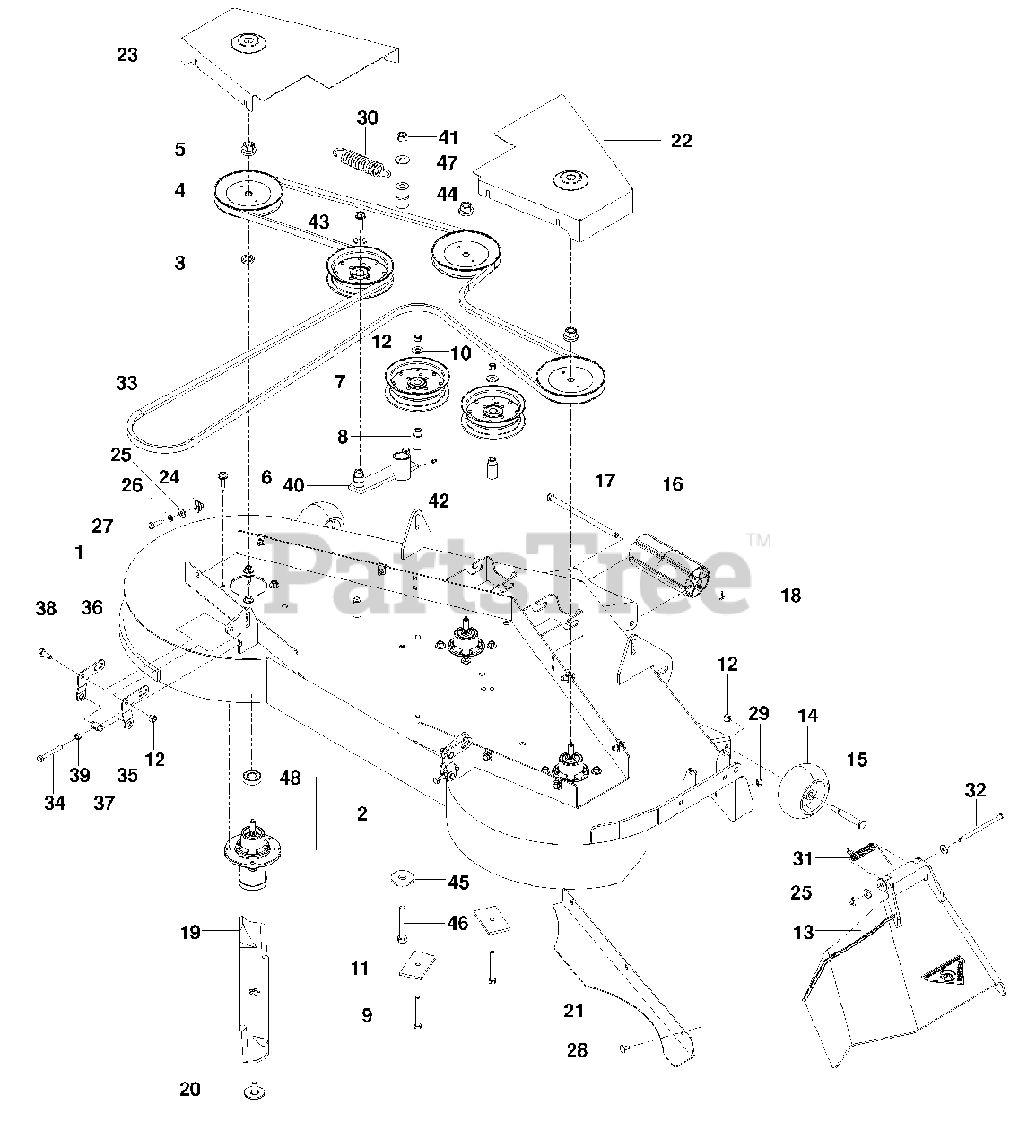

61 Inch Deck Parts Diagram

  • Title

1

Husqvarna 539132747

DECK w/ SAFETY DECALS

$

$

Not available

2

Husqvarna 539112170

HOUSING ASSEMBLY

$85.99

$

In Stock, Qty 20+

0

3

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

4

Husqvarna 539113300

PULLEY

$26.99

$

In Stock, Qty 20+

0

5

Husqvarna 539107590

NUT 9/16 TOP CENTER LOCK
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 539107630

SCREW, WASHER HEAD
(Superseded to 584953901)

$1.49

$

In Stock, Qty 20+

0

7

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112169

IDLER BUSHING
(Superseded to 596841501)

$9.49

$

In Stock, Qty 20+

0

9

Husqvarna 539101341

BOLT, HEX 3/8-16 x 3

$5.99

$

In Stock, only 1 left!

0

10

Husqvarna 539990517

WASHER 3/8 FLAT STD
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 539103303

PAD
(Superseded to 539106504)

$

$

Not available

12

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 539110734

DISCHARGE CHUTE, 61"

$56.99

$

In Stock, only 2 left!

0

14

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$14.99

$

In Stock, Qty 20+

0

15

Husqvarna 539107608

BOLT, SHOULDER
(Superseded to 532193406)

$2.49

$

In Stock, Qty 20+

0

16

Husqvarna 532176066

ROLLER, NOSE, 48"

$14.99

$

In Stock, Qty 20+

0

17

Husqvarna 532179127

ROD, ROLLER, NOSE
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

18

Husqvarna 539990365

PIN, COTTER 1/8 x 3/4
(Superseded to 596029501)

$3.49

$

In Stock, Qty 5

0

19

Husqvarna 539113312

BLADE, 21"

$28.99

$

In Stock, Qty 20+

0

20

Husqvarna 539107522

BOLT 7/16 BLADE
(Superseded to 532193003)

$9.49

$

In Stock, Qty 20+

0

21

Husqvarna 539113317

CONFINEMENT PLATE

$37.99

$

In Stock, only 2 left!

0

22

Husqvarna 539113319

BELT SHIELD, RH

$74.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539113322

BELT SHIELD, LH
(Superseded to 584385601)

$96.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539104763

RETAINER, U TYPE 5/16-18

$4.99

$

In Stock, Qty 7

0

25

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 539109600

WASHER 5/16 SPRING
(Superseded to 596565001)

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 539976934

HCS, 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 539990799

BOLT, RD HD 5/16-18 x 5/8
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

29

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

30

Husqvarna 539103256

SPRING

$13.99

$

In Stock, only 2 left!

0

31

Husqvarna 539110735

SPRING, TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 539110736

PIN, CLEVIS 5/16
(Superseded to 595935501)

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539104335

BELT, DECK
(Superseded to 522795901)

$96.99

$

In Stock, Qty 7

0

34

Husqvarna 539108396

BOLT, HEX 5/16-18 x 2 1/2 TPBLT

$

$

Not available

35

Husqvarna 539131857

PITCH, ADJUST, RT

$39.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539131858

PITCH, ADJUST, LT

$43.99

$

In Stock, only 2 left!

0

37

Husqvarna 539131859

TRUNION, PITCH
(Superseded to 596565501)

$13.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990563

BOLT, HEX 3/8-16 x 1
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

39

Husqvarna 539990196

NUT 5/16-18 HEX

$1.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539112198

IDLER ARM WELDMT

$34.99

$

In Stock, only 2 left!

0

41

Husqvarna 539101331

NUT 1/2 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 539990582

BOLT, HEX 3/8-16 x 1 WHIZLK
(Superseded to 596583101)

$4.99

$

In Stock, Qty 15

0

44

Husqvarna 539103427

PIVOT BUSHING

$11.99

$

In Stock, Qty 19

0

45

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

46

Husqvarna 539103433

BOLT, HEX 1/2-13 x 3 1/4

$6.99

$

In Stock, Qty 7

0

47

Husqvarna 539990550

WASHER 1/2 STD FLT

$

$

Not available

48

Husqvarna 539112050

BALL BEARING

$6.99

$

In Stock, Qty 12

0
