FD501D-FS00 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

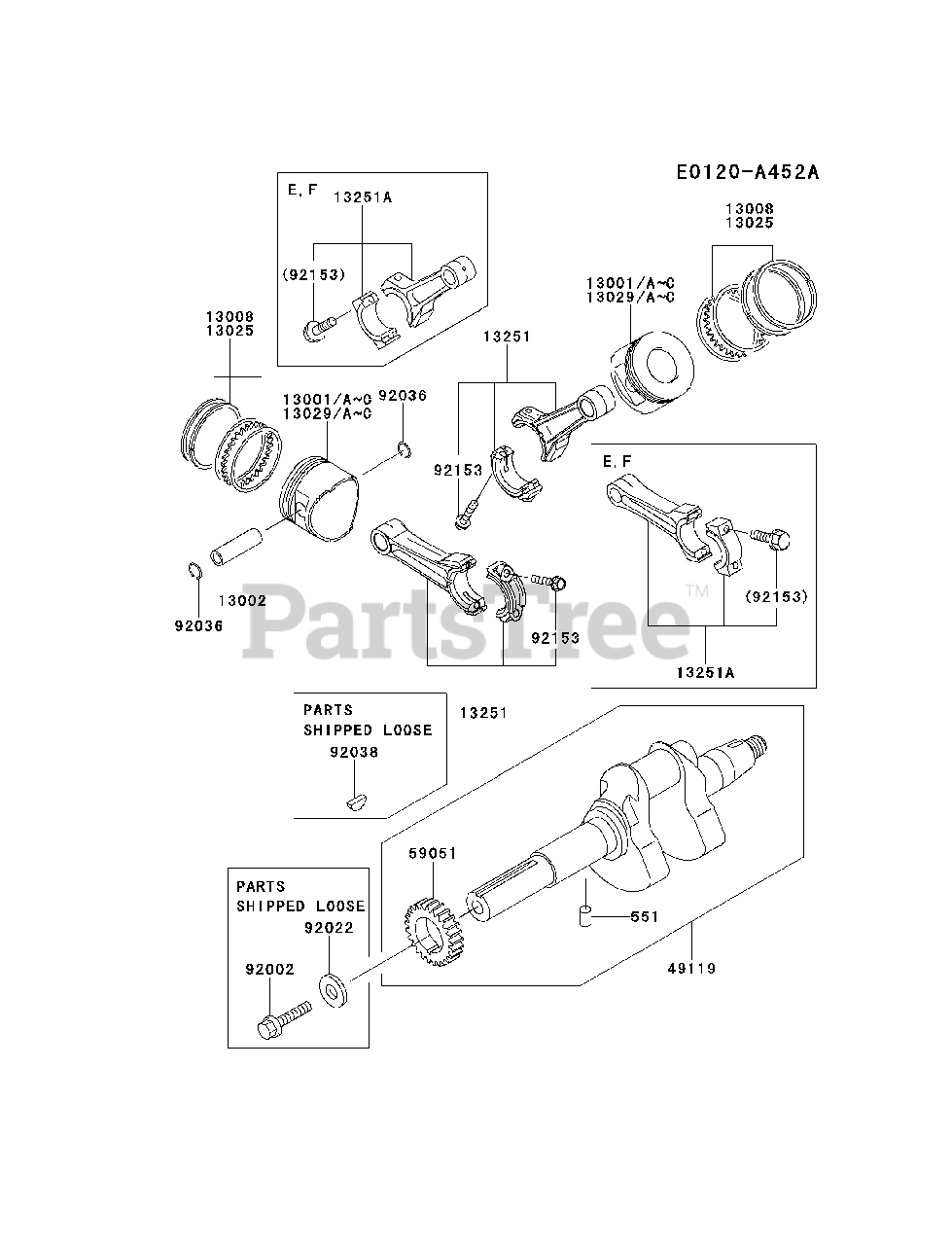

PISTON/CRANKSHAFT Parts Diagram

  • Title

13001A

Kawasaki 13001-2149

PISTON-ENGINE
(Superseded to 13001-2187)

Note: Substitute part, supplied until the stock is exhausted.

$71.99

$

Usually ships in 2-5 days

0

13001C

Kawasaki 13001-2187

PISTON-ENGINE
(Superseded to 13001-2203)

$71.99

$

Usually ships in 2-5 days

0

13002

Kawasaki 130021004

PIN-PISTON

$9.99

$

Usually ships in 2-5 days

0

13008

Kawasaki 130082060

RING-SET-PISTON

$38.99

$

Usually ships in 2-5 days

0

13025

Kawasaki 130252100

RING-SET-PISTON L,0.5

$43.99

$

Usually ships in 2-5 days

0

13029A

Kawasaki 13029-2123

PISTON-ENGINE L,0.5
(Superseded to 13029-2132)

Note: Substitute part, supplied until the stock is exhausted.

$78.99

$

Usually ships in 2-5 days

0

13029C

Kawasaki 13029-2132

PISTON-ENGINE L,0.50
(Superseded to 13029-0037)

$78.99

$

Usually ships in 2-5 days

0

13251A

Kawasaki 132516063

ROD-ASSY-CONNECTING

$

$

Not available

49119

Kawasaki 49119-2214

CRANKSHAFT-ASSY

$

$

Not available

59051

Kawasaki 590512369

GEAR-SPUR

$62.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 920022263

BOLT,10X28

$1.99

$

In Stock, only 1 left!

0

92022

Kawasaki 920222194

WASHER

$4.49

$

Usually ships in 2-5 days

0

92036

Kawasaki 92036004

RING-SNAP

$0.99

$

In Stock, Qty 6

0

92038

Kawasaki 920382101

KEY

$4.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 921532097

BOLT,6X30

$3.49

$

Usually ships in 2-5 days

0

551

Kawasaki 551A0408

PIN-DOWEL,4X8

$0.99

$

In Stock, only 1 left!

0
