FD501V-BS03 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

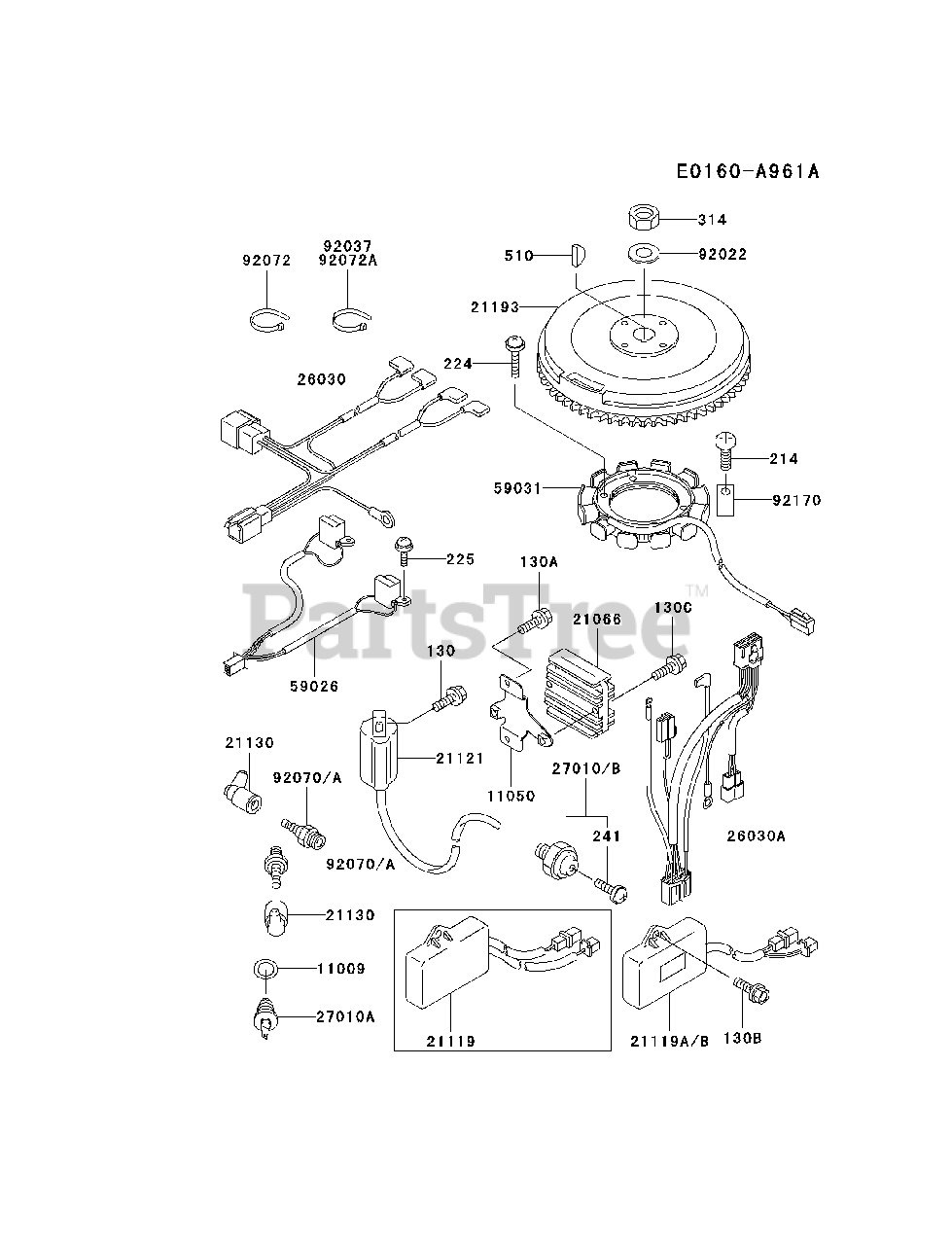

ELECTRIC-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 11009-2766

GASKET,16X24X1
(Superseded to 11061-2132)

$1.49

$

In Stock, Qty 10

0

11050

Kawasaki 11050-2100-9H

BRACKET

$

$

Not available

21066

Kawasaki 21066-2070

REGULATOR-VOLTAGE

$131.99

$

In Stock, only 3 left!

0

21119A

Kawasaki 21119-2157

IGNITER
(Superseded to 21119-2116)

$317.99

$

In Stock, only 1 left!

0

21121

Kawasaki 21121-2083

COIL-IGNITION
(Superseded to 21121-2064)

$73.99

$

In Stock, Qty 7

0

21130

Kawasaki 21130-2060

CAP-SPARK PLUG
(Superseded to M88905)

$14.99

$

In Stock, only 4 left!

0

21193

Kawasaki 21193-2147

FLYWHEEL-ASSY
(Superseded to 21193-2110)

$

$

Not available

26030

Kawasaki 26030-2239

HARNESS

$31.99

$

Usually ships in 2-5 days

0

26030A

Kawasaki 26030-2250

HARNESS

$

$

Not available

27010A

Kawasaki 27010-2181

SWITCH

$41.99

$

Usually ships in 2-5 days

0

27010B

Kawasaki 27010-2234

SWITCH
(Superseded to 27010-0851)

$19.99

$

Usually ships in 2-5 days

0

59026

Kawasaki 59026-2060

COIL-PULSING

$

$

Not available

59031

Kawasaki 59031-2121

COIL-CHARGING

$137.99

$

Usually ships in 2-5 days

0

92022

Kawasaki 92022-2245

WASHER

$1.49

$

Usually ships in 2-5 days

0

92037

Kawasaki 92037-1173

CLAMP

$3.99

$

Usually ships in 2-5 days

0

92070A

Kawasaki 92070-2110

PLUG-SPARK,BPR2ES,SOLID
(Superseded to BPR2ES)

Note: NGK

$3.49

$

In Stock, Qty 12

0

92072

Kawasaki 92072-1195

BAND

$1.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2050

CLAMP

$0.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0520

BOLT-FLANGED
(Superseded to 130AA0520)

$0.99

$

In Stock, Qty 14

0

130A

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0614

BOLT-FLANGED
(Superseded to 130AA0614)

$0.99

$

In Stock, only 4 left!

0

130C

Kawasaki 130G0620

BOLT-FLANGED
(Superseded to 130BA0620)

$1.99

$

In Stock, only 2 left!

0

214

Kawasaki 214B0510

SCREW-PAN+-
(Superseded to 214AA0510)

$0.99

$

In Stock, Qty 13

0

224

Kawasaki 224B0625

SCREW-PAN-WP-CROS
(Superseded to 224AA0625)

$0.99

$

In Stock, Qty 9

0

225

Kawasaki 225B0414

SCREW-PAN-WSP-CROS
(Superseded to 225AA0414)

$0.99

$

In Stock, Qty 6

0

314

Kawasaki 314G1800

NUT-HEX-FINE

$2.49

$

In Stock, only 2 left!

0

510

Kawasaki 510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 10

0
