FD501V-CS05 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

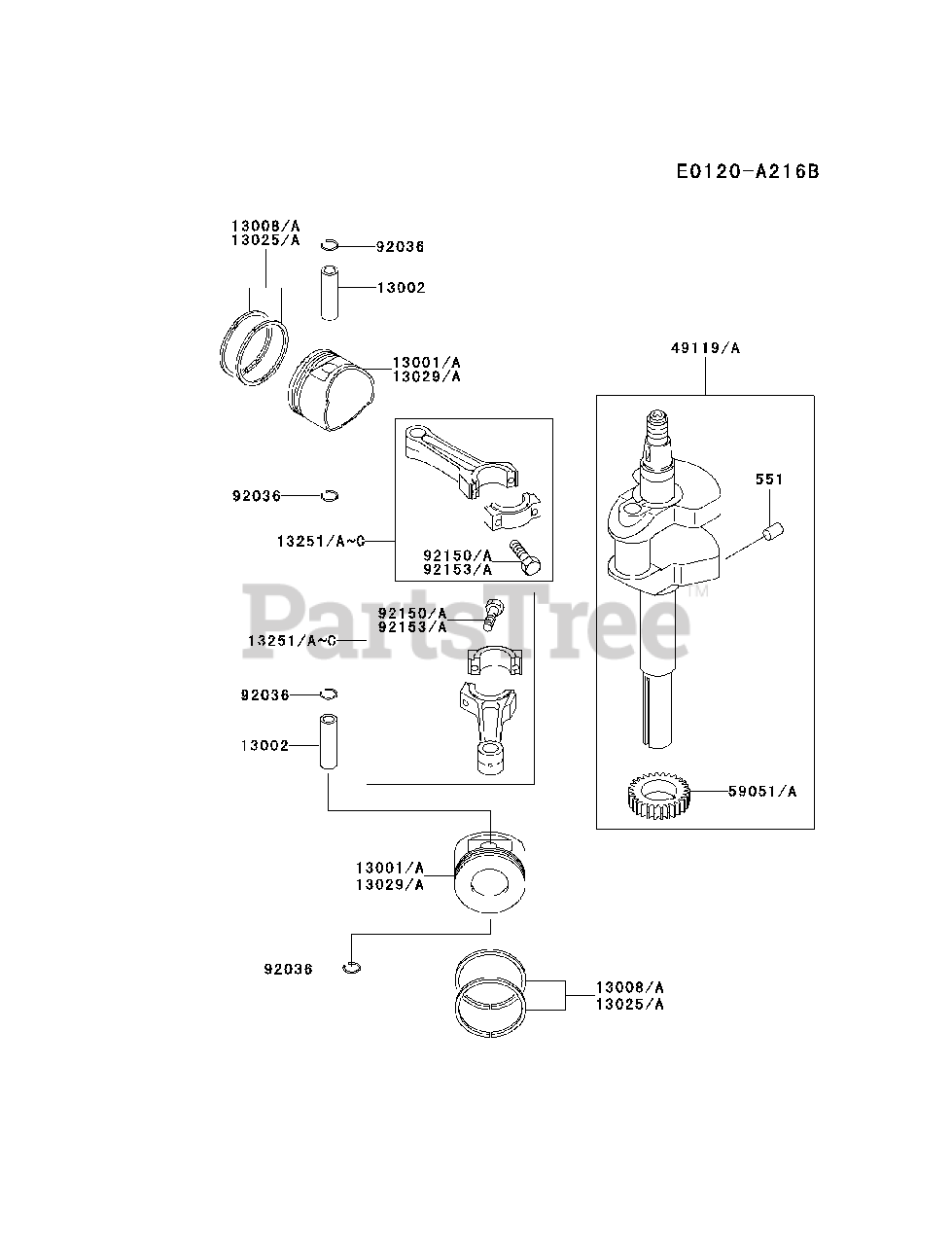

PISTON/CRANKSHAFT Parts Diagram

  • Title

13001A

Kawasaki 13001-2149

PISTON-ENGINE
(Superseded to 13001-2187)

$71.99

$

Usually ships in 2-5 days

0

13002

Kawasaki 130021004

PIN-PISTON

$9.99

$

Usually ships in 2-5 days

0

13008

Kawasaki 130082060

RING-SET-PISTON

$38.99

$

Usually ships in 2-5 days

0

13025

Kawasaki 130252100

RING-SET-PISTON L,0.5

$43.99

$

Usually ships in 2-5 days

0

13029A

Kawasaki 13029-2123

PISTON-ENGINE L,0.5
(Superseded to 13029-2132)

$78.99

$

Usually ships in 2-5 days

0

13251A

Kawasaki 13251-6036

ROD-ASSY-CONNECTING
(Superseded to 13251-6063)

Note: Substitute part, supplied until the stock is exhausted.

$

$

Not available

13251C

Kawasaki 132516063

ROD-ASSY-CONNECTING

$

$

Not available

49119A

Kawasaki 49119-2214

CRANKSHAFT-ASSY

$

$

Not available

59051A

Kawasaki 590512369

GEAR-SPUR

$62.99

$

Usually ships in 2-5 days

0

92036

Kawasaki 92036004

RING-SNAP

$0.99

$

In Stock, Qty 6

0

92150A

Kawasaki 92150-2122

BOLT,CONNECTING ROD
(Superseded to 92153-2097)

Note: Substitute part, supplied until the stock is exhausted.

$3.49

$

Usually ships in 2-5 days

0

92153A

Kawasaki 921532097

BOLT,6X30

$3.49

$

Usually ships in 2-5 days

0

551

Kawasaki 551A0408

PIN-DOWEL

$0.99

$

In Stock, only 1 left!

0
