FD620D-AS03 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

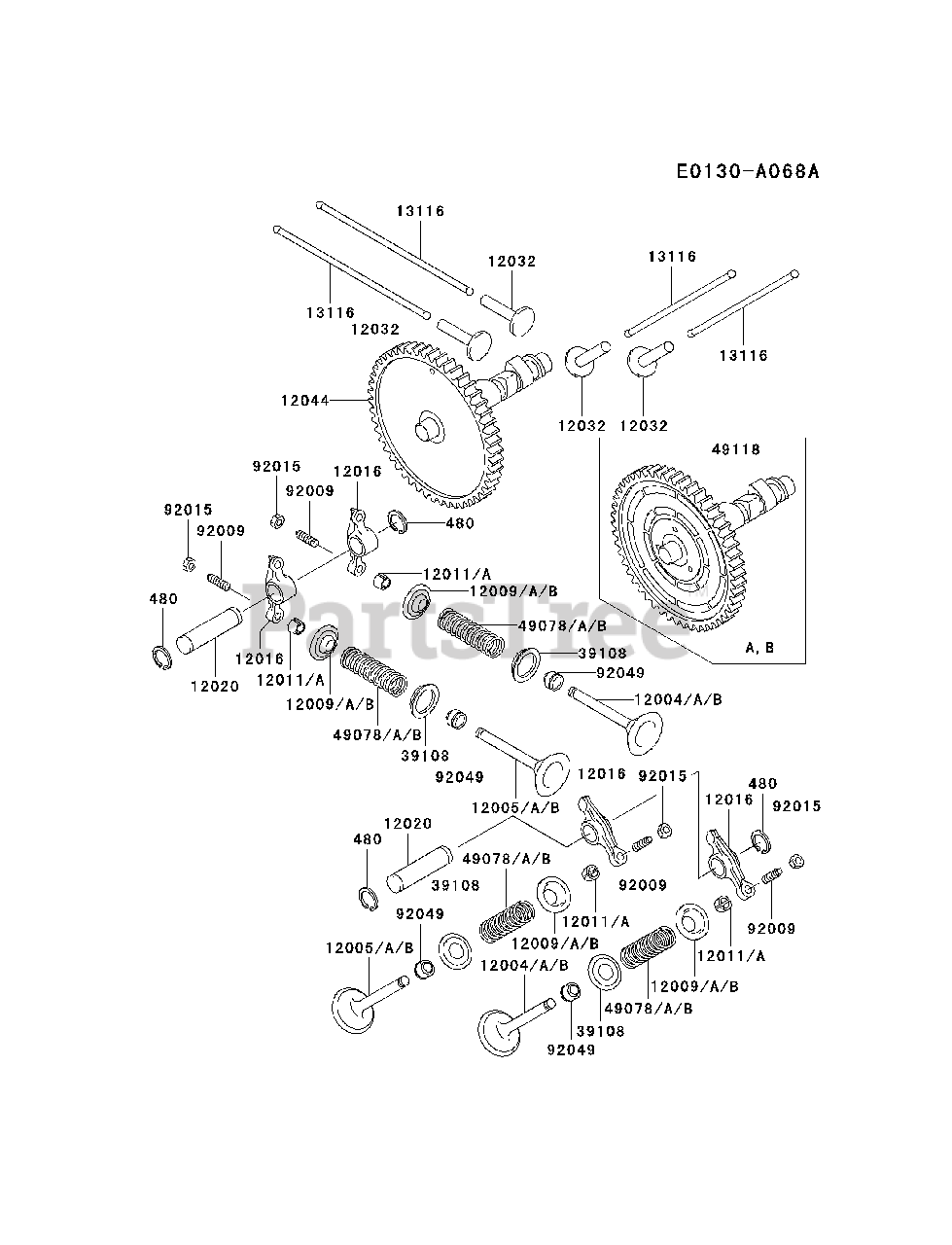

VALVE/CAMSHAFT Parts Diagram

  • Title

12004

Kawasaki 12004-2094

VALVE-INTAKE

$20.99

$

In Stock, only 1 left!

0

12004B

Kawasaki 12004-2104

VALVE-INTAKE
(Superseded to 12004-2115)

$21.99

$

Usually ships in 2-5 days

0

12005

Kawasaki 120052083

VALVE-EXHAUST

$29.99

$

In Stock, only 2 left!

0

12005B

Kawasaki 120052093

VALVE-EXHAUST

$31.99

$

Usually ships in 2-5 days

0

12009

Kawasaki 12009-2061

RETAINER-VALVE SPRING

$1.49

$

Usually ships in 2-5 days

0

12009B

Kawasaki 120092067

RETAINER-VALVE SPRING

$4.49

$

In Stock, only 4 left!

0

12011A

Kawasaki 120112056

COLLET

$2.99

$

In Stock, only 3 left!

0

12016

Kawasaki 120162056

ARM-ROCKER

$19.99

$

Usually ships in 2-5 days

0

12020

Kawasaki 120202059

SHAFT-ROCKER

$5.99

$

Usually ships in 2-5 days

0

12032

Kawasaki 120322064

TAPPET

$11.99

$

In Stock, only 4 left!

0

13116

Kawasaki 131162057

ROD-PUSH

$4.99

$

In Stock, only 3 left!

0

39108

Kawasaki 391082057

RETAINER-SPRING

$0.99

$

In Stock, Qty 10

0

49078

Kawasaki 49078-2063

SPRING-ENGINE VALVE
(Superseded to 49078-2071)

Note: Substitute part, supplied until the stock is exhausted.

$2.49

$

In Stock, only 3 left!

0

49078B

Kawasaki 490782071

SPRING-ENGINE VALVE
(Superseded to 490782083)

$2.49

$

In Stock, only 3 left!

0

49118

Kawasaki 49118-2082

CAMSHAFT-COMP
(Superseded to 12044-0803)

$179.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920091109

SCREW

$2.49

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1137

NUT
(Superseded to 92210-1491)

$1.49

$

In Stock, only 4 left!

0

92049

Kawasaki 920492109

SEAL-OIL

$5.99

$

In Stock, Qty 11

0

480

Kawasaki 480J1200

CIRCLIP

$0.99

$

In Stock, Qty 6

0
