FD620D-RS24 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

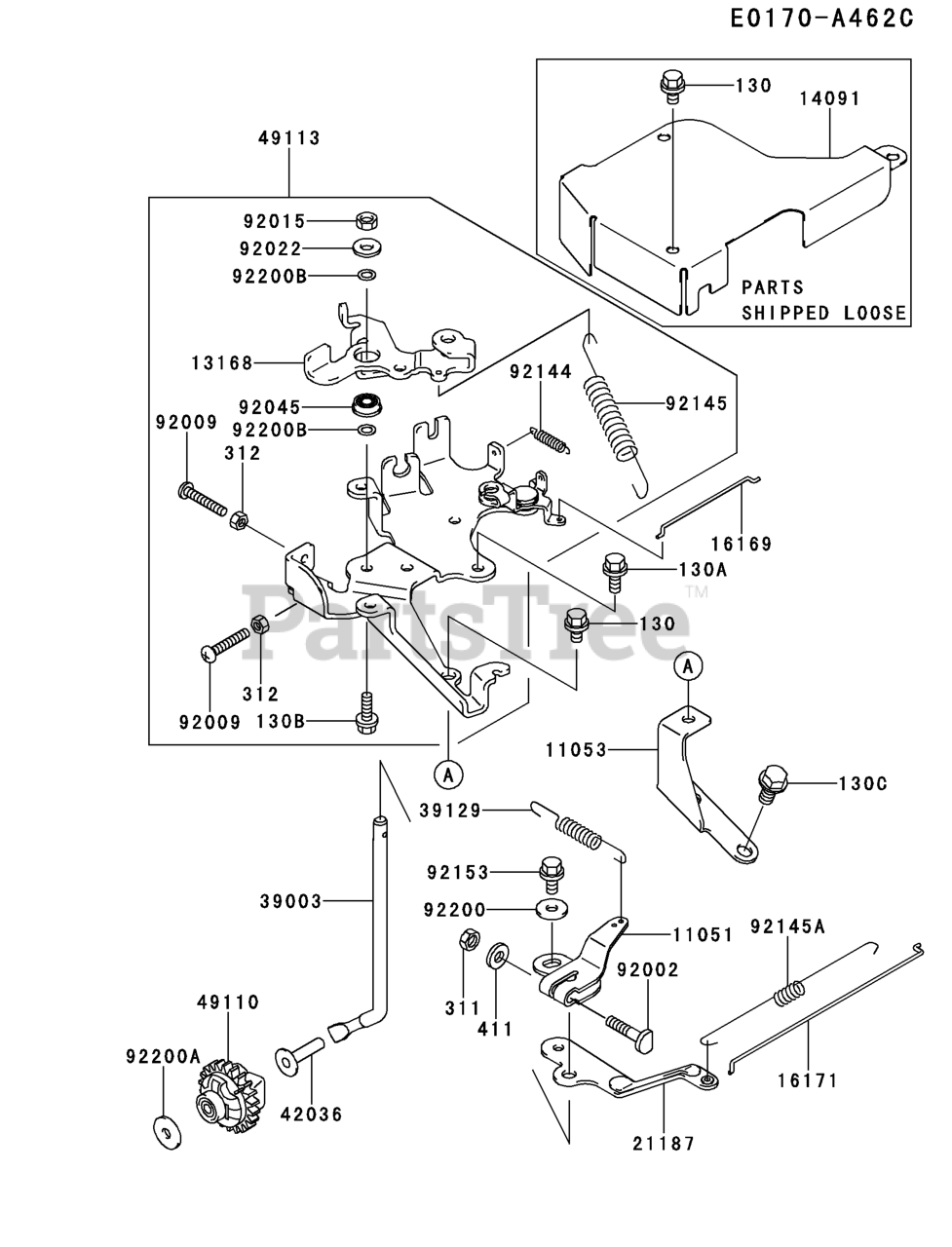

CONTROL-EQUIPMENT Parts Diagram

  • Title

11051

Kawasaki 11051-2086

BRACKET

$8.99

$

Usually ships in 2-5 days

0

11053

Kawasaki 110532067

BRACKET

$

$

Not available

13168

Kawasaki 13168-2486

LEVER

$

$

Not available

14091

Kawasaki 14091-2109

COVER

$35.99

$

Usually ships in 2-5 days

0

16169

Kawasaki 161692143

LINK-CHOKE

$

$

Not available

16171

Kawasaki 161712096

LINK

$

$

Not available

21187

Kawasaki 21187-2077

ARM-ASSY

$9.49

$

Usually ships in 2-5 days

0

39003

Kawasaki 39003-2102

ARM-PIVOT
(Superseded to 39003-2088)

$14.99

$

Usually ships in 2-5 days

0

39129

Kawasaki 39129-2108

SPRING-GOVERNOR

$4.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-2060

SLEEVE
(Superseded to 42036-2059)

$4.99

$

In Stock, only 4 left!

0

49110

Kawasaki 49110-2093

GOVERNOR-ASSY

$16.99

$

Usually ships in 2-5 days

0

49113

Kawasaki 49113-2182

PANEL-COMP-CONTROL

$

$

Not available

92002

Kawasaki 92002-2269

BOLT,6X28

$1.99

$

In Stock, Qty 6

0

92009

Kawasaki 92009-2381

SCREW,5X30

$0.99

$

In Stock, Qty 5

0

92015

Kawasaki 92015-1339

NUT,LOCK,FLANGED,6MM

$1.99

$

In Stock, only 1 left!

0

92022

Kawasaki 92022-2247

WASHER

$0.99

$

Usually ships in 2-5 days

0

92045

Kawasaki 92045-2223

BEARING-BALL

$

$

Not available

92144

Kawasaki 92144-2052

SPRING

$9.49

$

In Stock, Qty 5

0

92145

Kawasaki 92145-2076

SPRING

$

$

Not available

92145A

Kawasaki 92145-2137

SPRING

$

$

Not available

92153

Kawasaki 92153-0009

BOLT,6X12

$1.99

$

In Stock, only 2 left!

0

92200

Kawasaki 92200-2035

WASHER,6.5X18X2.0

$0.99

$

In Stock, Qty 8

0

92200A

Kawasaki 92200-2036

WASHER,6.2X20X0.5

$1.49

$

In Stock, Qty 5

0

92200B

Kawasaki 92200-2083

WASHER

$5.49

$

Usually ships in 2-5 days

0

130

Kawasaki 130BA0610

BOLT-FLANGED,6X10
(Superseded to 130B0610)

$0.99

$

In Stock, Qty 14

0

130A

Kawasaki 130BA0614

BOLT-FLANGED,6X14
(Superseded to 92001-1627)

$3.99

$

In Stock, Qty 10

0

130B

Kawasaki 130BA0620

BOLT-FLANGED,6X20
(Superseded to 130B0620)

$3.49

$

In Stock, only 3 left!

0

130C

Kawasaki 130BA-0816

BOLT-FLANGED,8X16

$1.49

$

Usually ships in 2-5 days

0

311

Kawasaki 311AA0600

NUT-HEX,6MM
(Superseded to 16011-002)

$0.99

$

In Stock, Qty 20+

0

312

Kawasaki 312AA0500

NUT-HEX,5MM

$0.99

$

In Stock, Qty 8

0

411

Kawasaki 411AA0600

WASHER-PLAIN,6MM
(Superseded to 411B0600)

$4.49

$

In Stock, only 1 left!

0
