FD671D-AS01 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

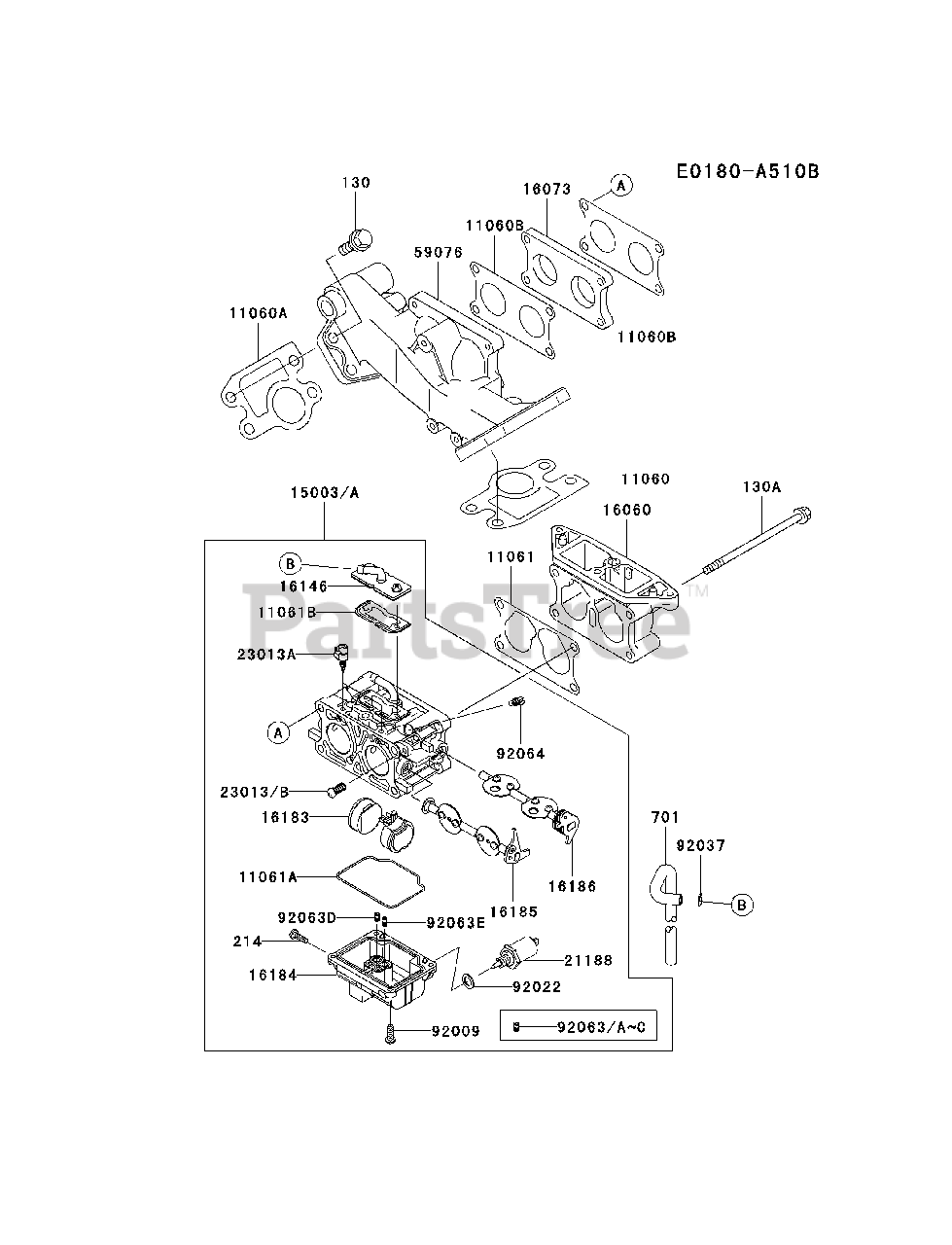

CARBURETOR Parts Diagram

  • Title

11060

Kawasaki 110602468

GASKET,INTAKE MANIFOLD

$7.49

$

In Stock, Qty 20+

0

11060A

Kawasaki 110602469

GASKET,INTAKE MANIFOLD

$5.99

$

In Stock, Qty 20+

0

11060B

Kawasaki 110602471

GASKET,INTAKE PIPE

$5.99

$

In Stock, Qty 20+

0

11061

Kawasaki 110612075

GASKET,PIPE-INTAKE
(Superseded to 11060-2473)

$5.99

$

In Stock, Qty 20+

0

11061A

Kawasaki 110612090

GASKET,CHAMBER

$11.99

$

In Stock, Qty 20+

0

11061B

Kawasaki 110612091

GASKET,COVER

$8.99

$

In Stock, Qty 11

0

15003

Kawasaki 15003-2787

CARBURETOR-ASSY
(Superseded to 15003-2980)

Note: Substitute part, supplied until the stock is exhausted.

$463.99

$

Usually ships in 2-5 days

0

15003A

Kawasaki 15003-2814

CARBURETOR-ASSY
(Superseded to 15003-2980)

$463.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 160602194

PIPE-INTAKE

$47.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 160732206

INSULATOR

$15.99

$

In Stock, only 2 left!

0

16146

Kawasaki 161462227

COVER-ASSY

$119.99

$

Usually ships in 2-5 days

0

16183

Kawasaki 161832006

FLOAT-ASSY

$50.99

$

In Stock, Qty 6

0

16184

Kawasaki 161842007

CHAMBER-ASSY-FLOAT
(Superseded to 16184-2004)

$225.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 16185-2040

VALVE-ASSY-THROTTLE

$

$

Not available

16186

Kawasaki 161862036

VALVE-ASSY-CHOKE

$55.99

$

Usually ships in 2-5 days

0

21188

Kawasaki 211882011

SOLENOID

$202.99

$

In Stock, Qty 5

0

23013

Kawasaki 23013-2059

SCREW-ASSY

Note: Substitute part, supplied until the stock is exhausted.

$

$

Not available

23013A

Kawasaki 230132063

SCREW-ASSY

$

$

Not available

23013B

Kawasaki 230132064

SCREW-ASSY

$10.99

$

Usually ships in 2-5 days

0

59076

Kawasaki 590762065

MANIFOLD-INTAKE

$207.99

$

In Stock, only 1 left!

0

92009

Kawasaki 920092015

SCREW

$5.49

$

Usually ships in 2-5 days

0

92022

Kawasaki 920222231

WASHER

$1.99

$

In Stock, Qty 12

0

92037

Kawasaki 920371610

CLAMP

$2.49

$

In Stock, only 1 left!

0

92063

Kawasaki 920632347

JET-MAIN,#97.5

$11.99

$

In Stock, only 1 left!

0

92063A

Kawasaki 920632396

JET-MAIN,#100

$11.99

$

In Stock, only 1 left!

0

92063B

Kawasaki 920632396

JET-MAIN,#100

$11.99

$

In Stock, only 1 left!

0

92063C

Kawasaki 920632397

JET-MAIN,#102.5

$11.99

$

Usually ships in 2-5 days

0

92063D

Kawasaki 920632397

JET-MAIN,#102.5

$11.99

$

Usually ships in 2-5 days

0

92063E

Kawasaki 920632410

JET-MAIN,#105

$11.99

$

In Stock, only 1 left!

0

92064

Kawasaki 920642133

JET-PILOT,#41.3

$13.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130G0825

BOLT-FLANGED
(Superseded to 130BA0825)

$5.99

$

In Stock, only 1 left!

0

130A

Kawasaki 130T06110

BOLT-FLANGED
(Superseded to 130CA06110)

$2.99

$

In Stock, Qty 19

0

214

Kawasaki 214B0414

SCREW-PAN+-
(Superseded to 214AA0414)

$0.99

$

In Stock, Qty 12

0

701

Kawasaki 701Q061000

TUBE-PVC

$5.99

$

In Stock, Qty 9

0
