FD671D-AS01 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

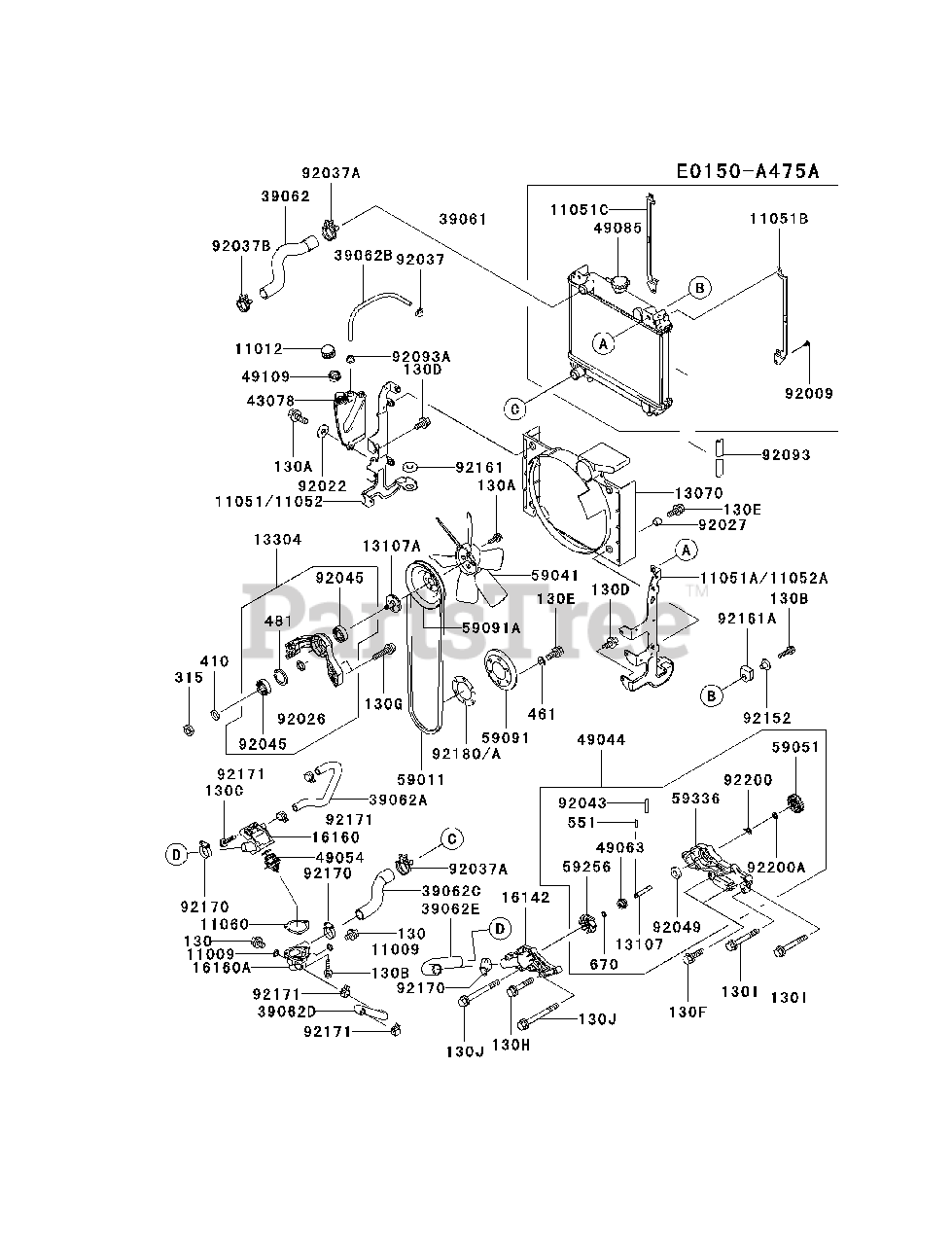

COOLING-EQUIPMENT Parts Diagram

  • Title

11009

Kawasaki 110093028

GASKET,8.2X12X1

$0.99

$

In Stock, Qty 8

0

11012

Kawasaki 110121084

CAP

$1.99

$

In Stock, Qty 8

0

11051

Kawasaki 11051-2090-9H

BRACKET,RADIATOR
(Superseded to 11052-2073-9H)

Note: Substitute part, supplied until the stock is exhausted.

$85.99

$

Usually ships in 2-5 days

0

11051A

Kawasaki 11051-2091-9H

BRACKET,RADIATOR
(Superseded to 11052-2074-9H)

Note: Substitute part, supplied until the stock is exhausted.

$85.99

$

Usually ships in 2-5 days

0

11051B

Kawasaki 110512103

BRACKET,SCREEN

$31.99

$

Usually ships in 2-5 days

0

11051C

Kawasaki 110512104

BRACKET,SCREEN

$31.99

$

Usually ships in 2-5 days

0

11052

Kawasaki 11052-2073-9H

BRACKET,RADIATOR
(Superseded to 99916-2181)

$85.99

$

Usually ships in 2-5 days

0

11052A

Kawasaki 11052-2074-9H

BRACKET,RADIATOR
(Superseded to 99916-2181)

$85.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 110602475

GASKET,THERMOSTAT

$4.49

$

In Stock, Qty 12

0

13070

Kawasaki 130702106

GUIDE,FAN

$39.99

$

Usually ships in 2-5 days

0

13107

Kawasaki 131072097

SHAFT,IMPELLER

$9.49

$

In Stock, only 2 left!

0

13107A

Kawasaki 131072246

SHAFT,PULLEY

$58.99

$

Usually ships in 2-5 days

0

13304

Kawasaki 133046010

HOUSING-ASSY

$98.99

$

In Stock, only 1 left!

0

16142

Kawasaki 161422077

COVER-PUMP

$49.99

$

In Stock, only 1 left!

0

16160

Kawasaki 16160-2127

BODY,UPP
(Superseded to 16160-2139)

$38.99

$

In Stock, only 1 left!

0

16160A

Kawasaki 161606001

BODY,VALVE

$70.99

$

Usually ships in 2-5 days

0

39061

Kawasaki 390612068

RADIATOR-ASSY
(Superseded to 39061-2066)

$747.99

$

Usually ships in 2-5 days

0

39062

Kawasaki 39062-2082

HOSE-COOLING
(Superseded to 39062-2097)

$26.99

$

In Stock, Qty 8

0

39062A

Kawasaki 39062-2084

HOSE-COOLING
(Superseded to 39062-2098)

$25.99

$

In Stock, only 1 left!

0

39062B

Kawasaki 390622086

HOSE-COOLING,7.5X10.5X385

$7.49

$

In Stock, only 2 left!

0

39062C

Kawasaki 39062-2087

HOSE-COOLING
(Superseded to 39062-2099)

$17.99

$

In Stock, Qty 6

0

39062D

Kawasaki 39062-2088

HOSE-COOLING
(Superseded to 39062-2100)

$17.99

$

In Stock, Qty 5

0

39062E

Kawasaki 39062-2089

HOSE-COOLING
(Superseded to 39062-2101)

$18.99

$

In Stock, only 4 left!

0

43078

Kawasaki 430782055

RESERVOIR

$47.99

$

In Stock, Qty 20+

0

49044

Kawasaki 49044-2063

PUMP-WATER
(Superseded to 49044-2067)

$261.99

$

In Stock, Qty 5

0

49054

Kawasaki 490542058

THERMOSTAT

$58.99

$

In Stock, Qty 8

0

49063

Kawasaki 49063-1056

SEAL-MECHANICAL
(Superseded to 49063-1054)

$

$

Not available

49085

Kawasaki 490852052

CAP-ASSY-PRESSURE

$23.99

$

In Stock, Qty 6

0

49109

Kawasaki 491092057

ELEMENT-BREATHER,CAP-TANK

$7.49

$

In Stock, Qty 10

0

59011

Kawasaki 590112056

BELT,FAN

$26.99

$

In Stock, Qty 13

0

59041

Kawasaki 590412092

FAN

$66.99

$

In Stock, only 2 left!

0

59051

Kawasaki 590512355

GEAR-SPUR,25T

$9.49

$

In Stock, only 2 left!

0

59091

Kawasaki 590912054

PULLEY

$12.99

$

Usually ships in 2-5 days

0

59091A

Kawasaki 5909120559H

PULLEY

$

$

Currently unavailable

59256

Kawasaki 592562069

IMPELLER

$21.99

$

In Stock, only 2 left!

0

59336

Kawasaki 593362078

CASE-PUMP

$126.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920092460

SCREW

$0.99

$

In Stock, only 1 left!

0

92022

Kawasaki 920222247

WASHER

$0.99

$

In Stock, Qty 10

0

92026

Kawasaki 920262311

SPACER,12X18X1.4

$0.99

$

Usually ships in 2-5 days

0
