FD731V-AS05 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

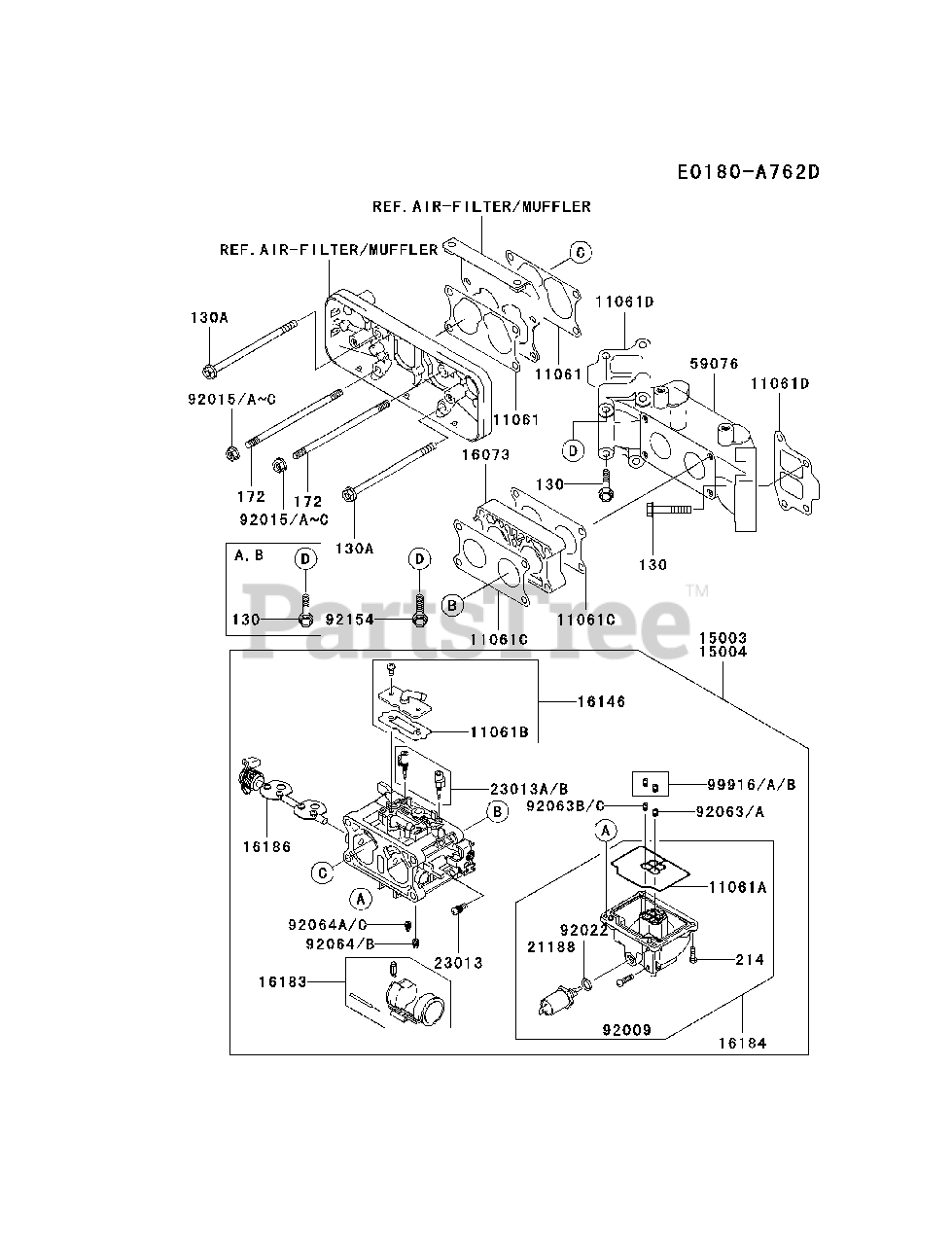

CARBURETOR Parts Diagram

  • Title

11061

Kawasaki 11061-2075

GASKET,PIPE-INTAKE
(Superseded to 11060-2473)

$5.49

$

In Stock, Qty 11

0

11061A

Kawasaki 11061-2090

GASKET,CHAMBER

$11.99

$

In Stock, Qty 8

0

11061B

Kawasaki 11061-2091

GASKET,COVER

$8.99

$

In Stock, Qty 12

0

11061C

Kawasaki 11061-2128

GASKET,MANIFOLD

$4.49

$

In Stock, Qty 8

0

11061D

Kawasaki 11061-2155

GASKET,MANIFOLD
(Superseded to 11061-2152)

$5.49

$

In Stock, Qty 7

0

15003

Kawasaki 15003-2974

CARBURETOR-ASSY
(Superseded to 15004-2063)

$463.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-2224

INSULATOR

$14.99

$

Usually ships in 2-5 days

0

16146

Kawasaki 16146-2227

COVER-ASSY

$108.99

$

Usually ships in 2-5 days

0

16183

Kawasaki 16183-2006

FLOAT-ASSY

$50.99

$

In Stock, Qty 5

0

16184

Kawasaki 16184-2011

CHAMBER-ASSY-FLOAT

$206.99

$

Usually ships in 2-5 days

0

16186

Kawasaki 16186-2045

VALVE-ASSY-CHOKE

$69.99

$

Usually ships in 2-5 days

0

21188

Kawasaki 21188-2011

SOLENOID

$183.99

$

In Stock, only 2 left!

0

23013

Kawasaki 23013-2064

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

23013A

Kawasaki 23013-2068

SCREW-ASSY

$51.99

$

Usually ships in 2-5 days

0

59076

Kawasaki 59076-2085

MANIFOLD-INTAKE

$114.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2015

SCREW
(Superseded to 315470-6133A)

$5.49

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 7

0

92022

Kawasaki 92022-2231

WASHER

$1.99

$

In Stock, Qty 5

0

92063

Kawasaki 92063-2361

JET-MAIN,#120

$

$

Not available

92063B

Kawasaki 92063-2374

JET-MAIN,#115A

$17.99

$

In Stock, only 1 left!

0

92064

Kawasaki 92064-2130

JET-PILOT,#50

$11.99

$

Usually ships in 2-5 days

0

92064A

Kawasaki 92064-2143

JET-PILOT,#46.3

$11.99

$

Usually ships in 2-5 days

0

99916

Kawasaki 99916-2178

KIT,JET-MAIN,#117.5,#112.5A

$

$

Not available

99916A

Kawasaki 99916-2179

KIT,JET-MAIN,#115A,#110

$31.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0635

BOLT-FLANGED,6X35
(Superseded to 130B0635)

$1.99

$

In Stock, Qty 16

0

130A

Kawasaki 130BA06110

BOLT-FLANGED,6X110
(Superseded to 130G06110)

$1.49

$

Usually ships in 2-5 days

0

172

Kawasaki 172BA06110

BOLT-STUD,6X110
(Superseded to 172G06110)

$3.99

$

Usually ships in 2-5 days

0

214

Kawasaki 214AA0414

SCREW-PAN+-,4X14
(Superseded to 211B0414A)

$0.99

$

In Stock, only 4 left!

0
