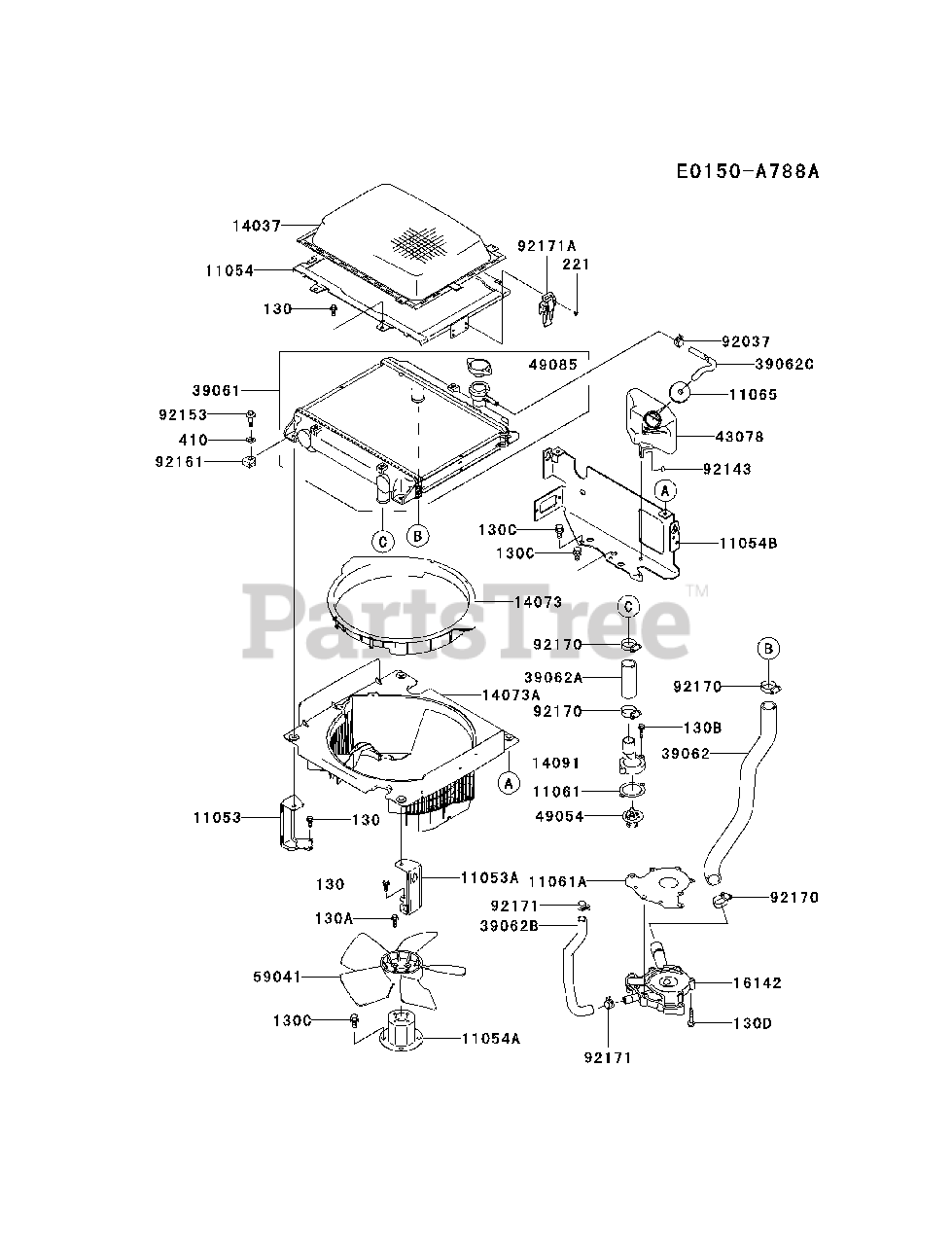

FD731V-AS06 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

COOLING-EQUIPMENT Parts Diagram

  • Title

11053

Kawasaki 11053-2076-9H

BRACKET

$23.99

$

Usually ships in 2-5 days

0

11053A

Kawasaki 11053-2077-9H

BRACKET

$29.99

$

Usually ships in 2-5 days

0

11054

Kawasaki 11054-2054-9H

BRACKET
(Superseded to 39184-2069)

$77.99

$

Usually ships in 2-5 days

0

11054A

Kawasaki 11054-2057

BRACKET
(Superseded to 11054-2061)

$19.99

$

Usually ships in 2-5 days

0

11054B

Kawasaki 11054-2062-9H

BRACKET

$60.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-2131

GASKET,THERMOSTAT

$3.49

$

In Stock, only 2 left!

0

11061A

Kawasaki 11061-2146

GASKET,COVER-PUMP

$7.49

$

In Stock, only 4 left!

0

11065

Kawasaki 11065-2110

CAP

$2.49

$

Usually ships in 2-5 days

0

14037

Kawasaki 14037-2152-9H

SCREEN

$143.99

$

In Stock, only 1 left!

0

14073

Kawasaki 14073-2079

DUCT

$34.99

$

Usually ships in 2-5 days

0

14073A

Kawasaki 14073-2092

DUCT
(Superseded to 14073-2081)

$

$

Not available

14091

Kawasaki 14091-2114

COVER

$13.99

$

Usually ships in 2-5 days

0

16142

Kawasaki 16142-2080

COVER-PUMP

$38.99

$

Usually ships in 2-5 days

0

39061

Kawasaki 39061-2070

RADIATOR-ASSY

$730.99

$

Usually ships in 2-5 days

0

39062

Kawasaki 39062-2093

HOSE-COOLING

$27.99

$

Usually ships in 2-5 days

0

39062A

Kawasaki 39062-2094

HOSE-COOLING

$5.99

$

In Stock, Qty 5

0

39062B

Kawasaki 39062-2096

HOSE-COOLING

$6.49

$

Usually ships in 2-5 days

0

39062C

Kawasaki 39062-2105

HOSE-COOLING

$9.99

$

Usually ships in 2-5 days

0

43078

Kawasaki 43078-2056

RESERVOIR

$22.99

$

In Stock, only 1 left!

0

49054

Kawasaki 49054-2053

THERMOSTAT
(Superseded to 49054-2056)

$31.99

$

Usually ships in 2-5 days

0

49085

Kawasaki 49085-2055

CAP-ASSY-PRESSURE

$23.99

$

Usually ships in 2-5 days

0

59041

Kawasaki 59041-2096

FAN

$73.99

$

Usually ships in 2-5 days

0

92037

Kawasaki 92037-2001

CLAMP

$1.49

$

In Stock, Qty 7

0

92143

Kawasaki 92143-2182

COLLAR,6.2X7.8X5

$4.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-2104

BOLT

$4.49

$

Usually ships in 2-5 days

0

92161

Kawasaki 92161-2054

DAMPER,RADIATOR,UPP

$2.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-1284

CLAMP
(Superseded to 92171-0179)

$8.99

$

In Stock, only 1 left!

0

92171

Kawasaki 92171-2056

CLAMP

$1.99

$

In Stock, only 1 left!

0

92171A

Kawasaki 92171-2079

CLAMP

$28.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130B0612

BOLT-FLANGED,6X12
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

BOLT-FLANGED,6X16
(Superseded to 130AA0616)

$0.99

$

In Stock, Qty 10

0

130B

Kawasaki 130B0625

BOLT-FLANGED,6X25
(Superseded to 130AA0625)

$0.99

$

In Stock, Qty 10

0

130C

Kawasaki 130B0816

BOLT-FLANGED,8X16
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 9

0

130D

Kawasaki 130G0635

BOLT-FLANGED,6X35
(Superseded to 130BA0635)

$1.49

$

In Stock, Qty 6

0

221

Kawasaki 221B0406

SCREW-CSK-CROS,4X6
(Superseded to 221AA0406)

$0.99

$

Usually ships in 2-5 days

0

410

Kawasaki 410B1000

W-PLAIN-S,10MM
(Superseded to 410AA1000)

$0.99

$

Usually ships in 2-5 days

0
