FD731V-CS03 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

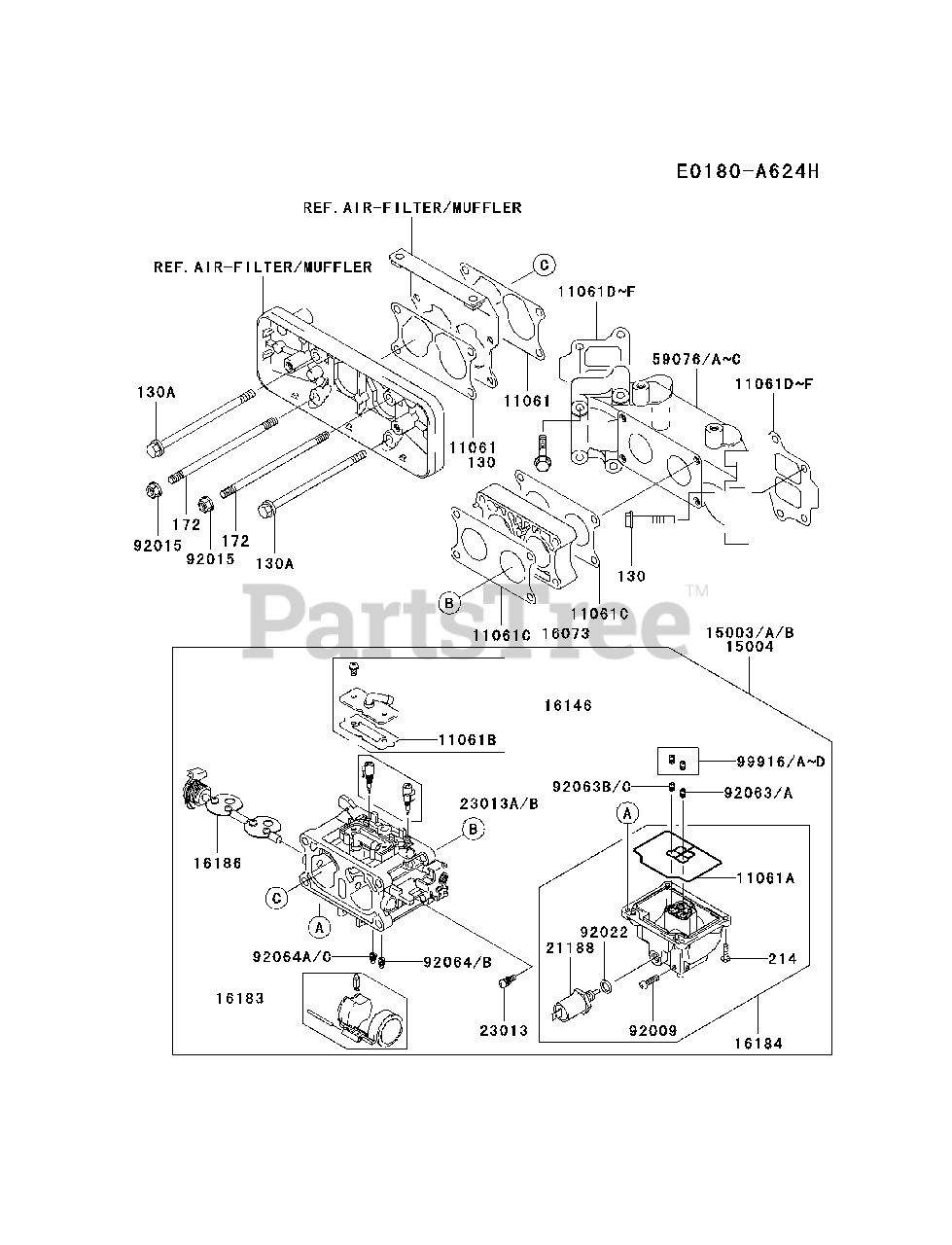

CARBURETOR Parts Diagram

  • Title

11061

Kawasaki 110612075

GASKET,PIPE-INTAKE
(Superseded to 11060-2473)

$5.49

$

In Stock, only 1 left!

0

11061A

Kawasaki 110612090

GASKET,CHAMBER

$11.99

$

In Stock, Qty 5

0

11061B

Kawasaki 110612091

GASKET,COVER

$8.99

$

In Stock, only 2 left!

0

11061C

Kawasaki 110612128

GASKET,MANIFOLD

$4.49

$

In Stock, only 4 left!

0

11061E

Kawasaki 110612155

GASKET,MANIFOLD
(Superseded to 11061-2152)

$5.49

$

Usually ships in 2-5 days

0

15004

Kawasaki 150042063

CARBURETOR-ASSY
(Superseded to 15003-2974)

$463.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 160732224

INSULATOR

$14.99

$

Usually ships in 2-5 days

0

16146

Kawasaki 161462227

COVER-ASSY

$108.99

$

Usually ships in 2-5 days

0

16183

Kawasaki 161832006

FLOAT-ASSY

$50.99

$

In Stock, only 2 left!

0

16184

Kawasaki 161842011

CHAMBER-ASSY-FLOAT

$206.99

$

Usually ships in 2-5 days

0

16186

Kawasaki 161862045

VALVE-ASSY-CHOKE

$69.99

$

Usually ships in 2-5 days

0

21188

Kawasaki 211882011

SOLENOID

$183.99

$

In Stock, only 2 left!

0

23013

Kawasaki 230132064

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

23013B

Kawasaki 230132071

SCREW-ASSY

$100.99

$

Usually ships in 2-5 days

0

59076B

Kawasaki 590762085

MANIFOLD-INTAKE

$114.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920092015

SCREW

$5.49

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, only 4 left!

0

92022

Kawasaki 920222231

WASHER

$1.99

$

In Stock, only 4 left!

0

92063A

Kawasaki 920632366

JET-MAIN,#117.5

$17.99

$

Usually ships in 2-5 days

0

92063C

Kawasaki 920632375

JET-MAIN,#112.5A

$17.99

$

Usually ships in 2-5 days

0

92064B

Kawasaki 920642149

JET-PILOT,#47.5

$11.99

$

Usually ships in 2-5 days

0

92064C

Kawasaki 920642150

JET-PILOT,#43.8

$11.99

$

Usually ships in 2-5 days

0

99916B

Kawasaki 999162179

KIT,JET-MAIN,#115A,#110

$31.99

$

Usually ships in 2-5 days

0

99916D

Kawasaki 999162187

KIT,JET-MAIN,#112.5,#107.5

$38.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130AA0635

BOLT-FLANGED,6X35
(Superseded to 130B0635)

$1.99

$

In Stock, Qty 12

0

130A

Kawasaki 130BA06110

BOLT-FLANGED,6X110
(Superseded to 130G06110)

$1.49

$

Usually ships in 2-5 days

0

172

Kawasaki 172BA06110

BOLT-STUD,6X110
(Superseded to 172G06110)

$3.99

$

Usually ships in 2-5 days

0

214

Kawasaki 214AA0414

SCREW-PAN+-,4X14
(Superseded to 211B0414A)

$0.99

$

In Stock, Qty 12

0
