FD731V-DS04 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

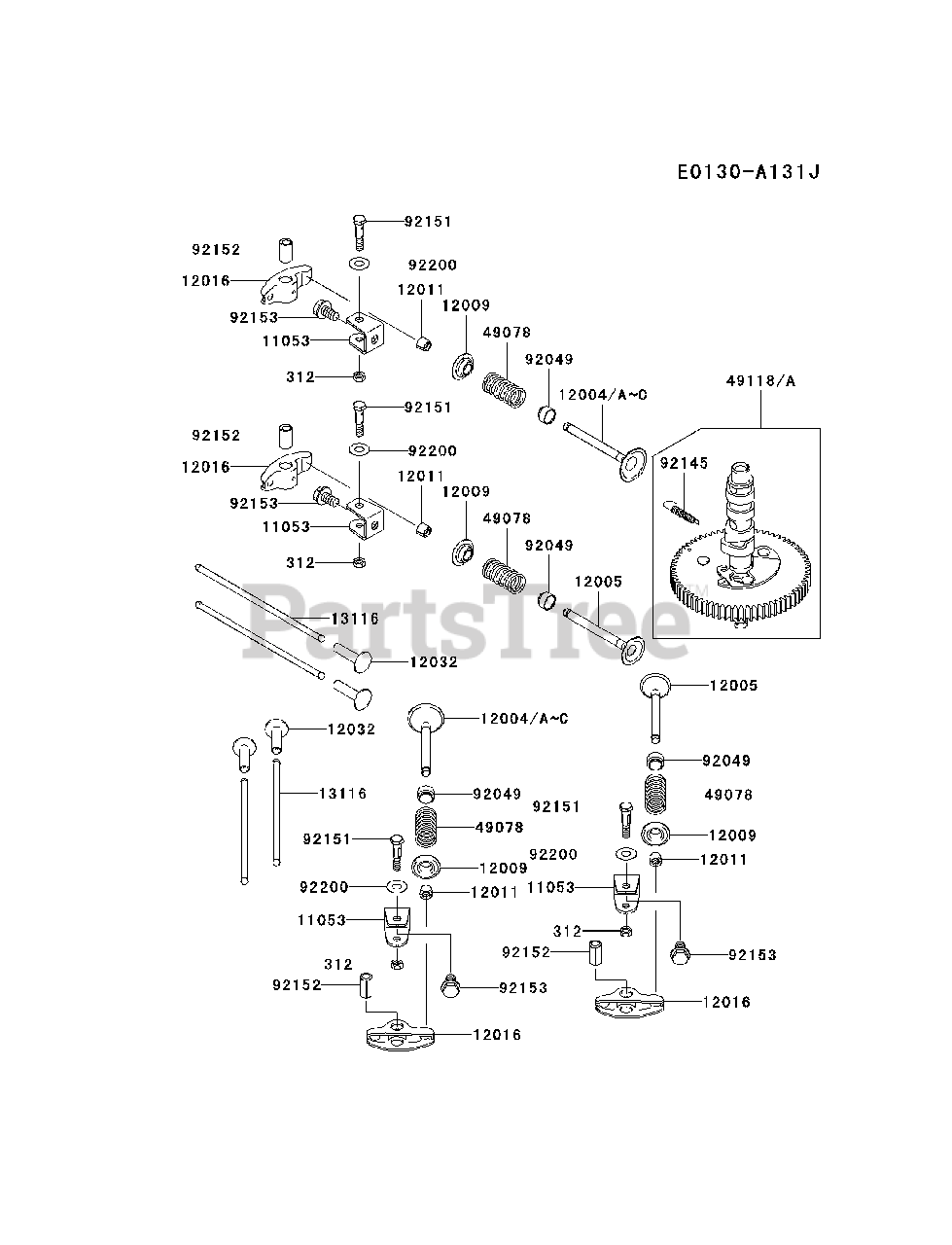

VALVE/CAMSHAFT Parts Diagram

  • Title

11053

Kawasaki 110532096

BRACKET,ARM-ROCKER

$1.99

$

Usually ships in 2-5 days

0

12004A

Kawasaki 120040711

VALVE-INTAKE
(Superseded to 12004-2117)

$31.99

$

Usually ships in 2-5 days

0

12004C

Kawasaki 12004-2117

VALVE-INTAKE
(Superseded to 12004-0711)

Note: Substitute part, supplied until the stock is exhausted.

$31.99

$

Usually ships in 2-5 days

0

12005

Kawasaki 120052103

VALVE-EXHAUST

$37.99

$

Usually ships in 2-5 days

0

12009

Kawasaki 120092060

RETAINER-VALVE SPRING

$5.99

$

In Stock, only 2 left!

0

12011

Kawasaki 120112052

COLLET

$2.99

$

In Stock, Qty 5

0

12016

Kawasaki 12016-2066

ARM-ROCKER
(Superseded to 120160040)

$13.99

$

In Stock, Qty 16

0

12032

Kawasaki 120322073

TAPPET

$10.99

$

Usually ships in 2-5 days

0

13116

Kawasaki 131162074

ROD-PUSH

$13.99

$

In Stock, only 2 left!

0

49078

Kawasaki 490782087

SPRING-ENGINE VALVE

$3.49

$

In Stock, only 2 left!

0

49118A

Kawasaki 491182157

CAMSHAFT-COMP

$160.99

$

Usually ships in 2-5 days

0

92049

Kawasaki 920492100

SEAL-OIL,VSB 7X12X5.5X9.7

$5.49

$

In Stock, Qty 10

0

92145

Kawasaki 921452131

SPRING

$1.99

$

Usually ships in 2-5 days

0

92151

Kawasaki 921512165

BOLT,M6

$3.99

$

In Stock, only 2 left!

0

92152

Kawasaki 921522077

COLLAR

$2.49

$

In Stock, Qty 6

0

92153

Kawasaki 921532062

BOLT,8X14

$1.99

$

In Stock, only 1 left!

0

92200

Kawasaki 922002151

WASHER,8.1X18X0.5

$1.49

$

Usually ships in 2-5 days

0

312

Kawasaki 312AA0600

NUT-HEX,6MM
(Superseded to 43032-002)

$0.99

$

In Stock, Qty 20+

0
