FD731V-HS00 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

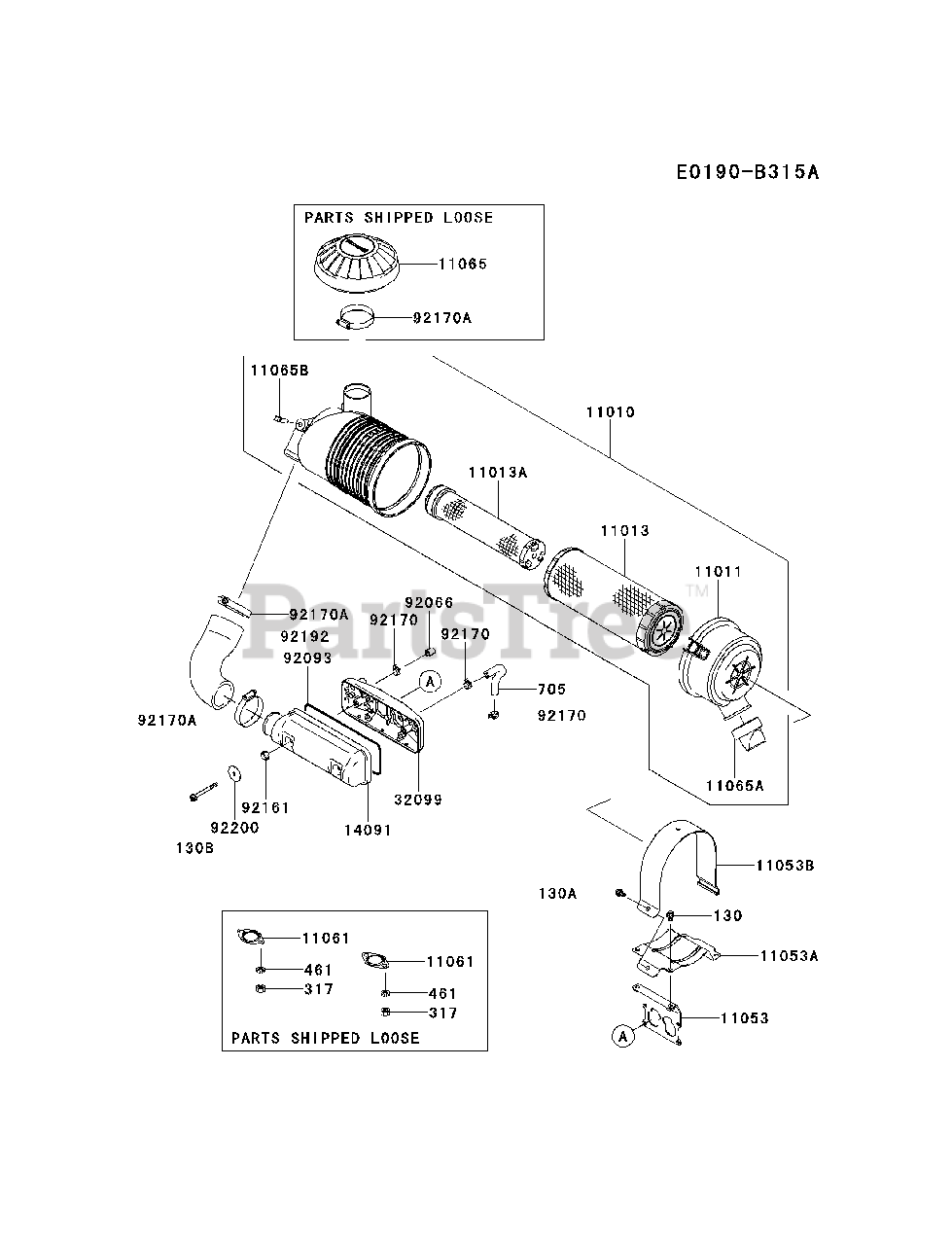

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-2590

FILTER-ASSY-AIR

$

$

Not available

11011

Kawasaki 11011-7056

CASE-AIR FILTER

$46.99

$

In Stock, Qty 6

0

11013

Kawasaki 11013-7044

ELEMENT-AIR FILTER

$27.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7045

ELEMENT-AIR FILTER

$27.99

$

In Stock, Qty 20+

0

11053

Kawasaki 11053-2088

BRACKET

$9.99

$

Usually ships in 2-5 days

0

11053A

Kawasaki 11053-2089

BRACKET

$13.99

$

In Stock, only 1 left!

0

11053B

Kawasaki 11053-2090

BRACKET

$8.49

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-2126

GASKET,MUFFLER

$3.49

$

In Stock, only 4 left!

0

11065

Kawasaki 11065-7025

CAP
(Superseded to 11065-1384)

$41.99

$

In Stock, Qty 20+

0

11065A

Kawasaki 11065-7031

CAP

$13.99

$

Usually ships in 2-5 days

0

11065B

Kawasaki 11065-7032

CAP

$4.49

$

In Stock, only 4 left!

0

14091

Kawasaki 14091-2106

COVER

$43.99

$

Usually ships in 2-5 days

0

32099

Kawasaki 32099-6006

CASE

$56.99

$

Usually ships in 2-5 days

0

92066

Kawasaki 92066-2096

PLUG

$1.99

$

In Stock, only 3 left!

0

92093

Kawasaki 92093-2115

SEAL

$3.99

$

In Stock, Qty 5

0

92161

Kawasaki 92161-2058

DAMPER

$2.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2043

CLAMP

$1.49

$

In Stock, Qty 20+

0

92170A

Kawasaki 92170-2075

CLAMP

$10.99

$

Usually ships in 2-5 days

0

92192

Kawasaki 92192-2072

TUBE,CASE-FILTER

$27.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2144

WASHER

$2.49

$

In Stock, Qty 9

0

130

Kawasaki 130AA0612

BOLT-FLANGED,6X12
(Superseded to 130B0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130AA0616

BOLT-FLANGED,6X16
(Superseded to 130B0616)

$0.99

$

In Stock, Qty 10

0

130B

Kawasaki 130BA0660

BOLT-FLANGED,6X60
(Superseded to 130G0660)

$4.99

$

Usually ships in 2-5 days

0

317

Kawasaki 317R0800

NUT-HEX-SMALL,8MM
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 20+

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0

705

Kawasaki 705A061000

TUBE-BRAID
(Superseded to 92191-2037)

$28.99

$

In Stock, only 4 left!

0
