FD750D-AS01 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

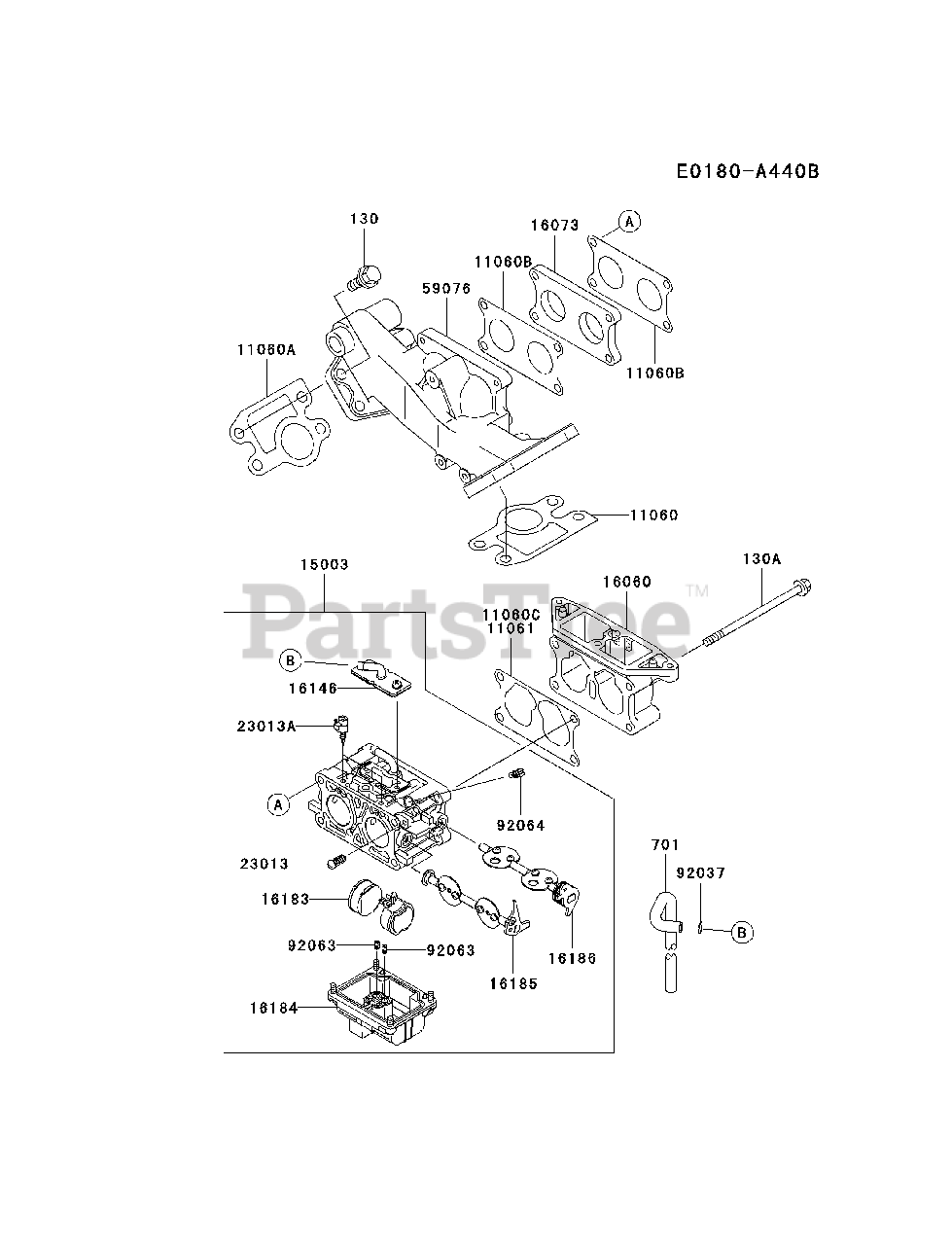

CARBURETOR Parts Diagram

  • Title

11060

Kawasaki 110602468

GASKET,INTAKE MANIFOLD

$7.49

$

In Stock, Qty 20+

0

11060A

Kawasaki 110602469

GASKET,INTAKE MANIFOLD

$5.99

$

In Stock, Qty 20+

0

11060B

Kawasaki 110602471

GASKET,INTAKE PIPE

$5.99

$

In Stock, Qty 20+

0

11060C

Kawasaki 11060-2473

GASKET,CARBURETOR
(Superseded to 11061-2075)

Note: Substitute part, supplied until the stock is exhausted.

$5.99

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-2063

GASKET
(Superseded to 11061-2075)

$5.99

$

In Stock, Qty 20+

0

15003

Kawasaki 15003-2781

CARBURETOR-ASSY
(Superseded to 15003-2795)

$

$

Not available

16060

Kawasaki 160602194

PIPE-INTAKE

$47.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 160732206

INSULATOR

$15.99

$

In Stock, only 2 left!

0

16146

Kawasaki 161462227

COVER-ASSY

$119.99

$

Usually ships in 2-5 days

0

16183

Kawasaki 161832006

FLOAT-ASSY

$50.99

$

In Stock, Qty 6

0

16184

Kawasaki 161842007

CHAMBER-ASSY-FLOAT
(Superseded to 16184-2004)

$225.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 16185-2039

VALVE-ASSY-THROTTLE

$

$

Not available

16186

Kawasaki 161862036

VALVE-ASSY-CHOKE

$55.99

$

Usually ships in 2-5 days

0

23013

Kawasaki 23013-2059

SCREW-ASSY

$

$

Not available

23013A

Kawasaki 230132060

SCREW-ASSY

$40.99

$

Usually ships in 2-5 days

0

59076

Kawasaki 590762065

MANIFOLD-INTAKE

$207.99

$

In Stock, only 1 left!

0

92037

Kawasaki 920371610

CLAMP

$2.49

$

In Stock, only 1 left!

0

92063

Kawasaki 920632410

JET-MAIN,#105

$11.99

$

In Stock, only 1 left!

0

92064

Kawasaki 920642113

JET-PILOT,#40

$12.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130G0825

BOLT-FLANGED
(Superseded to 130BA0825)

$5.99

$

In Stock, only 1 left!

0

130A

Kawasaki 130T06110

BOLT-FLANGED
(Superseded to 130CA06110)

$2.99

$

In Stock, Qty 17

0

701

Kawasaki 701Q061000

TUBE-PVC

$5.99

$

In Stock, Qty 8

0
