FD750D-AS05 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

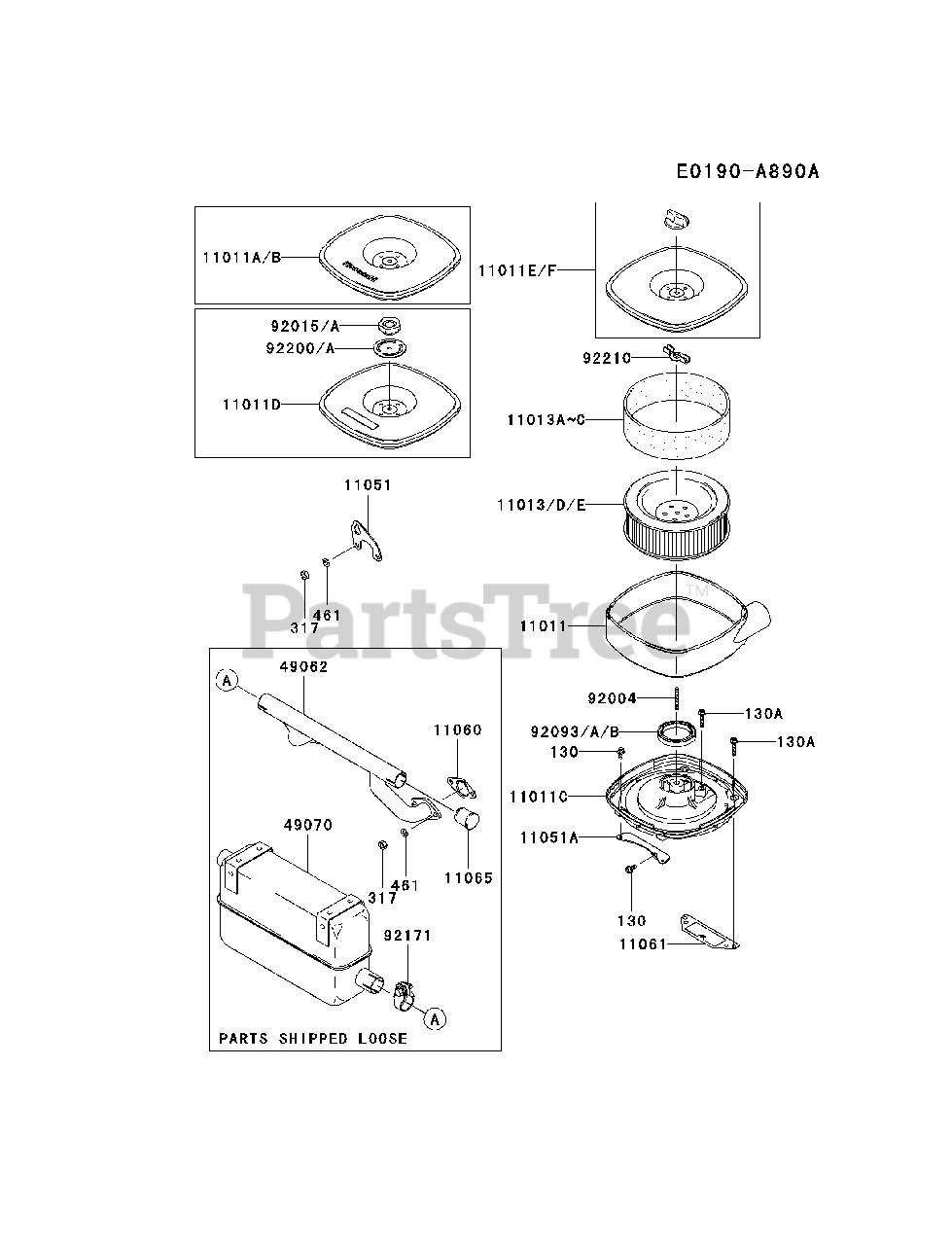

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 11011-2314

CASE-AIR FILTER,BODY

$38.99

$

In Stock, only 2 left!

0

11011A

Kawasaki 11011-2315

CASE-AIR FILTER,UPPER
(Superseded to 11011-2356)

$40.99

$

In Stock, only 1 left!

0

11011C

Kawasaki 11011-2333

CASE-AIR FILTER,LOWER
(Superseded to 11011-2316)

$64.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-2195

ELEMENT-AIR FILTER
(Superseded to 11013-2213)

$65.99

$

In Stock, only 2 left!

0

11013A

Kawasaki 11013-2196

ELEMENT-AIR FILTER
(Superseded to 11013-2199)

$

$

Not available

11013C

Kawasaki 11013-2199

ELEMENT-AIR FILTER
(Superseded to 11013-2194)

$

$

Not available

11013E

Kawasaki 11013-2213

ELEMENT-AIR FILTER
(Superseded to 11013-2186)

$65.99

$

In Stock, only 2 left!

0

11051

Kawasaki 11051-2088

BRACKET

$8.99

$

Usually ships in 2-5 days

0

11051A

Kawasaki 11051-2089

BRACKET,AIR FILTER

$9.49

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-2467

GASKET,MUFFLER

$6.49

$

In Stock, Qty 12

0

11061

Kawasaki 11061-2085

GASKET
(Superseded to 11060-2474)

$5.49

$

In Stock, only 3 left!

0

11065

Kawasaki 11065-2098

CAP

$17.99

$

Usually ships in 2-5 days

0

49062

Kawasaki 49062-2063-9Y

PIPE-COMP-EXHAUST

$296.99

$

Usually ships in 2-5 days

0

49070

Kawasaki 49070-2639-9Y

MUFFLER-COMP
(Superseded to 49070-2639)

$354.99

$

Usually ships in 2-5 days

0

92004

Kawasaki 92004-2152

STUD,6X30

$3.99

$

In Stock, only 1 left!

0

92015

Kawasaki 92015-2138

NUT

$

$

Not available

92093

Kawasaki 92093-2120

SEAL
(Superseded to 92093-2123)

$10.99

$

In Stock, only 2 left!

0

92093B

Kawasaki 92093-2123

SEAL

$10.99

$

In Stock, only 2 left!

0

92171

Kawasaki 92171-2063-9Y

CLAMP

$15.99

$

In Stock, only 4 left!

0

92200

Kawasaki 92200-2136

WASHER

$

$

Not available

92210

Kawasaki 92210-2079

NUT,M6

$2.49

$

In Stock, only 1 left!

0

130

Kawasaki 130BA0614

BOLT-FLANGED,6X14
(Superseded to 92001-1627)

$3.99

$

In Stock, Qty 6

0

130A

Kawasaki 130BA0630

BOLT-FLANGED,6X30
(Superseded to 130B0630)

$1.99

$

In Stock, Qty 6

0

317

Kawasaki 317R0800

NUT-HEX-SMALL,8MM
(Superseded to 92210-0887)

$2.99

$

Usually ships in 2-5 days

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 11

0
