FD750D-DS08 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

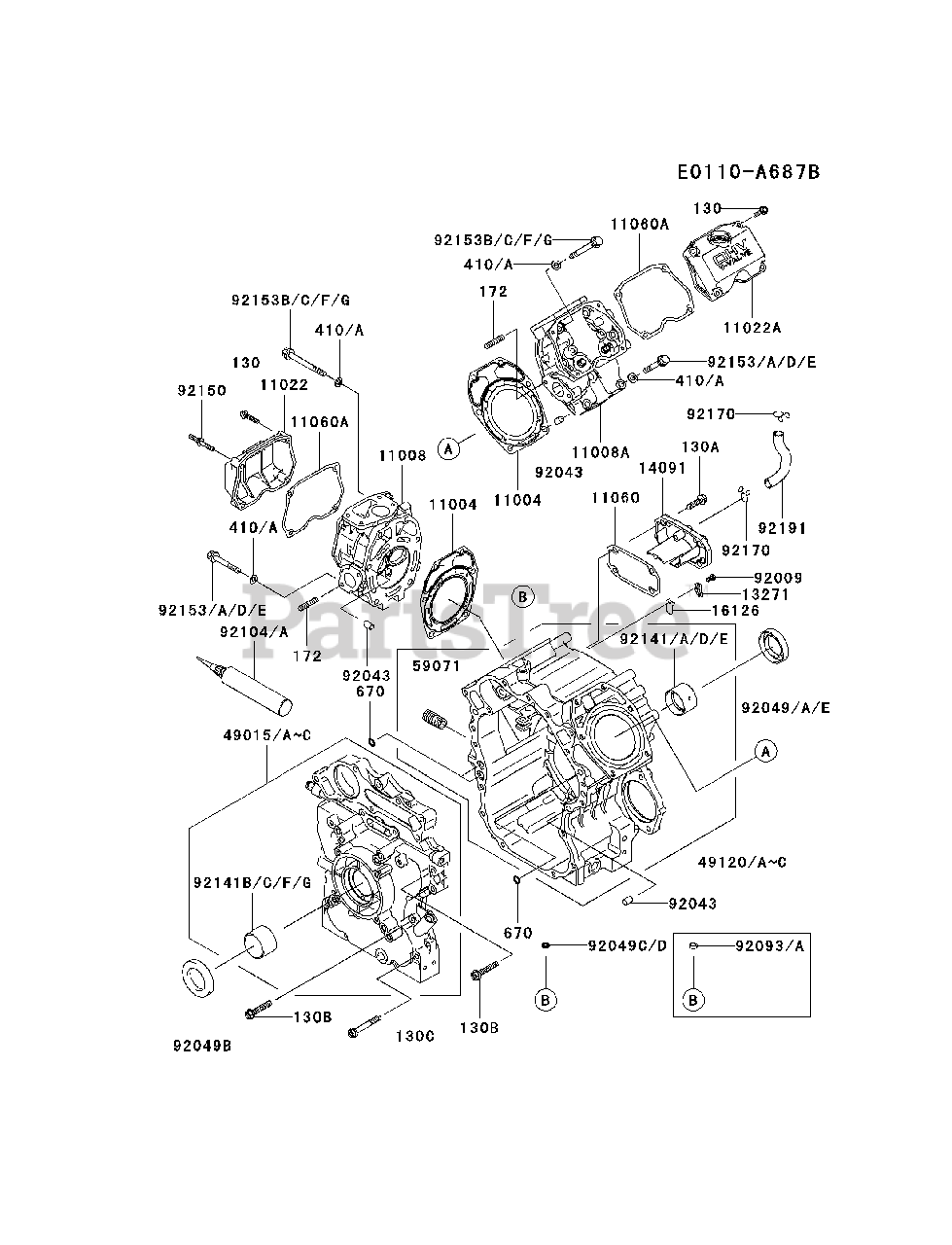

CYLINDER/CRANKCASE Parts Diagram

  • Title

11004

Kawasaki 110042142

GASKET-HEAD

$58.99

$

In Stock, Qty 11

0

11008

Kawasaki 11008-2145

HEAD-COMP-CYLINDER
(Superseded to 11008-0823)

$333.99

$

Usually ships in 2-5 days

0

11008A

Kawasaki 11008-2146

HEAD-COMP-CYLINDER
(Superseded to 11008-0824)

$334.99

$

Usually ships in 2-5 days

0

11022

Kawasaki 110222072

CASE-ROCKER

$50.99

$

Usually ships in 2-5 days

0

11022A

Kawasaki 110222073

CASE-ROCKER

$59.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 110602466

GASKET,BREATH

$6.99

$

In Stock, only 4 left!

0

11060A

Kawasaki 110602470

GASKET,ROCKER CASE

$6.49

$

In Stock, Qty 11

0

13271

Kawasaki 132712105

PLATE

$1.49

$

In Stock, only 4 left!

0

14091

Kawasaki 140912064

COVER,BREATH

$22.99

$

Usually ships in 2-5 days

0

16126

Kawasaki 161262225

VALVE,BREATH

$1.49

$

In Stock, Qty 8

0

49015A

Kawasaki 49015-6232

COVER-CRANKCASE
(Superseded to 49015-6292)

Note: Substitute part, supplied until the stock is exhausted.

$476.99

$

Usually ships in 2-5 days

0

49015C

Kawasaki 49015-6292

COVER-CRANKCASE
(Superseded to 49015-6325)

$476.99

$

Usually ships in 2-5 days

0

49120A

Kawasaki 49120-6134

CRANKCASE-COMP
(Superseded to 49120-6180)

Note: Substitute part, supplied until the stock is exhausted.

$

$

Not available

49120C

Kawasaki 49120-6180

CRANKCASE-COMP
(Superseded to 49120-6134)

$

$

Not available

59071

Kawasaki 590712079

JOINT

$6.49

$

In Stock, only 2 left!

0

92009

Kawasaki 920092308

SCREW

$0.99

$

In Stock, only 2 left!

0

92043

Kawasaki 920431037

PIN

$0.99

$

In Stock, only 3 left!

0

92049A

Kawasaki 920492242

SEAL-OIL,ISD 38X58X11 AE

Note: Substitute part, supplied until the stock is exhausted.

$14.99

$

In Stock, only 2 left!

0

92049B

Kawasaki 920492243

SEAL-OIL,ISD 42X65X9 AE

$15.99

$

In Stock, only 2 left!

0

92049C

Kawasaki 920492255

SEAL-OIL,VC 8X12X2.5

$3.49

$

In Stock, only 4 left!

0

92049E

Kawasaki 92049-2286

SEAL-OIL
(Superseded to 92049-2242)

$14.99

$

In Stock, only 2 left!

0

92104A

Kawasaki 921042068

GASKET-LIQUID,TB1207B

$76.99

$

Usually ships in 2-5 days

0

92141A

Kawasaki 92141-2118

BEARING-PLANE
(Superseded to 92141-2123)

Note: Substitute part, supplied until the stock is exhausted.

$25.99

$

In Stock, only 1 left!

0

92141C

Kawasaki 92141-2119

BEARING-PLANE
(Superseded to 92141-2124)

Note: Substitute part, supplied until the stock is exhausted.

$25.99

$

In Stock, only 1 left!

0

92141E

Kawasaki 921412123

BEARING-PLANE

$25.99

$

In Stock, only 1 left!

0

92141G

Kawasaki 921412124

BEARING-PLANE

$25.99

$

In Stock, only 1 left!

0

92150

Kawasaki 921502261

BOLT

$6.99

$

Usually ships in 2-5 days

0
