FD750D-DS09 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

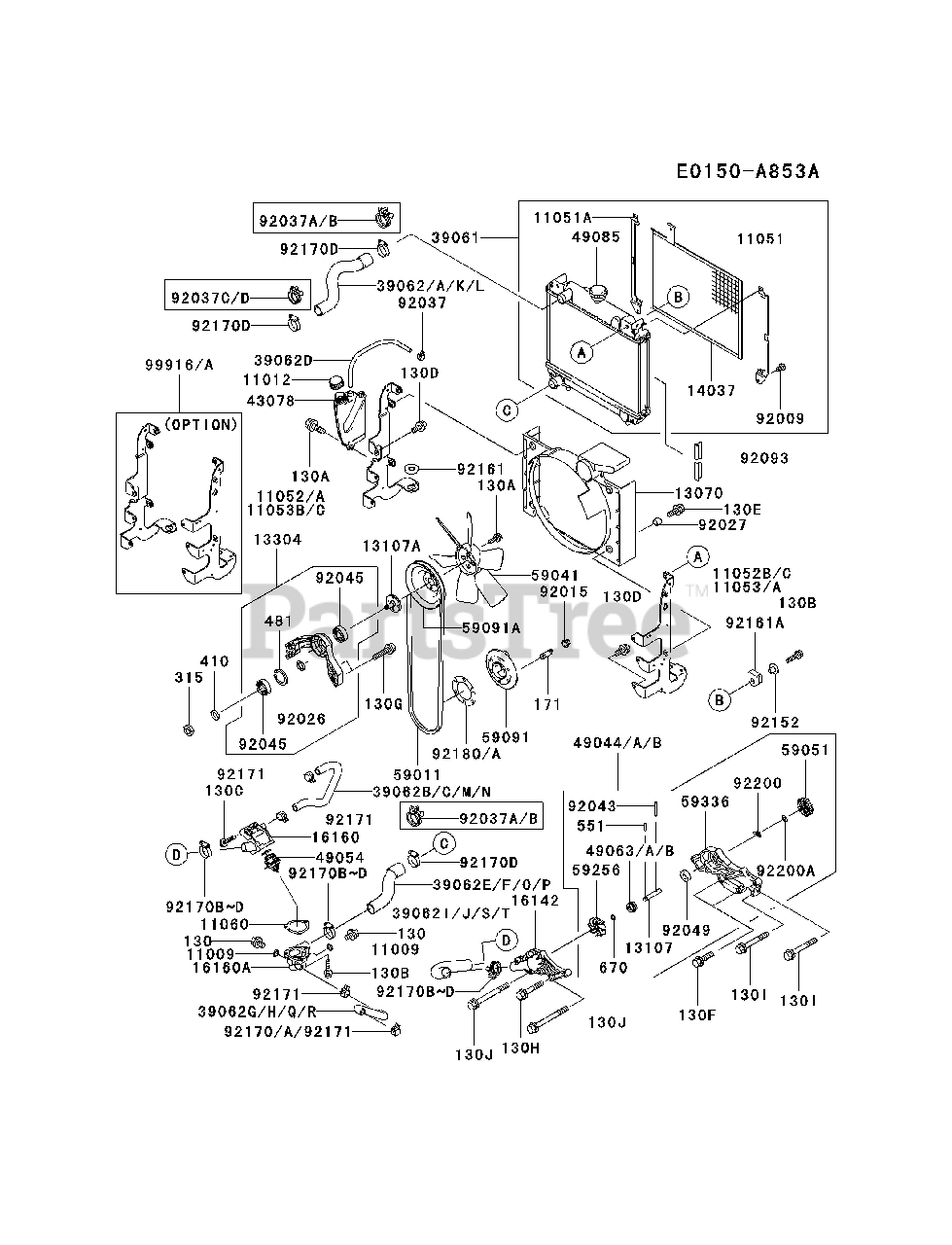

COOLING-EQUIPMENT Parts Diagram

  • Title

39062O

Kawasaki 390622099

HOSE-COOLING
(Superseded to 39062-2087)

$17.99

$

In Stock, only 2 left!

0

39062Q

Kawasaki 390622100

HOSE-COOLING
(Superseded to 39062-2088)

$17.99

$

In Stock, only 2 left!

0

39062S

Kawasaki 390622101

HOSE-COOLING
(Superseded to 39062-2089)

$18.99

$

In Stock, only 2 left!

0

43078

Kawasaki 430782055

RESERVOIR

$47.99

$

In Stock, only 2 left!

0

49044A

Kawasaki 490442067

PUMP-WATER
(Superseded to 49044-2063)

$261.99

$

In Stock, Qty 5

0

49054

Kawasaki 490542058

THERMOSTAT

$58.99

$

In Stock, only 1 left!

0

49063A

Kawasaki 49063-1056

SEAL-MECHANICAL
(Superseded to 49063-1054)

$

$

Not available

49085

Kawasaki 490852052

CAP-ASSY-PRESSURE

$23.99

$

In Stock, only 2 left!

0

59011

Kawasaki 590112056

BELT,FAN

$26.99

$

In Stock, only 2 left!

0

59041

Kawasaki 590412092

FAN

$66.99

$

In Stock, only 1 left!

0

59051

Kawasaki 590512355

GEAR-SPUR,25T

$9.49

$

In Stock, only 2 left!

0

59091

Kawasaki 590912053

PULLEY
(Superseded to 59091-2053-9H)

$69.99

$

Usually ships in 2-5 days

0

59091A

Kawasaki 5909120559H

PULLEY

$

$

Currently unavailable

59256

Kawasaki 592562069

IMPELLER

$21.99

$

In Stock, only 2 left!

0

59336

Kawasaki 593362078

CASE-PUMP

$126.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 920092460

SCREW

$0.99

$

In Stock, only 1 left!

0

92015

Kawasaki 920151143

NUT

$0.99

$

In Stock, Qty 5

0

92026

Kawasaki 920262311

SPACER,12X18X1.4

$0.99

$

In Stock, only 1 left!

0

92027

Kawasaki 920271568

COLLAR,8.3X11.5X9

$1.99

$

In Stock, only 4 left!

0

92037

Kawasaki 920372001

CLAMP

$1.49

$

In Stock, only 2 left!

0

92043

Kawasaki 920432237

PIN

$0.99

$

In Stock, Qty 5

0

92045

Kawasaki 920452191

BEARING-BALL,6001DDUC3

$16.99

$

Usually ships in 2-5 days

0

92049

Kawasaki 920492111

SEAL-OIL

$4.49

$

In Stock, Qty 6

0

92093

Kawasaki 920932114

SEAL

$5.99

$

Usually ships in 2-5 days

0

92152

Kawasaki 921522075

COLLAR

$4.49

$

In Stock, only 2 left!

0

92161

Kawasaki 921612053

DAMPER,RADIATOR,LWR

$4.49

$

In Stock, only 2 left!

0
